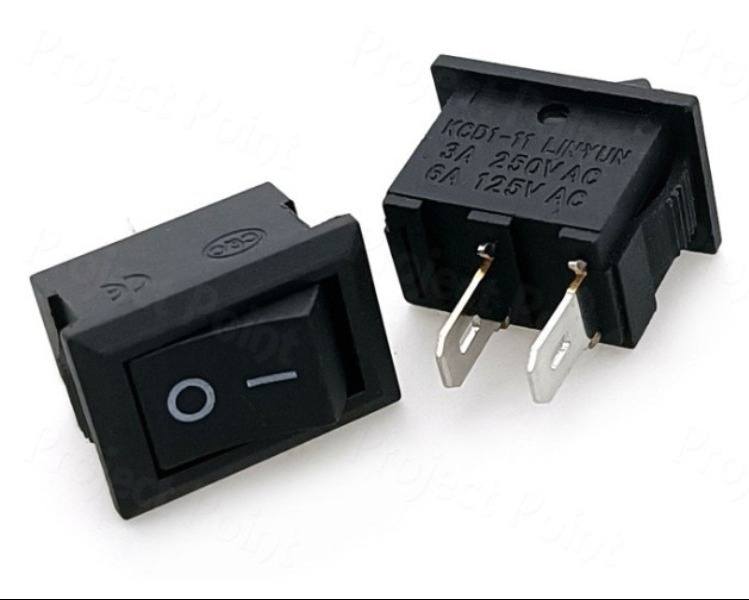

The switch shown in the image is a KCD1-101 Mini Rocker Switch, a 2-pin, SPST ON/OFF, non-illuminated panel-mount rocker switch commonly used in electrical and electronic equipment. The body marking in your image indicates 3A 250VAC / 6A 125VAC. Technical Specifications Parameter Specification Product Name Mini Rocker Switch Model KCD1-101 Switch Type Rocker Switch Operation ON / OFF Contact Configuration SPST (Single Pole Single Throw) Number of Pins 2 Pin Illumination Non-Illuminated Rated Current 3A @ 250VAC, 6A @ 125VAC (as marked on the switch) Rated Voltage 125VAC / 250VAC Contact Resistance ≤30 mΩ Insulation Resistance ≥100 MΩ at 500VDC Dielectric Strength 1500VAC for 1 minute Electrical Life ≥10, 000 switching cycles Mechanical Life Up to 100, 000 operations (typical) Contact Material Silver Alloy Terminal Material Tin-plated Brass/Copper Housing Material Flame-retardant Nylon PA66 Actuator Material Nylon / Polyamide Operating Temperature -25°C to +85°C Mounting Type Snap-in Panel Mount Panel Cut-out Approximately 19.2 × 13 mm Overall Size Approximately 21 × 15 mm Terminal Width 4.8 mm Quick Connect Protection Rating IP40 (typical) Color Black Dimensions (Approx.) Dimension Size Overall Length 21 mm Overall Width 15 mm Overall Height 24 mm Panel Cut-out 19.2 × 13 mm Terminal Width 4.8 mm Terminal Configuration ON ┌─────────┐ │ I O │ └─────────┘ Pin 1 ───── Input (Live) Pin 2 ───── Output (Load) Features Compact rectangular design SPST ON/OFF switching Snap-in panel installation Silver alloy contacts for reliable conductivity Low contact resistance Long mechanical and electrical life Durable flame-retardant housing Easy 2-pin wiring Applications Power supplies Home appliances Battery chargers UPS systems Industrial control panels Electronic equipment Audio amplifiers Instrumentation DIY electronics Small machinery Package Includes 1 × KCD1-101 Mini Rocker Switch (2-Pin, Non-Illuminated) SEO Product Title KCD1-101 Mini Rocker Switch 2 Pin SPST ON/OFF Non-Illuminated 3A 250VAC 6A 125VAC Panel Mount Rectangular Switch | Switch Mart India
