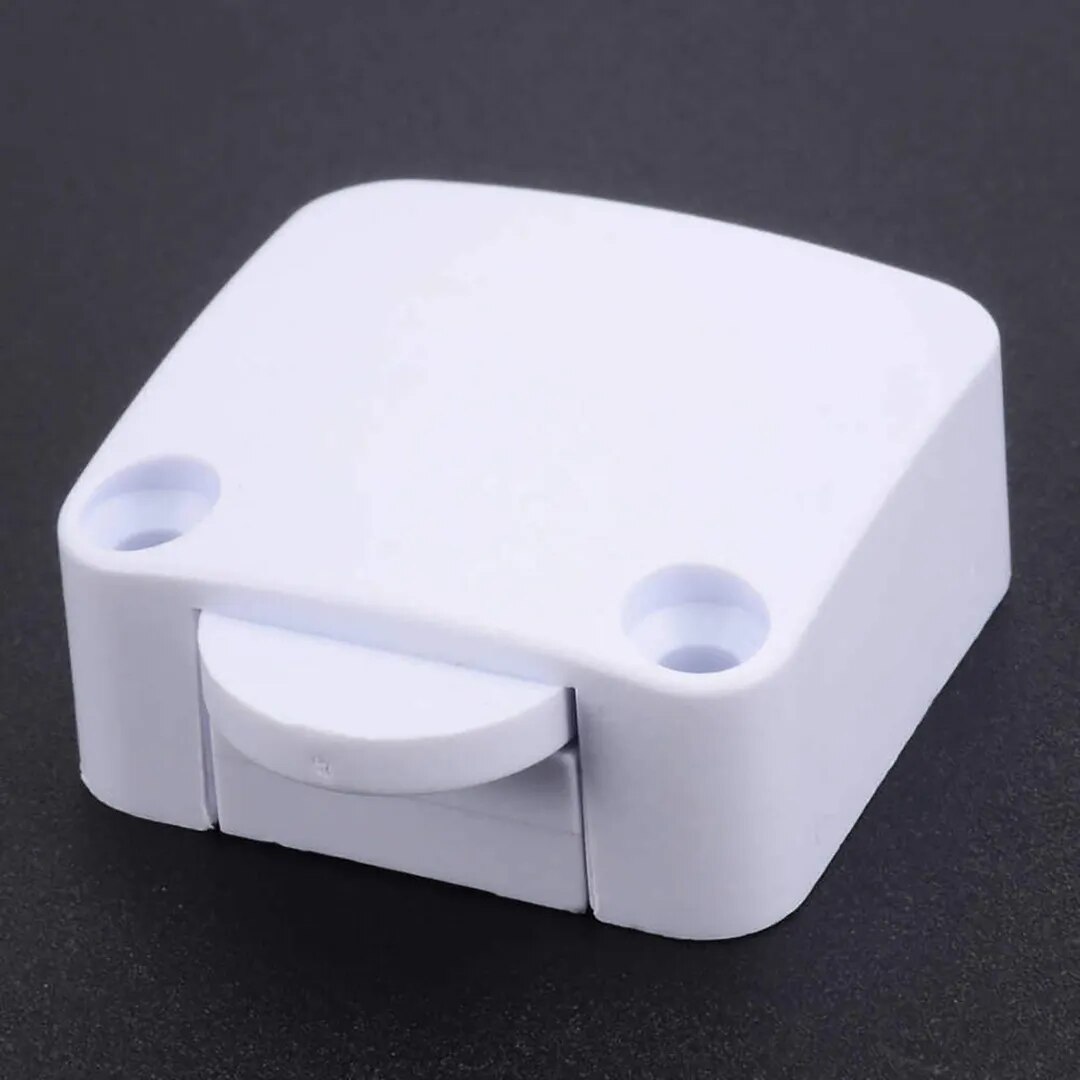

WDS DOOR SWITCH

Type: Mechanical Door Switch (Push-to-OFF / Release-to-ON)

Mounting: Surface mount with screw holes

Operation:

Door Closed → Switch pressed → OFF

Door Open → Switch released → ON

Application: Wardrobe, cabinet, cupboard, refrigerator light control

A door switch is an electromechanical device that opens or closes a circuit when a door moves, enabling automatic control of lights or devices.

⚡ Electrical Characteristics

Rated Voltage: 125V / 250V AC

Rated Current: 2A – 6A (typical)

Contact Type: SPST (NO or NC depending on model)

Contact Resistance: ≤ 50 mΩ

Insulation Resistance: ≥ 100 MΩ

Typical models support 2.5A–6A at 125/250VAC, depending on design.

📏 Mechanical Specifications

Mounting Type: Surface mount (2 screw fixing)

Actuator Type: Push plunger / lever

Operation Force: ~150–400 gf

Size: Compact (approx. 40–60 mm body size)

Switching Life: 10,000 – 50,000 cycles
