PDS DOOR SWITCH

Type: Plunger / Push Door Switch

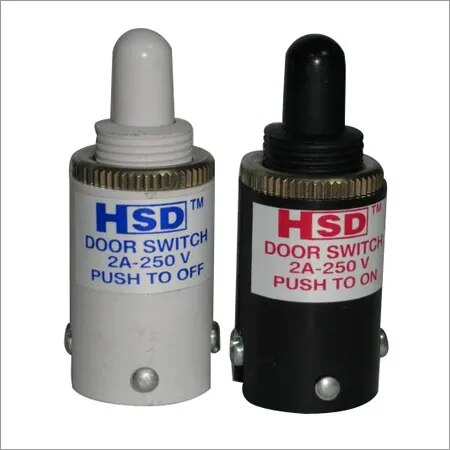

Brand Type: HSD (or similar generic)

Operation:

Push to OFF (Normally Closed) – White model

Push to ON (Normally Open) – Black model

Mounting: Panel mount (threaded body with nut)

Application: Cabinet, refrigerator, wardrobe, enclosure lighting

These switches automatically control circuits based on door position—light ON when door opens and OFF when closed.

⚡ Electrical Characteristics

Rated Voltage: 125V / 250V AC

Rated Current: 2A

Contact Type: SPST (NO / NC variants)

Contact Resistance: Low (≤ 50 mΩ typical)

Insulation Resistance: ≥ 100 MΩ

Typical door switches are designed for AC 220–250V operation with 2A load capacity, suitable for lighting circuits.

📏 Mechanical Specifications

Mounting Hole: ~12mm – 16mm (panel cutout)

Operation Type: Momentary push button

Terminals: 2 Pin (solder / wire connection)

Actuator: Spring-loaded plunger

Life Cycle: 10,000+ operations
