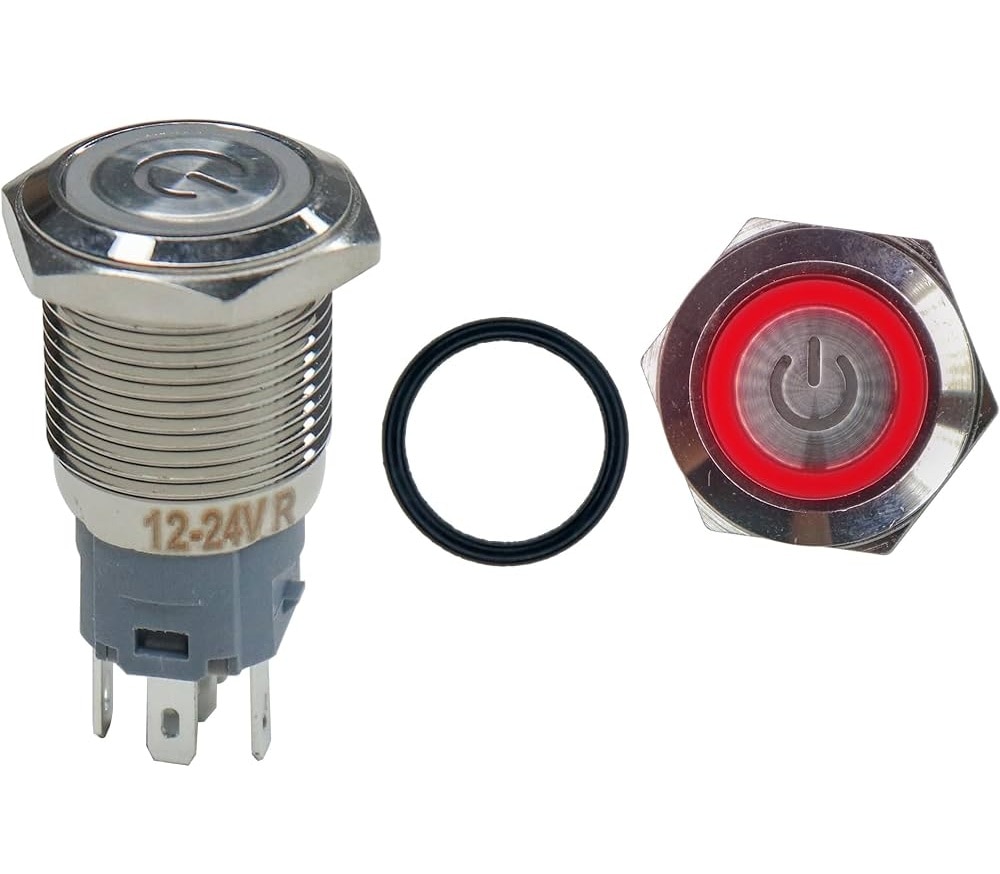

16MM METAL PUSH SWITCH ILLUMINITED
In stock
Description
Product Type: Illuminated Metal Push Button Switch (Anti-vandal)
Mounting Size: 16mm panel cut-out
Operation Type:
Latching (Push ON / Push OFF)
Momentary (optional variant)
Symbol: Power logo with LED ring
Mounting Type: Panel mount (threaded body with nut)
2. Electrical Specifications
Rated Voltage:
Switch: Up to 250V AC
LED: 12V – 24V DC
Rated Current: 2A – 5A (typical range)
Load Rating: ~3A @ 220V AC
Contact Type: SPDT (1NO + 1NC)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
3. LED Specifications
LED Type: Ring illumination with power symbol
LED Color: Red (as shown in image)
LED Voltage: 12–24V DC
LED Life: ≥ 50,000 hours
LED Pins: Separate 2 pins for independent control
