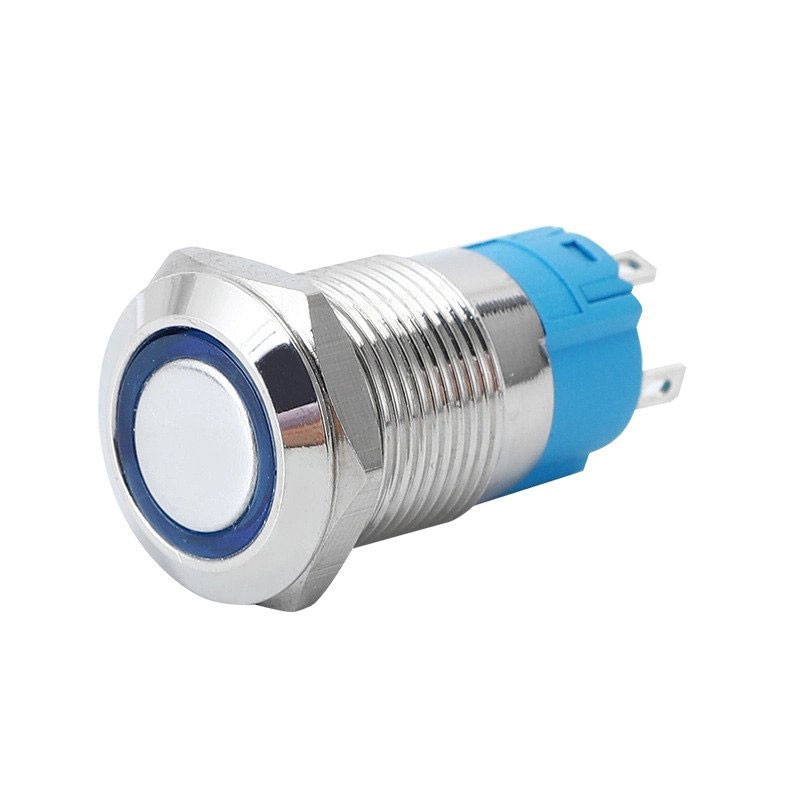

12MM METAL PUSH SWITCH
Description
1. General Information
Product Type: Metal Push Button Switch (Anti-vandal)
Mounting Size: 12mm panel cut-out
Operation Type:
Momentary (self-reset)
Latching (self-lock) – optional variant
Head Type: Flat head with LED ring
Mounting: Threaded body with nut
2. Electrical Specifications
Rated Voltage:
Switch: Up to 250V AC / 36V DC
Rated Current:
2A – 3A (typical load range)
Contact Type: SPDT / SPST (model dependent)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
3. LED Specifications
LED Type: Ring illumination
LED Color: Blue (as shown)
LED Voltage:
3V / 6V / 12V / 24V variants available
LED Current: ≤ 20mA
LED Life: ≥ 50,000 hours
LED Pins: Separate 2 terminals
4. Mechanical Specifications
Mechanical Life: ≥ 50,000 cycles
Electrical Life: ≥ 50,000 cycles
Operation Force: ~2.5N – 4N
Travel Distance: 2–3 mm
Thread Pitch: ~1mm
5. Material Details
Body Material: Stainless steel / Nickel plated brass
Contact Material: Copper alloy (silver plated)
Insulation Material: Engineering plastic (PA66)
Sealing Ring: Rubber gasket (included)
6. Protection & Safety
IP Rating: IP65 – IP66 (waterproof & dustproof)
Impact Resistance: IK08 (anti-vandal type)
Certifications: CE, RoHS (varies by model)
7. Temperature Range
Operating Temperature: -25°C to +85°C
Storage Temperature: -40°C to +85°C
8. Terminal Configuration
3 Pin (SPST):
C (Common), NO
5 Pin (SPDT + LED):
C, NO, NC + LED (+ / –)
9. Key Features
✔ Compact 12mm size (space-saving)
✔ LED ring for clear ON/OFF indication
✔ Waterproof metal body
✔ Long mechanical life
✔ Anti-vandal & rust-resistant
✔ Easy panel installation
10. Applications
Control panels
Automotive dashboards
UPS / inverter systems
Industrial machines
DIY electronics
Power ON/OFF switches
✅ Summary
This 12MM metal push button switch with blue LED ring is a compact, durable, and waterproof (IP65+) switch designed for panel mounting applications. It supports 2–3A load, multiple LED voltages, and both momentary & latching options, making it ideal for industrial, automotive, and electronic control systems.
