USB

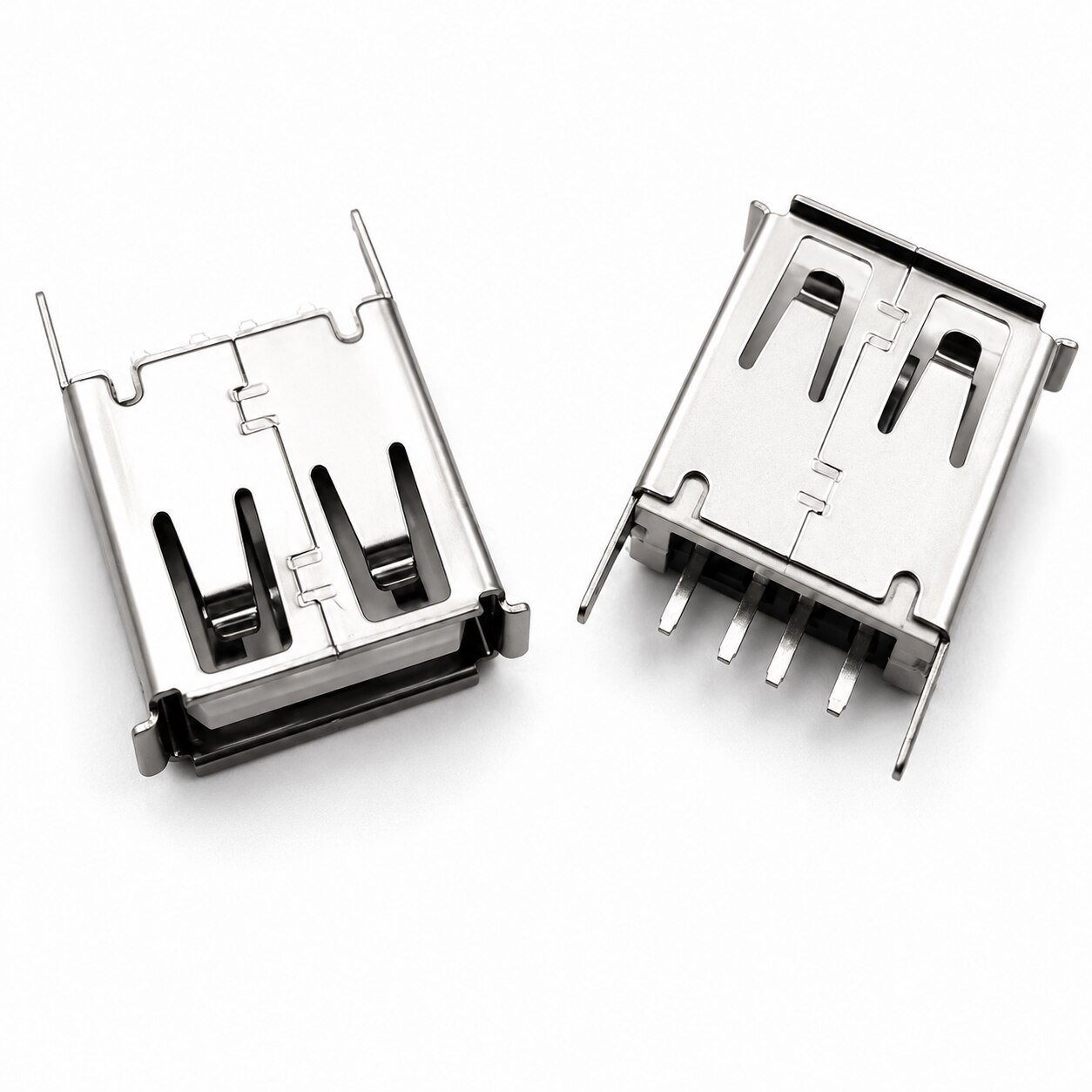

Product Type: USB Type-A Female Socket

Connector Gender: Female

Mounting Type: PCB Through-Hole Mount

Orientation: Vertical / Right Angle (depending on PCB design)

Interface Standard: USB 2.0

⚙️ Electrical Specifications

Rated Voltage: 30V AC (Max)

Rated Current: 1.5A

Contact Resistance: ≤ 30mΩ

Insulation Resistance: ≥ 1000MΩ at 500V DC

Dielectric Withstand Voltage: 500V AC for 1 minute

🔩 Mechanical Specifications

Insertion Force: 3.57kgf max

Withdrawal Force: 1.0kgf min

Mating Cycles: ≥ 1,500 cycles

Terminal Type: Through-hole solder pins

Shield Type: Metal shell shielding

🧱 Material Details

Housing Material: High-temperature thermoplastic

Contact Material: Copper alloy

Contact Plating: Nickel / Tin plated

Shell Material: Stainless steel / Nickel plated steel

📏 Physical Dimensions (Approx.)
