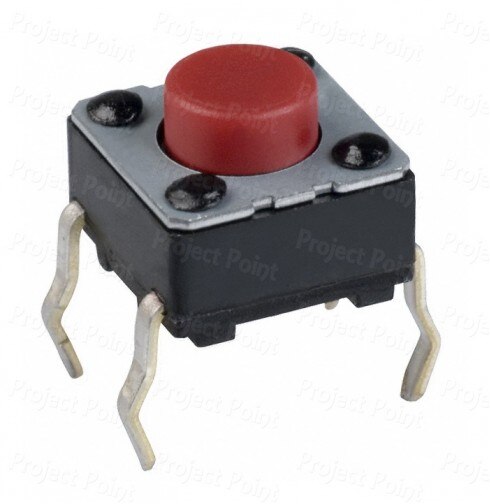

TACTILE SWITCH 6*6*5

A tactile switch (tact switch) is a momentary push-button switch commonly used in electronic circuits for input control (reset buttons, keypads, control panels, etc.).

⚙️ Electrical Specifications

Rated Voltage: 12V DC

Rated Current: 50 mA (typical)

Contact Resistance: ≤ 100 mΩ

Insulation Resistance: ≥ 100 MΩ

🧩 Mechanical Specifications

Switch Type: Momentary (Push ON, Release OFF)

Contact Configuration: SPST (Single Pole Single Throw)

Operating Force: ~100 gf to 260 gf (≈ 1–2.6 N)

Travel (Stroke): ~0.2 – 0.25 mm

Life Cycle:

50,000 to 100,000 operations (standard)

Up to 100,000+ cycles typical

📏 Physical Specifications

Size: 6 mm × 6 mm × 5 mm

Height: 5 mm (actuator height)

Pins: 4-pin (internally paired)

Mounting Type: Through-hole / PCB mount

Actuator Type: Round push button (black)

🌡️ Environmental Specifications

Operating Temperature: approx. -20°C to +70°C

Storage Temperature: approx. -30°C to +85°C

🔌 Applications

Consumer electronics (TV, remote, microwave)

Computer & PCB boards

Industrial control panels

Power/reset buttons
