MRS 2PIN

General Details

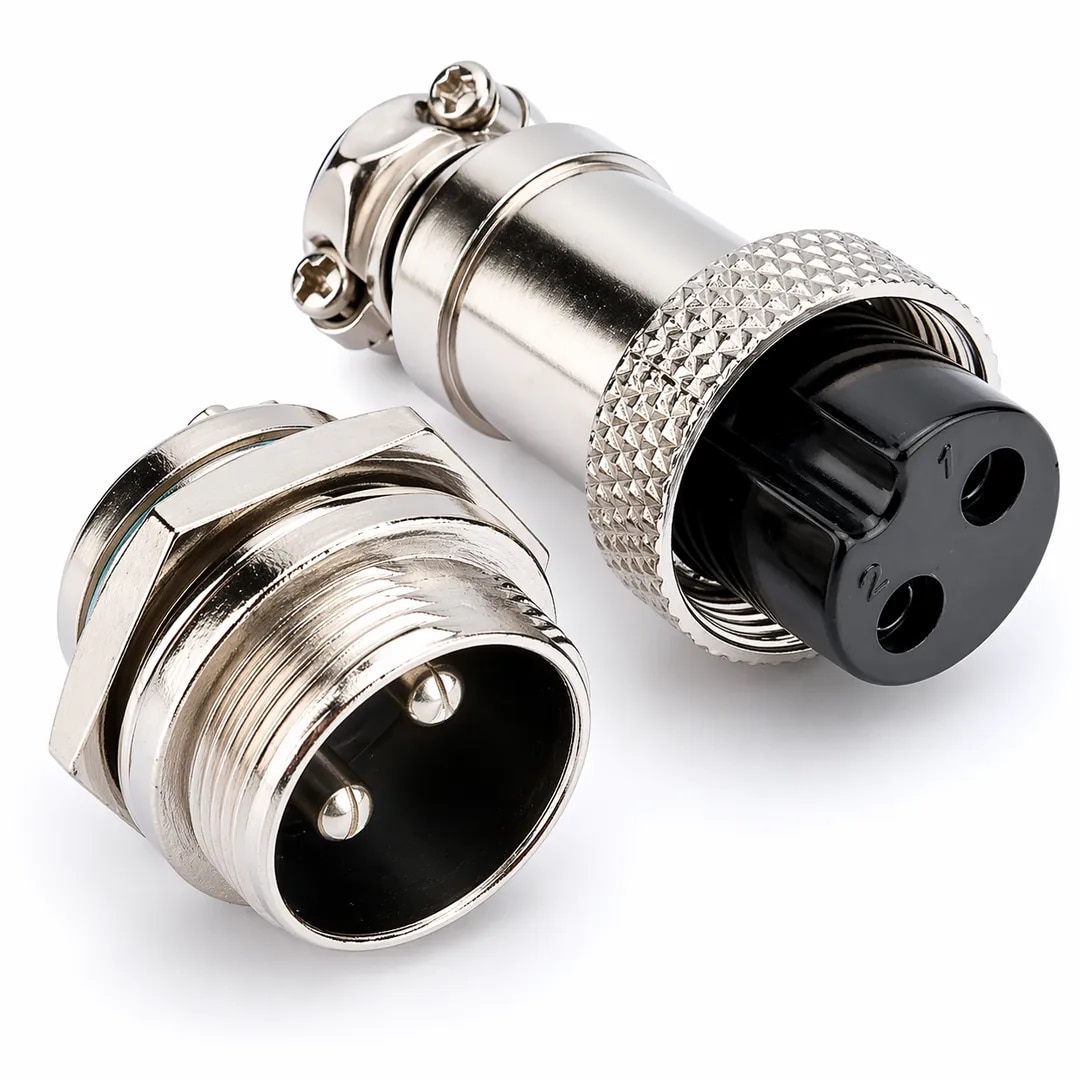

Product Name: Fuji Connector 2 Pin

Type: Circular Metal Plug & Socket Connector

Configuration: 2 Pin (Male + Female Set)

Mounting Type:

Male: Panel Mount (threaded with nut)

Female: Cable Mount (screw locking type)

Locking System: Threaded coupling (secure lock)

2. Electrical Specifications

Rated Voltage: 250V AC (typical)

Rated Current: 5A – 10A (depends on model & pin size)

Contact Resistance: ≤ 50 mΩ (typical for connectors)

Insulation Resistance: ≥ 1000 MΩ

Dielectric Strength: 1500V AC for 1 minute

3. Mechanical Specifications

Number of Pins: 2

Connection Type: Solder / Screw terminal (rear side)

Coupling: Threaded locking ring

Durability (Mating Cycles): ≥ 500 – 1000 cycles (industrial typical)

Wire Size Range:

0.5 mm² to 1.5 mm²

(Approx. 22 – 16 AWG)

4. Material Details

Housing (Outer Body): Nickel-plated Brass / Zinc Alloy

Contact Pins: Brass / Copper Alloy (Nickel plated)

Insulator: Bakelite / PA / Nylon (Black insert)

Sealing: Basic dust protection (not waterproof unless specified)

5. Dimensions (Approx.)

Panel Cutout Diameter: 16 mm – 20 mm
