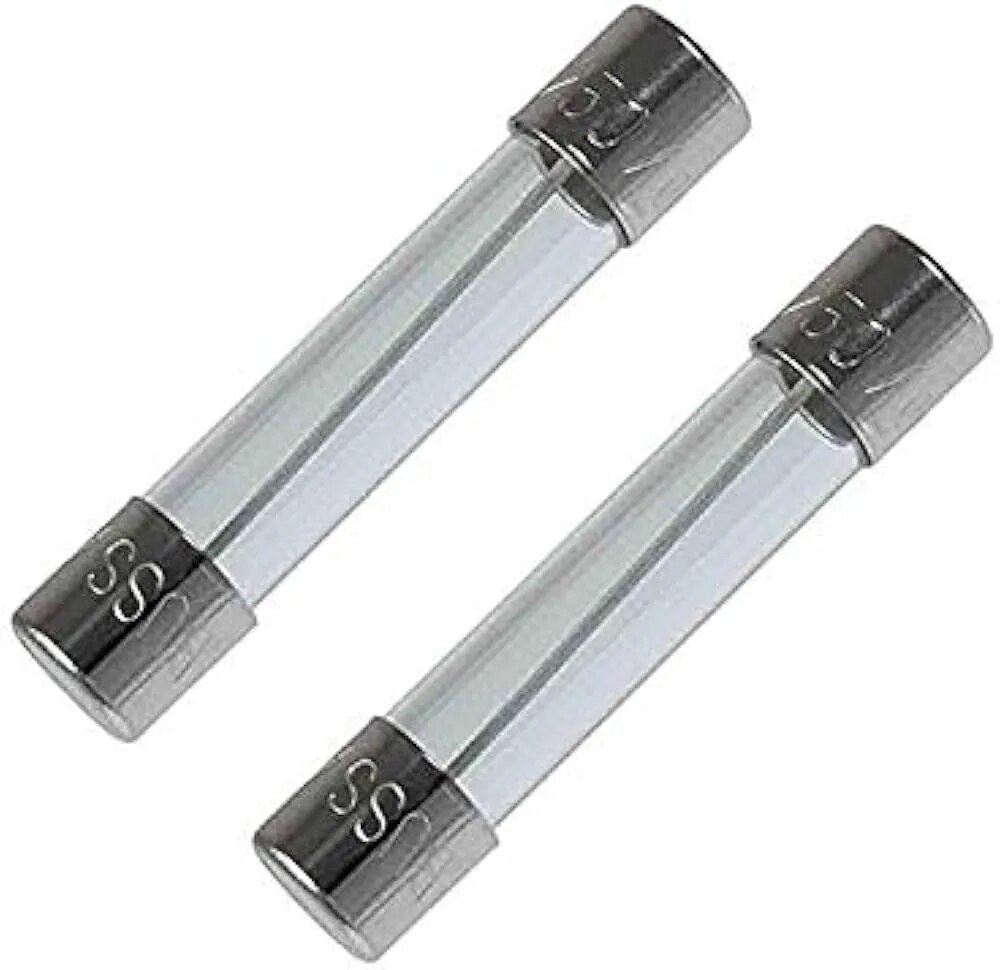

GLASS FUSE
In stock
Description
Rated Voltage: 125 V / 250 VAC (typical)
Rated Current: 0.032 A to 10 A (varies by model)
Breaking Capacity: 35 A – 100 A (glass type, low breaking capacity)
Fuse Type Options:
Fast Acting (F)
Slow Blow / Time Lag (T)
📐 Mechanical Specifications
Size: 5 mm × 20 mm (diameter × length)
Body Material: Glass tube
End Caps: Nickel-plated copper alloy
Mounting: Fuse holder / clip
Weight: ~0.9 g
🌡️ Environmental Conditions
Operating Temperature: –55 °C to +125 °C
Storage Temperature: 0 °C to 60 °C
Humidity: ≤70% RH
