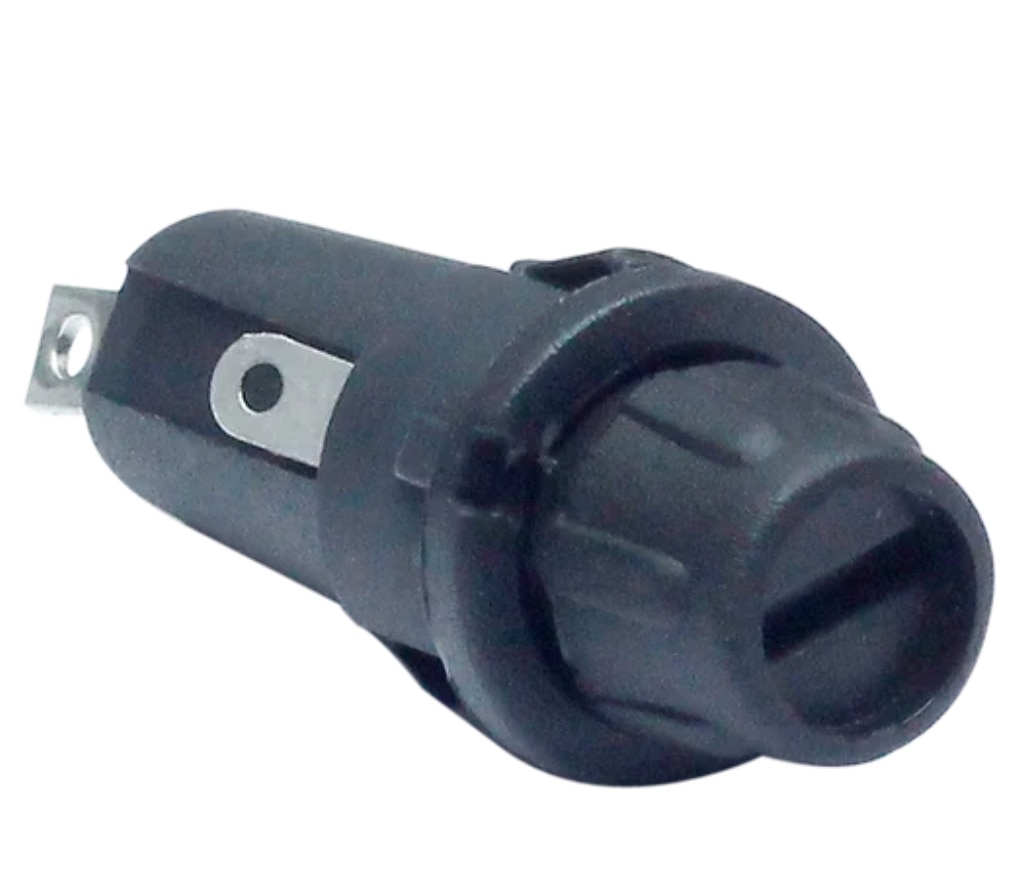

FH-7 Fuse Holder

Introduction to FH-7 Fuse Holder

The FH-7 Fuse Holder is a premium-quality electrical component designed to provide secure and reliable housing for fuses in a wide range of electrical and electronic applications. It plays a critical role in protecting circuits from overcurrent, short circuits, and electrical faults. Known for its robust construction, high performance, and long service life, the FH-7 fuse holder is widely used in industrial panels, consumer electronics, automotive systems, and power distribution units.

Engineered with precision and manufactured using high-grade materials, the FH-7 fuse holder ensures excellent electrical conductivity, strong mechanical stability, and enhanced safety. It is an ideal choice for professionals seeking dependable circuit protection solutions.

Key Features of FH-7 Fuse Holder

1. High Durability and Strength

The FH-7 fuse holder is made from superior quality thermoplastic or bakelite materials, ensuring durability and resistance to wear and tear even in harsh working environments.

2. Excellent Electrical Insulation

Designed with high insulation resistance, it prevents electrical leakage and enhances overall safety.

3. Heat and Flame Resistance

Capable of withstanding high temperatures, the FH-7 fuse holder offers excellent heat and flame resistance, making it suitable for demanding applications.

4. Secure Fuse Holding Mechanism

Provides firm grip and stable contact, minimizing the chances of loose connections or interruptions.

5. Easy Installation

The user-friendly design allows quick and hassle-free installation in panels, boards, and devices.

6. Compact Design

Its space-saving structure makes it suitable for compact electrical assemblies.

Technical Specifications

Model: FH-7 Fuse Holder

Mounting Type: Panel Mount / Chassis Mount

Compatible Fuse Type: Glass Fuse / Cartridge Fuse

Voltage Rating: Up to 250V

Current Rating: Typically 6A to 15A (depending on design)

Material: High-grade thermoplastic / bakelite

Contact Material: Brass / Copper Alloy

Cap Type: Screw Cap / Bayonet Type (varies by design)

Applications of FH-7 Fuse Holder

The FH-7 fuse holder is widely used across various industries and applications:

Industrial Machinery

Used in heavy-duty equipment and automation systems for reliable circuit protection.

Electrical Control Panels

Installed in switchboards, distribution panels, and control systems.

Consumer Electronics

Suitable for power supplies, home appliances, and electronic devices.

Automotive Systems

Used in vehicle electrical circuits and battery protection systems.

Renewable Energy Systems

Ideal for solar inverters, battery management systems, and energy control units.

Telecommunications Equipment

Provides protection in communication devices and networking systems.

Advantages of FH-7 Fuse Holder

Provides reliable circuit protection

Prevents damage from overload and short circuits

Enhances electrical safety

Long-lasting and maintenance-free

Easy to replace and service

Cost-effective solution for various applications

Manufacturing Process

The FH-7 fuse holder is manufactured using advanced production techniques to ensure consistent quality:

Selection of premium raw materials

Precision molding of insulating body

Fabrication of conductive metal contacts

Assembly of components with strict tolerances

Quality testing and inspection

Packaging and dispatch

Each unit is carefully crafted to meet industrial standards and customer expectations.

Quality Assurance and Testing

To ensure top-notch performance, FH-7 fuse holders undergo multiple quality checks, including:

Electrical conductivity testing

Insulation resistance testing

Heat resistance testing

Mechanical strength testing

Dimensional accuracy inspection

These tests ensure compliance with international standards such as IS, IEC, and other global certifications.

Why Choose FH-7 Fuse Holder?

The FH-7 fuse holder stands out due to its reliability, durability, and safety features. It is designed to meet the needs of modern electrical systems, providing efficient protection and long-term performance.

Professionals prefer the FH-7 fuse holder because it offers:

Consistent performance in critical applications

Strong and stable connections

Easy integration into various systems

High resistance to environmental factors

Conclusion

The FH-7 Fuse Holder is a dependable and high-performance component essential for safeguarding electrical circuits. Its robust design, superior insulation, and ease of installation make it a versatile solution for industrial, commercial, and domestic applications.

Whether you are designing a new electrical system or upgrading an existing one, the FH-7 fuse holder ensures maximum safety, efficiency, and reliability. It is a trusted choice for engineers, manufacturers, and technicians seeking long-lasting circuit protection solutions.
