ELCOM MPS-1
Description

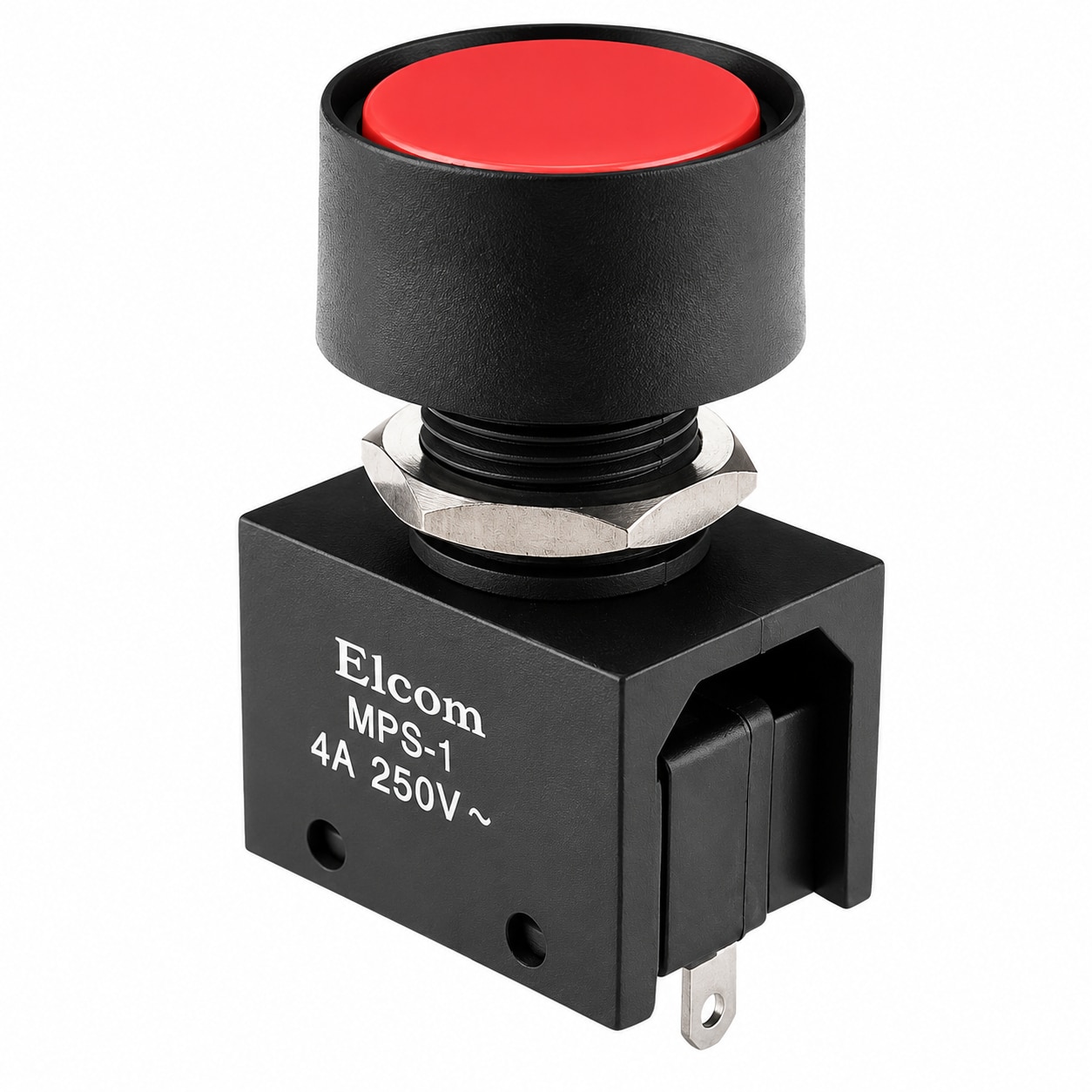

ELCOM MPS-1 is a panel mount momentary push button micro switch designed for industrial and electronic control applications. It features a shrouded round actuator cap, SPDT contact arrangement, and durable construction for long operational life.
Mechanical Specification
Parameter Specification
Model MPS-1
Brand ELCOM
Switch Type Momentary Push Button Micro Switch
Mounting Type Panel Mount
Actuator Type Shrouded Round Cap
Button Color Red
Contact Configuration SPDT (1NO + 1NC)
Number of Terminals 3 Pin / 4 Leg Type
Mounting Method Screw Type
Terminal Type Solder Terminal
Body Material Nylon / PBT
Cap Material ABS
Contact Material Copper Alloy, Silver Plated
Product Weight Approx. 12g
Mechanical Life 50,000 Cycles Min.
Electrical Specification
Parameter Specification
Rated Voltage 250V AC
Rated Current 4A
Contact Resistance 20mΩ Max
Insulation Resistance 100MΩ Min at 500V DC
Dielectric Strength 1KV AC for 1 Minute
Electrical Life 10,000 Cycles Min
Operating Temperature -20°C to +85°C
Soldering Temperature 270°C for 5 Seconds Max
Approximate Dimensions
Parameter Size
Mounting Hole Diameter 12mm Approx
Total Height 37mm – 38mm
Body Width 24mm – 25mm
Thread Length 10mm – 12mm
Button Diameter 16mm – 18mm
Terminal Configuration
Terminal Function
COM Common
NO Normally Open
NC Normally Closed
Features
Durable panel mount construction
Smooth tactile push operation
High reliability silver-plated contacts
Long electrical and mechanical life
Compact industrial design
Easy installation with threaded mounting
Suitable for repeated operation
Applications
Industrial Control Panels
Power Supply Units
Automation Equipment
Instrumentation Systems
UPS/Inverter Panels
DIY Electronics Projects
Audio Equipment
Testing Machines
Available Variants
Red / Black / Green Actuator
Shrouded Cap Type
PCB Mount & Chassis Mount Versions
SPDT Configuration
