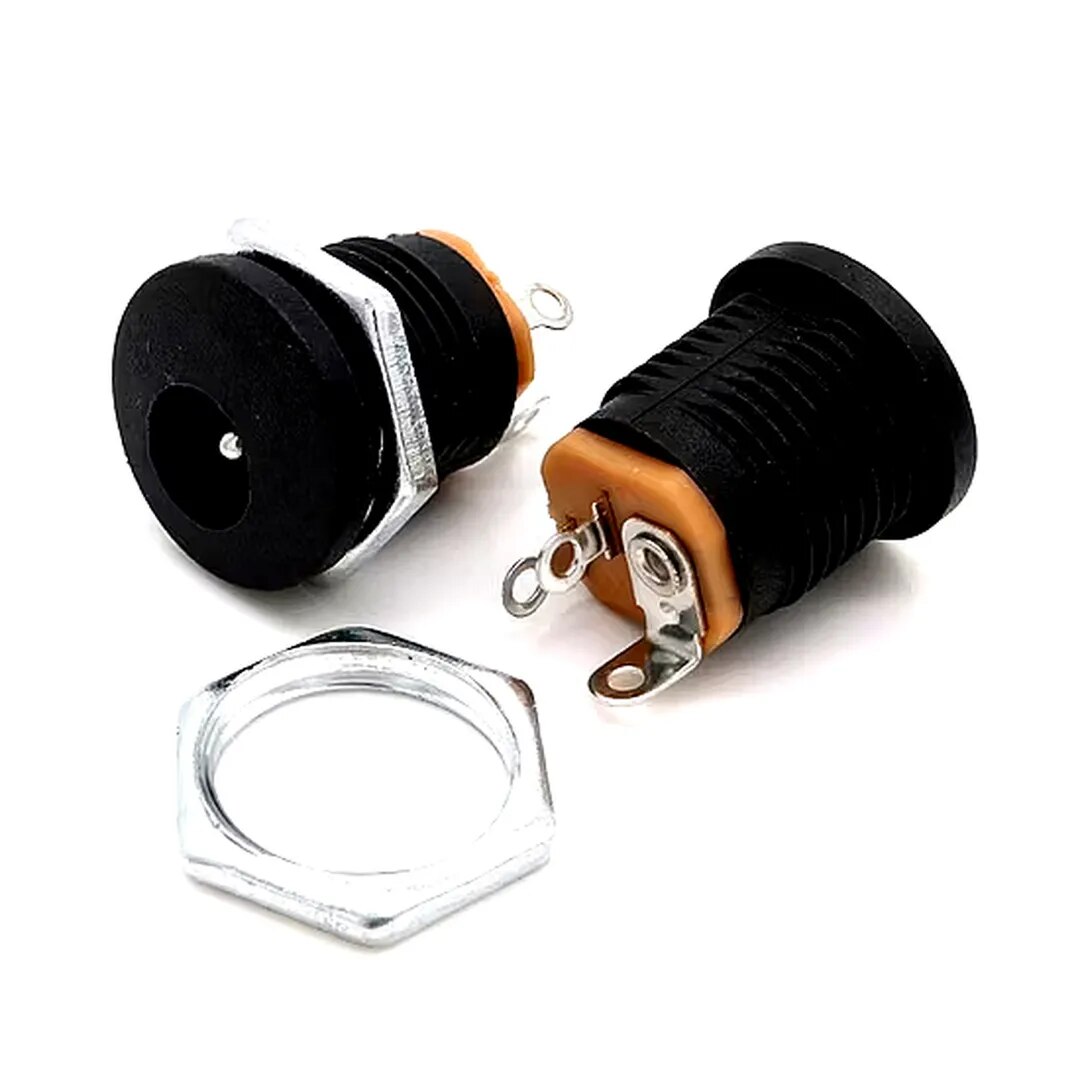

DC-022

Model: DC-022

Type: DC Power Socket / Female Jack

Mounting Type: Panel Mount (Threaded with nut)

Pin Configuration: 3 Pins (with switch)

⚙️ Electrical Specifications

Rated Voltage: 12V DC (typical)

Rated Current: 3A – 5A

Contact Resistance: ≤ 0.03Ω

Insulation Resistance: ≥ 100MΩ

Withstand Voltage: 500V AC (1 minute)

🔧 Mechanical Specifications

Connector Size:

Outer Diameter: 5.5 mm

Inner Diameter: 2.1 mm / 2.5 mm (depending on variant)

Mounting Hole Diameter: ~ 8 mm

Thread Size: M8 (approx.)

Insertion Force: Moderate (firm plug fit)

Life Cycle: 5,000 – 10,000 insertion cycles

🧱 Material

Housing: Plastic (PA66 / Nylon)

Contacts: Copper alloy with nickel plating

Nut & Washer: Metal (Nickel plated)

🔄 Pin Configuration

Pin 1: Positive (+)

Pin 2: Negative (GND)

Pin 3: Switch terminal
