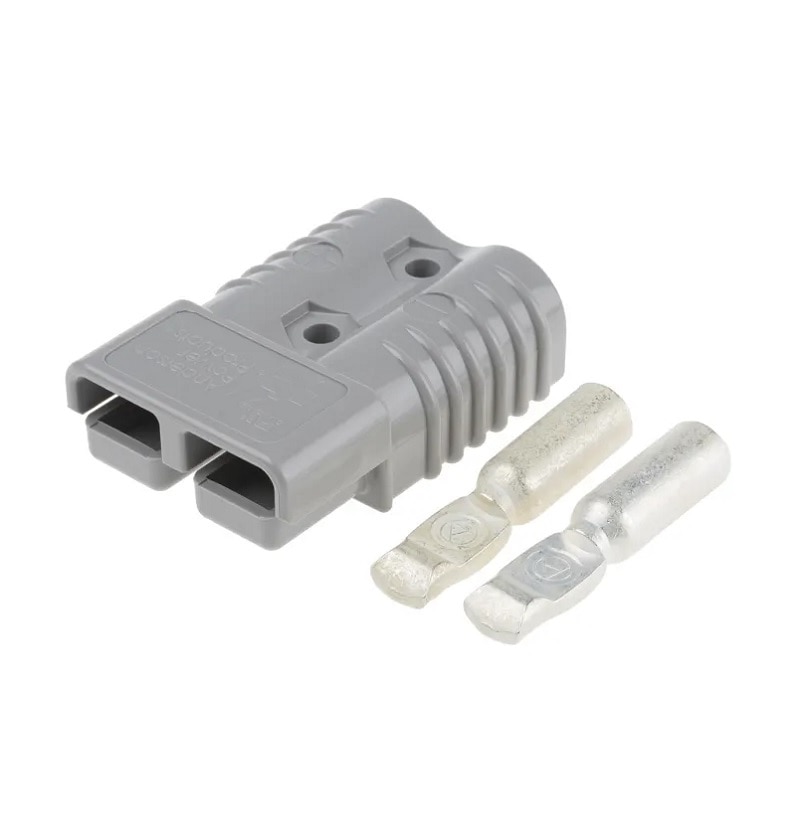

ANDERSON CONNECTOR SB-50
Description
Product Name: SB-50 Power Connector
Type: 2 Pole (2 Pin) DC Power Connector
Design: Genderless (same connector mates with itself)
Mounting Type: Cable-to-cable / Wire connection
Application: High current DC connections (battery, inverter, UPS, EV)
⚡ Electrical Specifications
Rated Voltage: 600V DC
Rated Current:
50A (standard rating)
Up to 120A max (depending on contact & wire size)
Hot Plugging Rating: 50A
Contact Resistance: Very low (silver/tin plated contacts)
Dielectric Withstanding Voltage: 2200V AC
🔩 Mechanical Specifications
Number of Contacts: 2 (Positive & Negative)
Wire Size Range:
16 AWG to 6 AWG (1.5 mm² to 13.3 mm²)
Contact Type: Crimp type terminals
Mating Cycles: High durability (industrial use)
Locking Mechanism: Spring-loaded stainless steel retention system
