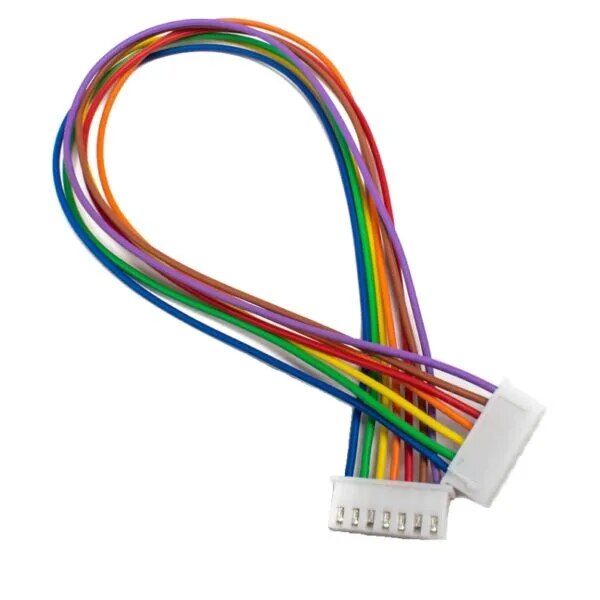

2515 RELIMATE WIRE
In stock
Description
General Description
Type: Wire-to-Board Relimate Cable (RMC / JST-XH type)
Series: 2515
Configuration: Multi-core ribbon style (separate insulated wires)
Connector Type: Female to Female / Female to Male (depending on variant)
Application: PCB interconnection, signal wiring, low-power supply
⚙️ Electrical Characteristics
Rated Voltage: Up to 250V AC/DC
Rated Current: ~3A per pin (depends on wire gauge)
Contact Resistance: Low (typical ≤ 20mΩ)
Insulation Resistance: High (≥ 1000MΩ)
📏 Mechanical Specifications
Pitch: 2.50 mm / 2.54 mm
Number of Pins: 2 to 20 pins (common: 4, 6, 8, 10, etc.)
Wire Length: 150 mm / 300 mm (typical 15–30 cm)
Wire Gauge: 26 AWG (standard)
Mounting Type: Mates with PCB header (through-hole male)
