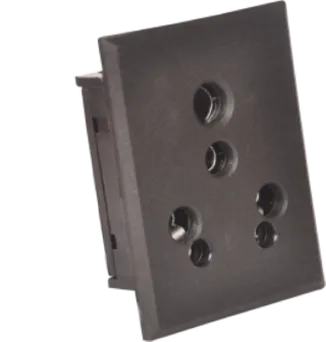

16A SOCKET PPS-16
In stock
Description
Electrical Specifications
Rated Current: 16A
Rated Voltage: 250V AC
Frequency: 50/60 Hz
Insulation Resistance: ≥ 1000 MΩ
Dielectric Strength (Hi-Pot): 2 KV AC for 1 minute
Contact Resistance: ≤ 20 mΩ
🧱 Mechanical Specifications
Mounting Type: Panel mount / Snap-in
Panel Cut-out Size: Approx. 35 × 35 mm
Panel Thickness: 0.8 mm to 2.0 mm
Terminal Type: Solder terminals
Terminal Size: 4.7 × 0.5 mm
Solder Pin Size: 0.4 × 0.8 mm
