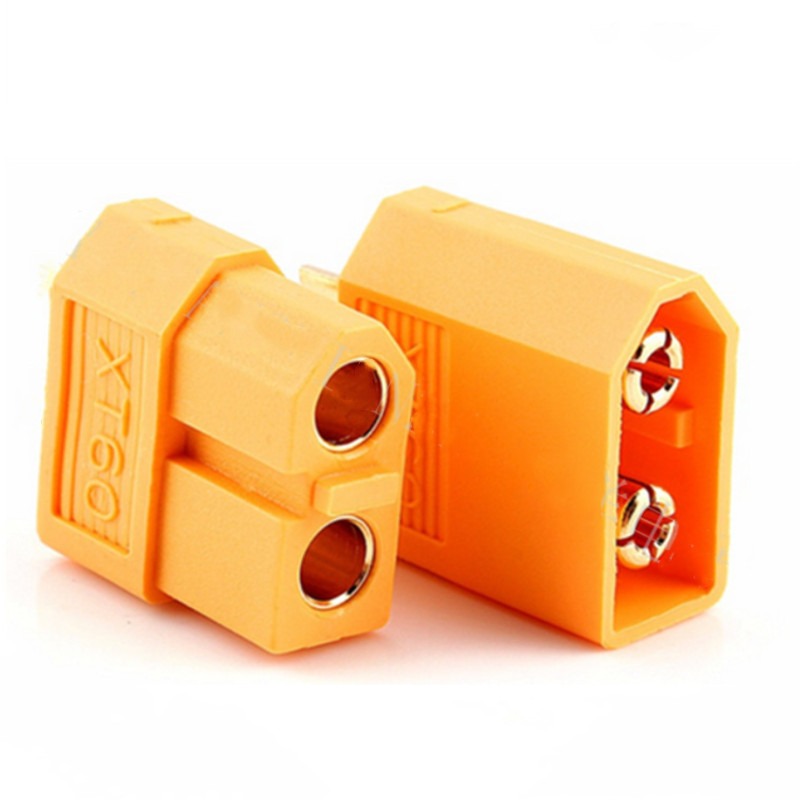

Connector Type: XT60 (DC Power Connector)
Configuration: 2 Pin (Male + Female Pair)
Connection Type: Solder terminal
Locking Mechanism: Friction-fit (secure plug-in design)
Color: Yellow (standard for XT series)
⚡ Electrical Specifications
Rated Current: 60A (continuous)
Peak Current: Up to 100A (short duration)
Rated Voltage: Up to 500V DC
Contact Resistance: Very low (high efficiency power transfer)
🔧 Material Details
Housing Material: High-temperature Nylon (heat resistant)
Contact Material: Gold-plated brass connectors
Insulation: Excellent electrical insulation with anti-spark design
📏 Physical Specifications
Number of Pins: 2 (Positive + Negative)
Connector Weight: ~6g per pair
Wire Size Compatibility:
Typically supports 12AWG – 14AWG wires
Mounting Style: Inline cable mount
🌡️ Environmental Specifications
Operating Temperature: -20°C to +120°C
Heat Resistance: Suitable for high-current applications
Flame Retardant: Yes (nylon housing)
