VITAL FINGER PUSH

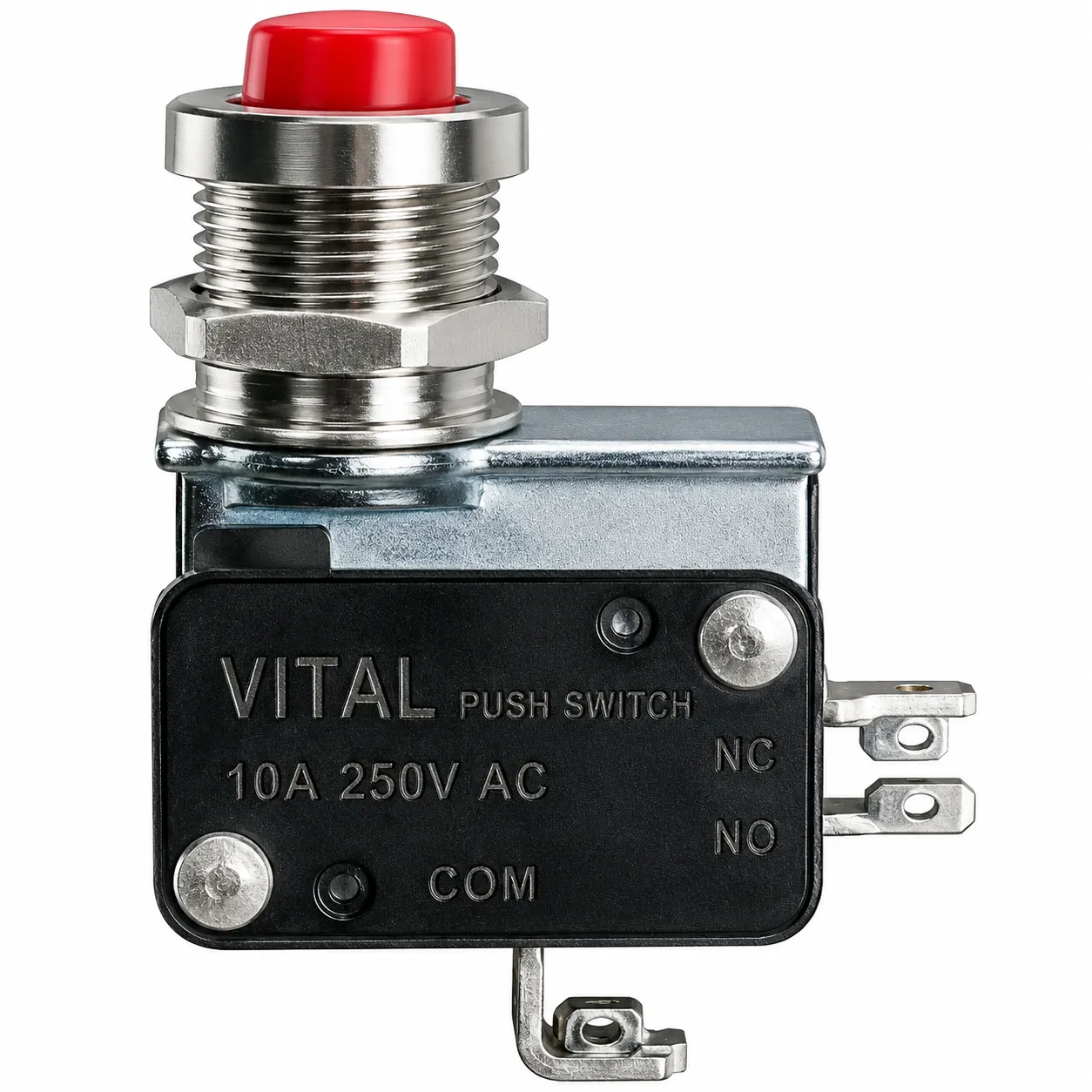

The product shown in the image is a VITAL Finger Push Switch, a heavy-duty momentary limit switch with a red finger push actuator. It is widely used in industrial machines, hoists, cranes, control panels, and automation equipment.

Technical Specifications
Parameter Specification
Product Name VITAL Finger Push Switch
Brand VITAL
Switch Type Finger Push Limit Switch
Actuator Type Red Push Button
Operation Momentary (Spring Return)
Contact Configuration 1NO + 1NC (SPDT)
Terminal Type Quick Connect / Solder Lug
Rated Voltage 250 VAC
Rated Current 10A
Contact Material Silver Alloy
Housing Material High-Strength Thermoplastic
Cover Material Metal Protective Cover
Actuator Material Engineering Plastic
Thread Material Nickel-Plated Brass
Mounting Type Panel Mount
Mounting Hole Diameter 16 mm (Approx.)
Thread Size M16 × 1.5 (Approx.)
Contact Resistance ≤50 mΩ
Insulation Resistance ≥100 MΩ at 500 VDC
Dielectric Strength 1500 VAC for 1 Minute
Mechanical Life 1, 000, 000 Operations
Electrical Life 100, 000 Operations
Operating Temperature -25°C to +85°C
Protection Rating IP40 (Front Panel, Typical)
Compliance RoHS Compliant
Contact Diagram
Terminal Function
COM Common
NO Normally Open
NC Normally Closed
Approximate Dimensions
Dimension Size
Mounting Hole 16 mm
Button Diameter 12 mm
Overall Height 55–60 mm
Switch Body Width 40 mm
Switch Body Height 30 mm
Thread Length 20 mm
Features
Heavy-duty industrial design
Smooth finger push operation
Momentary spring return mechanism
1NO + 1NC contacts
High-quality silver alloy contacts
Metal threaded body for secure mounting
Long mechanical and electrical life
Easy installation
Reliable switching performance
Corrosion-resistant construction
Low contact resistance
Suitable for continuous industrial use
Applications
Industrial Control Panels
Electric Hoists
Chain Pulley Blocks
Cranes
Conveyor Systems
Packaging Machines
CNC Machines
Hydraulic Equipment
Textile Machinery
Power Distribution Panels
Automation Systems
Safety Interlock Circuits
Machine Tools
Material Handling Equipment
Package Includes
1 × VITAL Finger Push Switch
Mounting Nut
Pre-installed NO/NC Contact Block
SEO Keywords
VITAL Finger Push Switch
VITAL Push Button Switch
Industrial Finger Push Switch
10A 250V AC Push Switch
VITAL Momentary Push Switch
Red Push Button Limit Switch
SPDT Push Switch
1NO 1NC Push Button Switch
Panel Mount Finger Push Switch
Heavy Duty Industrial Push Switch

Note: The image marking shows 10A 250V AC with COM, NO, and NC terminals, indicating a 1NO + 1NC SPDT momentary finger push switch. Actual dimensions may vary slightly depending on the exact VITAL model.
