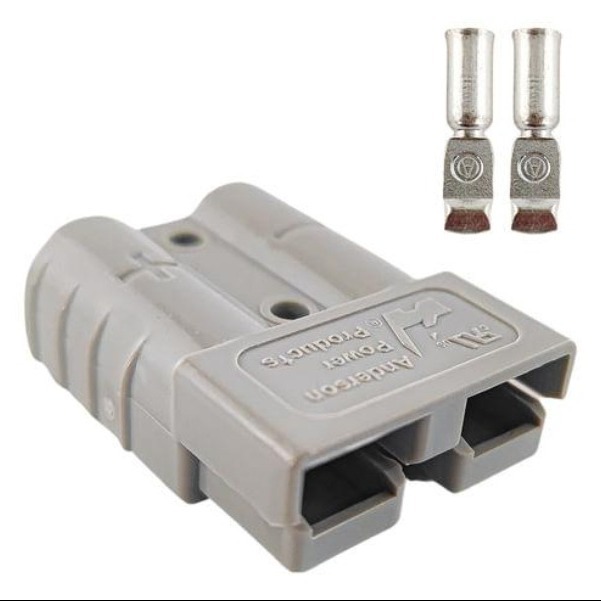

The SB-50 Connector is a 2-pole, genderless high-current DC connector widely used for battery connections, UPS systems, forklifts, electric vehicles, solar energy systems, chargers, and industrial power distribution. Its genderless design means identical housings mate together, simplifying installation and reducing wiring errors. SB-50 connectors are designed for reliable, low-resistance DC power transfer and are available with silver- or tin-plated copper contacts. Technical Specifications Parameter Specification Product Name SB-50 Connector Connector Type 2 Pole, Genderless Rated Current 50A Continuous (Standard), up to 120A UL depending on contact/wire configuration Rated Voltage 600V AC/DC Maximum Number of Contacts 2 Contact Material Silver or Tin Plated Copper Housing Material High Impact Polycarbonate Housing Color Red, Grey, Black, Blue, Yellow, Green (Keyed by Color) Contact Resistance Very Low (Approx. 0.2 mΩ Typical) Wire Size 16 AWG to 6 AWG (1.5 mm² to 13.3 mm²) Connection Type Crimp Operating Temperature -20°C to +105°C (Standard Housing) Mating Cycles Up to 10, 000 (Silver Contacts) Locking Method Stainless Steel Spring Retention Features Genderless connector design High current carrying capacity Low contact resistance Silver-plated copper contacts for efficient power transfer Durable impact-resistant housing Quick connect and disconnect Secure stainless steel spring locking Color-keyed housings to prevent mismatching Corrosion-resistant contacts Long service life Suitable for repeated mating cycles Applications Battery Packs UPS Systems Forklifts Electric Vehicles (EV) Golf Carts Solar Energy Systems Battery Chargers Power Inverters Telecom Equipment Industrial Machinery Backup Power Systems DC Power Distribution Electrical Characteristics Parameter Value Rated Voltage 600V AC/DC Rated Current 50A Continuous Maximum UL Current Up to 120A (with appropriate contact and wire size) Contact Resistance ≤0.2 mΩ Dielectric Withstand Voltage 2200V AC Mechanical Characteristics Parameter Value Contact Type Crimp Wire Size 1.5–13.3 mm² (16–6 AWG) Housing Material Polycarbonate Contact Material Silver/Tin Plated Copper Operating Temperature -20°C to +105°C Mating Cycles Up to 10, 000 Advantages Reliable high-current power transfer Fast installation and maintenance Excellent resistance to vibration Long mechanical life Low power loss Safe and secure battery connection Compatible with many industrial DC power systems Package Contents 1 × SB-50 Housing 2 × Power Contacts Stainless Steel Contact Retention Springs (assembled in housing) Industries Served Renewable Energy Material Handling Equipment Electric Mobility Industrial Automation Telecom Infrastructure Marine Applications Automotive UPS & Power Backup Systems SEO Keywords SB50 Connector Anderson SB50 Connector 50A Battery Connector High Current DC Connector Anderson Style Connector 2 Pole Battery Connector SB50 Power Connector Forklift Battery Connector UPS Battery Connector Solar Battery Connector EV Battery Connector Industrial DC Connector Quick Disconnect Power Connector Battery Charging Connector Switch Mart India SB50 Connector Note: The exact current rating depends on the contact type and wire gauge used. Standard SB-50 connectors are commonly used as 50A connectors, while certain approved contact configurations can carry higher UL-rated currents.
