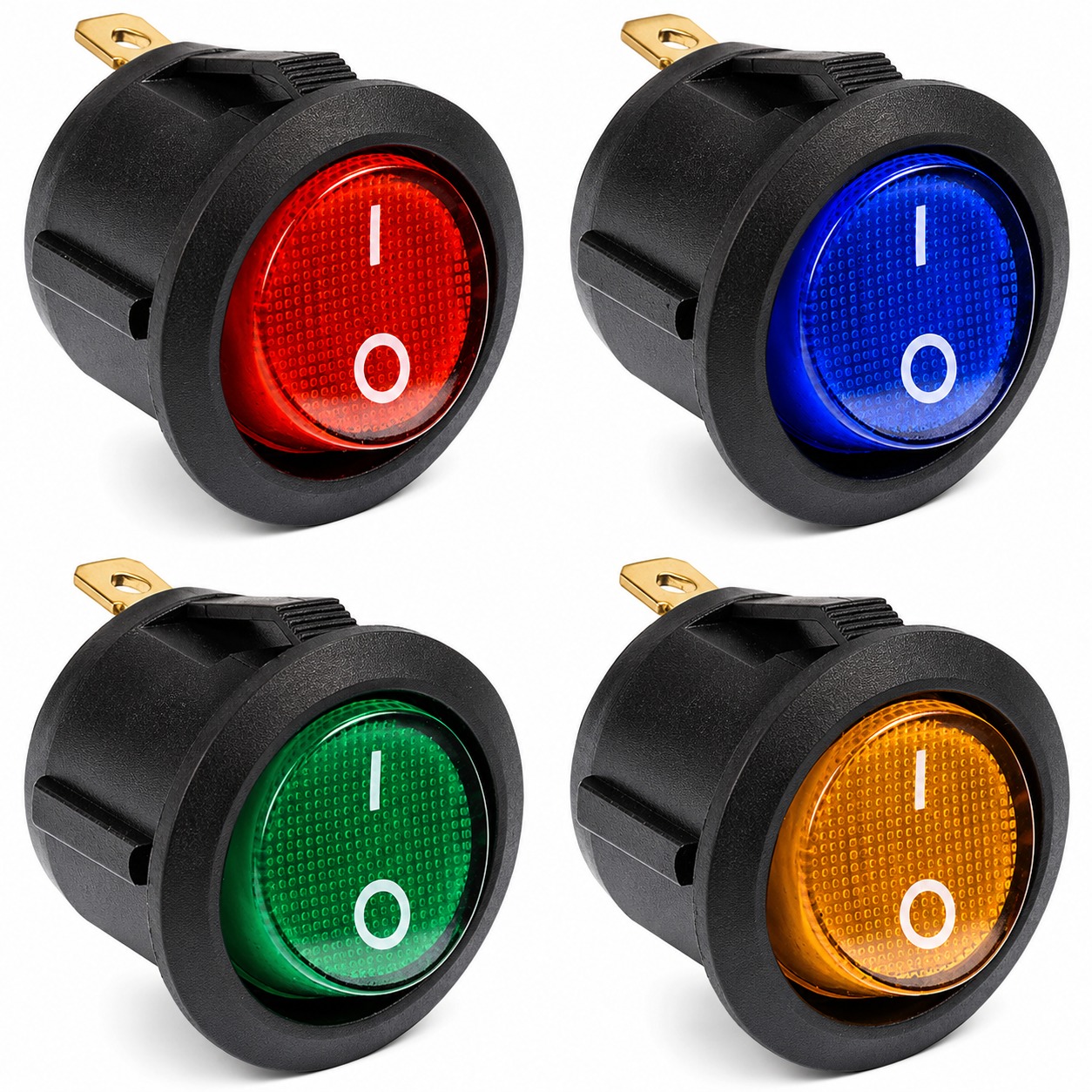

Here is the full specification for the Round Illuminated Rocker Switch (ON/OFF type) shown in the image (commonly known as KCD1 Round Illuminated Rocker Switch). 6 Round Illuminated Rocker Switch – Full Specification Parameter Specification Product Name Round Illuminated Rocker Switch Model KCD1 / RS-101 (equivalent) Switch Type Rocker Switch Operation ON / OFF Contact Configuration SPST (Single Pole Single Throw) Terminal Type 2 Pin / 2 Terminal Illumination Built-in Neon / LED lamp Available Colors Red, Blue, Green, Amber (Yellow) Rated Voltage 250V AC Rated Current 6A at 250V AC / 10A at 125V AC Contact Resistance < 35 mΩ Insulation Resistance 100 MΩ at 500V DC Dielectric Strength 1500V AC for 1 minute Electrical Life 10, 000 operations minimum Mechanical Life 50, 000 operations minimum Body Material Flame-retardant Nylon / PA66 Actuator Material Transparent Polycarbonate Contact Material Silver alloy Mounting Type Panel snap-in mounting Panel Cut-out Ø 20 mm Head Diameter 23 mm Body Diameter 20 mm Overall Length 30 mm (approx.) Terminal Size 6.3 mm quick-connect tabs Operating Temperature -25°C to +85°C IP Rating IP40 (front side) Dimensions (Approx.) Panel cut-out: Ø20 mm Bezel diameter: Ø23 mm Body diameter: Ø20 mm Body length: 27–30 mm Terminal width: 6.3 mm Terminal Diagram Pin 1: AC Input (Live) Pin 2: AC Output (Load) The internal lamp glows when the switch is in the ON ( I ) position. Applications Power supplies Battery chargers Industrial control panels UPS systems Inverters Home appliances Automotive auxiliary equipment DIY electronic projects Features Illuminated indicator for ON status Snap-in panel mounting Flame-retardant housing Silver alloy contacts for long life Compact round design Available in multiple indicator colors Suggested Product Title (SEO) Round Illuminated Rocker Switch 2 Pin ON/OFF 6A 250V AC KCD1 Snap-in Panel Mount Red Blue Green Amber – Switch Mart India I prefer this response ChatGPT Response 2 Round Illuminated Rocker Switch – Full Specification 4 Product Description A Round Illuminated Rocker Switch is a panel-mount ON/OFF switch with a built-in indicator lamp. It is widely used in power supplies, industrial control panels, UPS systems, battery chargers, appliances, electronic equipment, and automation systems. Technical Specifications Parameter Specification Product Type Round Illuminated Rocker Switch Mounting Type Snap-In Panel Mount Contact Configuration SPST (Single Pole Single Throw) Switching Function ON-OFF Terminal Type Quick Connect / Solder Terminal Rated Voltage 125VAC / 250VAC Rated Current 6A, 10A, 16A (depending on model) Contact Resistance ≤ 50mΩ Insulation Resistance ≥ 100MΩ at 500VDC Dielectric Strength 1500VAC for 1 Minute Electrical Life 10, 000 Cycles Minimum Mechanical Life 50, 000 Cycles Minimum Operating Temperature -25°C to +85°C Housing Material Flame Retardant Nylon (PA66) Contact Material Silver Alloy Illumination Colors Red, Blue, Green, Amber/Yellow Protection Level IP40 (Typical) Physical Dimensions Parameter Size Mounting Hole Diameter 20mm Head Diameter 23mm Overall Length 28–30mm Terminal Width 4.8mm Weight Approx. 8–10g Terminal Configuration 2-Pin Type Pin 1: Input (Line) Pin 2: Output (Load) 3-Pin Illuminated Type Pin 1: Line Input Pin 2: Load Output Pin 3: Neutral / Lamp Terminal Features Built-in LED/Neon indicator. Easy snap-in panel installation. High mechanical durability. Compact round design. Available in multiple illumination colors. Flame-retardant housing. Reliable silver alloy contacts. Suitable for AC and DC applications. Applications Industrial Control Panels UPS Systems Battery Chargers Power Distribution Units Medical Equipment Electronic Instruments Home Appliances Automotive Accessories Generator Control Panels Automation Systems Available Colors 🔴 Red 🔵 Blue 🟢 Green 🟡 Amber / Yellow SEO Keywords Round Rocker Switch, Illuminated Rocker Switch, Round ON OFF Switch, LED Rocker Switch, Panel Mount Rocker Switch, Round Power Switch, Industrial Rocker Switch, Snap-In Rocker Switch, SPST Rocker Switch, Illuminated ON OFF Switch, Switch Mart India.
