Round Illuminated Rocker Switch – Full Specification
Parameter
Specification
Product Name
Round Illuminated Rocker Switch
Model
KCD1 / RS-101 (equivalent)
Switch Type
Rocker Switch
Operation
ON / OFF
Contact Configuration
SPST (Single Pole Single Throw)
Terminal Type
2 Pin / 2 Terminal
Illumination
Built-in Neon / LED lamp

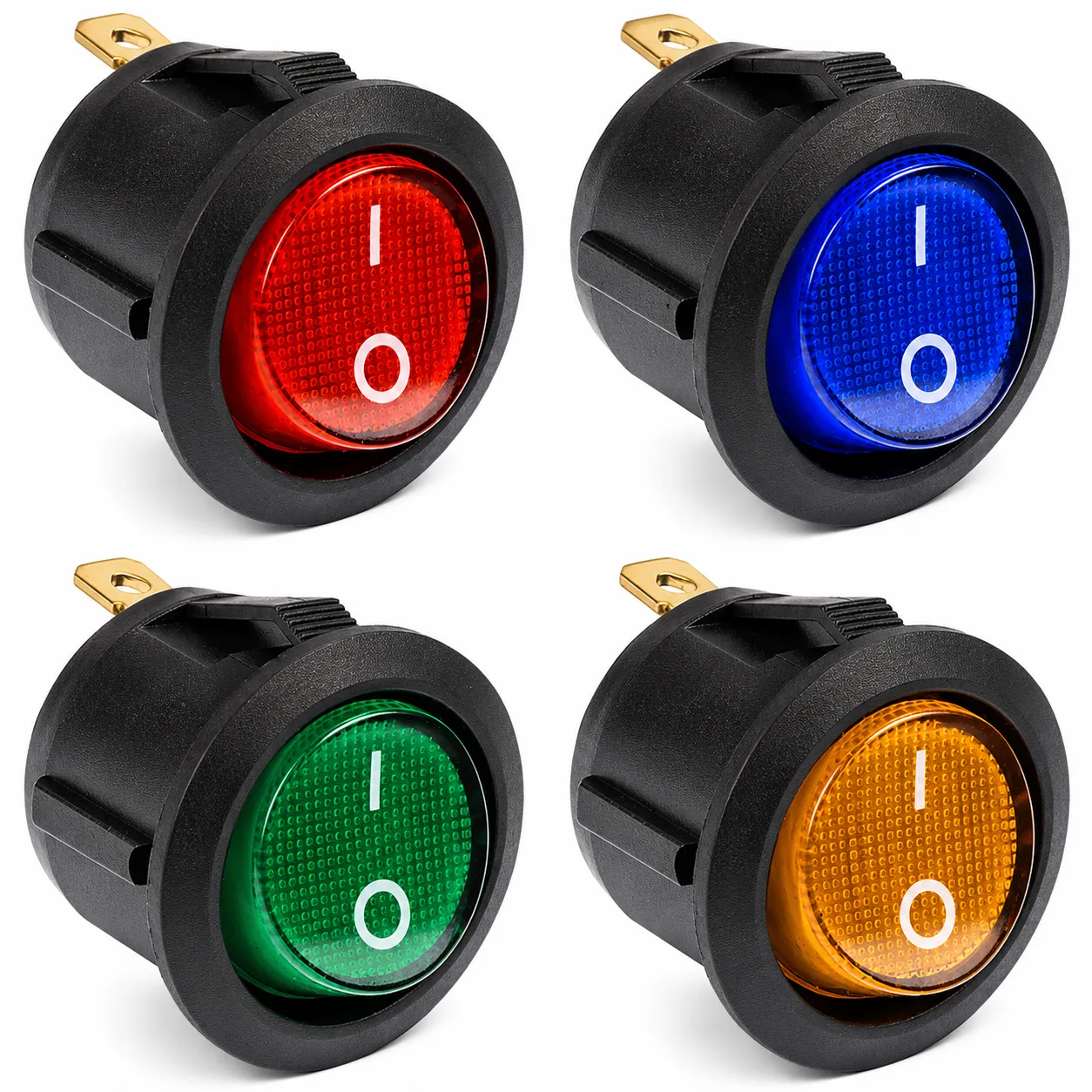

Available Colors
Red, Blue, Green, Amber (Yellow)
Rated Voltage
250V AC
Rated Current
6A at 250V AC / 10A at 125V AC
Contact Resistance
< 35 mΩ
Insulation Resistance
100 MΩ at 500V DC
Dielectric Strength
1500V AC for 1 minute
Electrical Life
10, 000 operations minimum
Mechanical Life
50, 000 operations minimum
Body Material
Flame-retardant Nylon / PA66
Actuator Material
Transparent Polycarbonate
Contact Material
Silver alloy
Mounting Type
Panel snap-in mounting
Panel Cut-out
Ø 20 mm
Head Diameter
23 mm
Body Diameter
20 mm
Overall Length
30 mm (approx.)
Terminal Size
6.3 mm quick-connect tabs
Operating Temperature
-25°C to +85°C
IP Rating
IP40 (front side)
Dimensions (Approx.)
Panel cut-out: Ø20 mm
Bezel diameter: Ø23 mm
Body diameter: Ø20 mm
Body length: 27–30 mm
Terminal width: 6.3 mm
Terminal Diagram
Pin 1: AC Input (Live)
Pin 2: AC Output (Load)
The internal lamp glows when the switch is in the ON ( I ) position.
Applications
Power supplies
Battery chargers
Industrial control panels
UPS systems
Inverters
Home appliances
Automotive auxiliary equipment
DIY electronic projects
Features
Illuminated indicator for ON status
Snap-in panel mounting
Flame-retardant housing
Silver alloy contacts for long life
Compact round design
Available in multiple indicator colors
Suggested Product Title (SEO)
Round Illuminated Rocker Switch 2 Pin ON/OFF 6A 250V AC KCD1 Snap-in Panel Mount Red Blue Green Amber – Switch Mart India
I prefer this response
ChatGPT
Response 2
Round Illuminated Rocker Switch – Full Specification
4
Product Description
A Round Illuminated Rocker Switch is a panel-mount ON/OFF switch with a built-in indicator lamp. It is widely used in power supplies, industrial control panels, UPS systems, battery chargers, appliances, electronic equipment, and automation systems.
Technical Specifications
Parameter Specification
Product Type Round Illuminated Rocker Switch
Mounting Type Snap-In Panel Mount
Contact Configuration SPST (Single Pole Single Throw)
Switching Function ON-OFF
Terminal Type Quick Connect / Solder Terminal
Rated Voltage 125VAC / 250VAC
Rated Current 6A, 10A, 16A (depending on model)
Contact Resistance ≤ 50mΩ
Insulation Resistance ≥ 100MΩ at 500VDC
Dielectric Strength 1500VAC for 1 Minute
Electrical Life 10, 000 Cycles Minimum
Mechanical Life 50, 000 Cycles Minimum
Operating Temperature -25°C to +85°C
Housing Material Flame Retardant Nylon (PA66)
Contact Material Silver Alloy
Illumination Colors Red, Blue, Green, Amber/Yellow
Protection Level IP40 (Typical)
Physical Dimensions
Parameter Size
Mounting Hole Diameter 20mm
Head Diameter 23mm
Overall Length 28–30mm
Terminal Width 4.8mm
Weight Approx. 8–10g
Terminal Configuration
2-Pin Type
Pin 1: Input (Line)
Pin 2: Output (Load)
3-Pin Illuminated Type
Pin 1: Line Input
Pin 2: Load Output
Pin 3: Neutral / Lamp Terminal
Features
Built-in LED/Neon indicator.
Easy snap-in panel installation.
High mechanical durability.
Compact round design.
Available in multiple illumination colors.
Flame-retardant housing.
Reliable silver alloy contacts.
Suitable for AC and DC applications.
Applications
Industrial Control Panels
UPS Systems
Battery Chargers
Power Distribution Units
Medical Equipment
Electronic Instruments
Home Appliances
Automotive Accessories
Generator Control Panels
Automation Systems
Available Colors
🔴 Red
🔵 Blue
🟢 Green
🟡 Amber / Yellow
SEO Keywords
Round Rocker Switch, Illuminated Rocker Switch, Round ON OFF Switch, LED Rocker Switch, Panel Mount Rocker Switch, Round Power Switch, Industrial Rocker Switch, Snap-In Rocker Switch, SPST Rocker Switch, Illuminated ON OFF Switch, Switch Mart India.
6
Round Illuminated Rocker Switch – Full Specification
Parameter
Specification
Product Name
Round Illuminated Rocker Switch
Model
KCD1 / RS-101 (equivalent)
Switch Type
Rocker Switch
Operation
ON / OFF
Contact Configuration
SPST (Single Pole Single Throw)
Terminal Type
2 Pin / 2 Terminal
Illumination
Built-in Neon / LED lamp
Available Colors
Red, Blue, Green, Amber (Yellow)
Rated Voltage
250V AC
Rated Current
6A at 250V AC / 10A at 125V AC
Contact Resistance
< 35 mΩ
Insulation Resistance
100 MΩ at 500V DC
Dielectric Strength
1500V AC for 1 minute
Electrical Life
10, 000 operations minimum
Mechanical Life
50, 000 operations minimum
Body Material
Flame-retardant Nylon / PA66
Actuator Material
Transparent Polycarbonate
Contact Material
Silver alloy
Mounting Type
Panel snap-in mounting
Panel Cut-out
Ø 20 mm
Head Diameter
23 mm
Body Diameter
20 mm
Overall Length
30 mm (approx.)
Terminal Size
6.3 mm quick-connect tabs
Operating Temperature
-25°C to +85°C
IP Rating
IP40 (front side)
Dimensions (Approx.)
Panel cut-out: Ø20 mm
Bezel diameter: Ø23 mm
Body diameter: Ø20 mm
Body length: 27–30 mm
Terminal width: 6.3 mm
Terminal Diagram
Pin 1: AC Input (Live)
Pin 2: AC Output (Load)
The internal lamp glows when the switch is in the ON ( I ) position.
Applications
Power supplies
Battery chargers
Industrial control panels
UPS systems
Inverters
Home appliances
Automotive auxiliary equipment
DIY electronic projects
Features
Illuminated indicator for ON status
Snap-in panel mounting
Flame-retardant housing
Silver alloy contacts for long life
Compact round design
Available in multiple indicator colors
Suggested Product Title (SEO)
Round Illuminated Rocker Switch 2 Pin ON/OFF 6A 250V AC KCD1 Snap-in Panel Mount Red Blue Green Amber – Switch Mart India
