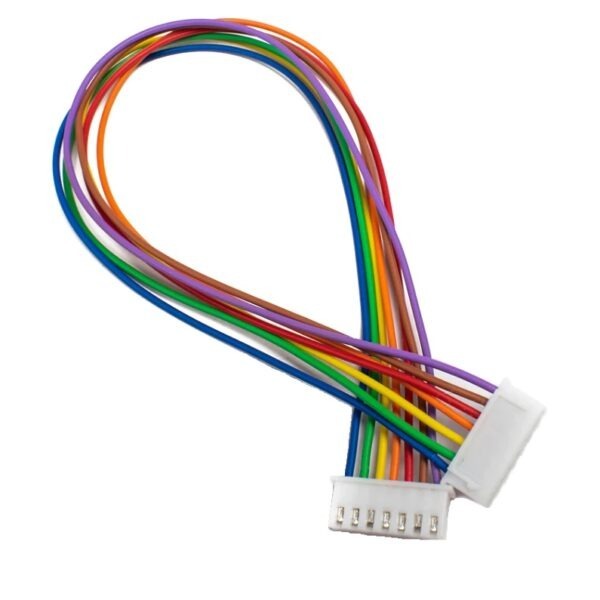

Type: Wire-to-Board Relimate Cable (RMC / JST-XH type) Series: 2515 Configuration: Multi-core ribbon style (separate insulated wires) Connector Type: Female to Female / Female to Male (depending on variant) Application: PCB interconnection, signal wiring, low-power supply ⚙️ Electrical Characteristics Rated Voltage: Up to 250V AC/DC Rated Current: ~3A per pin (depends on wire gauge) Contact Resistance: Low (typical ≤ 20mΩ) Insulation Resistance: High (≥ 1000MΩ) 📏 Mechanical Specifications Pitch: 2.50 mm / 2.54 mm Number of Pins: 2 to 20 pins (common: 4, 6, 8, 10, etc.) Wire Length: 150 mm / 300 mm (typical 15–30 cm) Wire Gauge: 26 AWG (standard) Mounting Type: Mates with PCB header (through-hole male)
