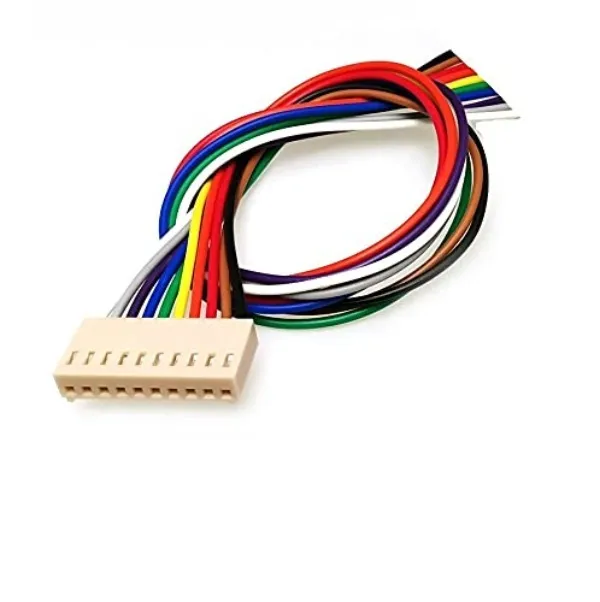

Based on the uploaded image, this is a 2510 Relimate Wire Harness (Female Connector with Pre-crimped Wires), commonly used for wire-to-board connections in electronic equipment, industrial control panels, LED drivers, battery packs, and PCB assemblies.
2510 Relimate Wire – Full Specification
Product Name
2510 Relimate Female Wire Harness
General Specifications
Parameter Specification
Connector Type 2510 Relimate Female Connector
Pitch 2.54 mm (0.1 inch)
Number of Pins 2 to 16 Pins (image shows approximately 10-pin)
Connector Style Wire-to-Board
Gender Female Housing with Crimp Terminals
Housing Material Nylon 66 (UL94V-0 Flame Retardant)
Contact Material Phosphor Bronze / Brass
Contact Plating Tin Plated
Wire Material Copper, PVC Insulated
Wire Gauge 22–28 AWG (commonly 24 AWG or 26 AWG)
Wire Length 100 mm, 150 mm, 200 mm, 300 mm or custom
Rated Current Up to 3 A
Rated Voltage 250 VAC/DC
Contact Resistance ≤20 mΩ
Insulation Resistance ≥1000 MΩ
Withstanding Voltage 1000 VAC for 1 Minute
Operating Temperature -40°C to +85°C
Mounting Type Mates with 2510 Male PCB Header
RoHS Compliance Yes
Dimensions
Item Dimension
Pitch 2.54 mm
Housing Width Depends on Number of Pins
Housing Height Approx. 8 mm
Housing Thickness Approx. 6 mm
Wire Diameter Approx. 1.5–2.0 mm (depending on AWG)
Features
Secure polarized locking design
Easy plug-and-play connection
Excellent electrical conductivity
Durable nylon housing
Corrosion-resistant tin-plated terminals
Suitable for repeated mating cycles
Lightweight and compact
Applications
Industrial Control Panels
PCB Connections
LED Drivers
Power Supplies
Automation Equipment
Consumer Electronics
Battery Packs
Medical Equipment
Robotics
Telecommunication Devices
Automotive Electronics (low-voltage applications)
Package Includes
1 × 2510 Female Relimate Connector Housing
Crimp Terminals
Multi-colour PVC Wires (pre-crimped)
This connector is compatible with 2510 series male PCB headers having a 2.54 mm pitch and is widely used in industrial electronic assemblies.
2510 Relimate Wire – Full Specification
Product Name
2510 Relimate Female Wire Harness
General Specifications
Parameter Specification
Connector Type 2510 Relimate Female Connector
Pitch 2.54 mm (0.1 inch)
Number of Pins 2 to 16 Pins (image shows approximately 10-pin)
Connector Style Wire-to-Board
Gender Female Housing with Crimp Terminals
Housing Material Nylon 66 (UL94V-0 Flame Retardant)
Contact Material Phosphor Bronze / Brass
Contact Plating Tin Plated
Wire Material Copper, PVC Insulated
Wire Gauge 22–28 AWG (commonly 24 AWG or 26 AWG)
Wire Length 100 mm, 150 mm, 200 mm, 300 mm or custom
Rated Current Up to 3 A
Rated Voltage 250 VAC/DC
Contact Resistance ≤20 mΩ
Insulation Resistance ≥1000 MΩ
Withstanding Voltage 1000 VAC for 1 Minute
Operating Temperature -40°C to +85°C
Mounting Type Mates with 2510 Male PCB Header
RoHS Compliance Yes
Dimensions
Item Dimension
Pitch 2.54 mm
Housing Width Depends on Number of Pins
Housing Height Approx. 8 mm
Housing Thickness Approx. 6 mm
Wire Diameter Approx. 1.5–2.0 mm (depending on AWG)
Features
Secure polarized locking design
Easy plug-and-play connection
Excellent electrical conductivity
Durable nylon housing
Corrosion-resistant tin-plated terminals
Suitable for repeated mating cycles
Lightweight and compact
Applications
Industrial Control Panels
PCB Connections
LED Drivers
Power Supplies
Automation Equipment
Consumer Electronics
Battery Packs
Medical Equipment
Robotics
Telecommunication Devices
Automotive Electronics (low-voltage applications)
Package Includes
1 × 2510 Female Relimate Connector Housing
Crimp Terminals
Multi-colour PVC Wires (pre-crimped)
This connector is compatible with 2510 series male PCB headers having a 2.54 mm pitch and is widely used in industrial electronic assemblies.
