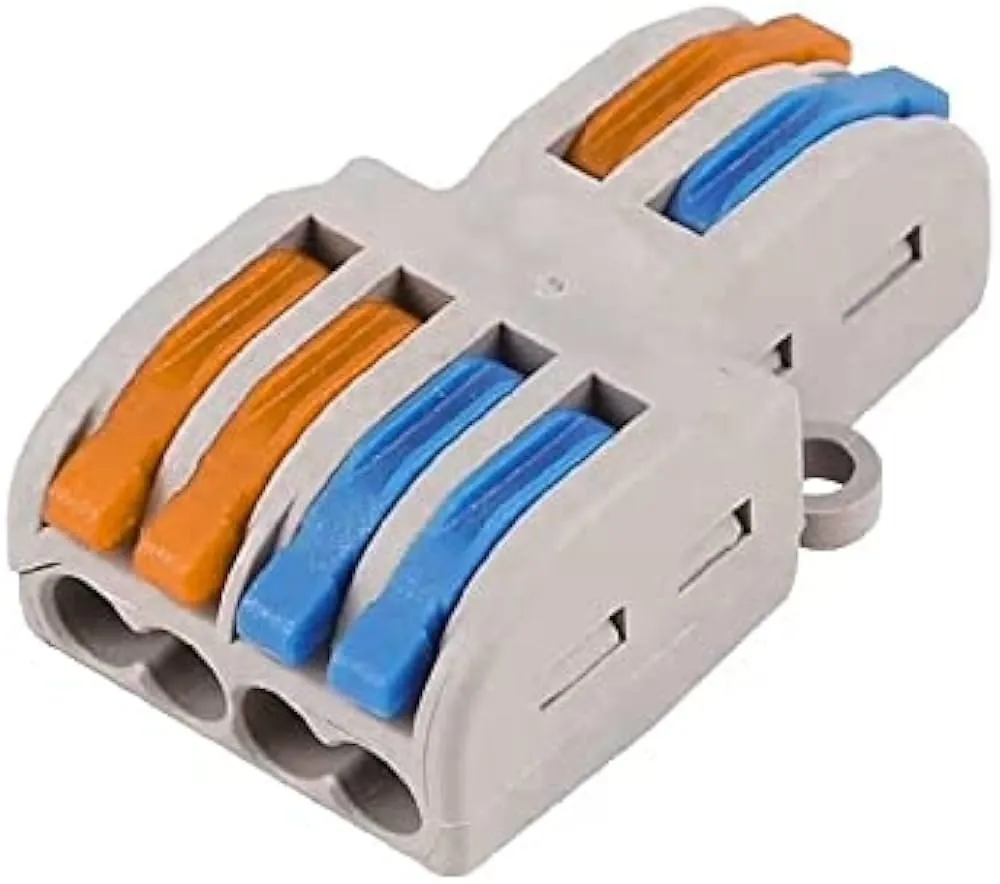

Based on the image, this connector is a PCT-SPL-42 Lever Wire Connector (4 IN 2 OUT), designed for quick, secure, and reusable electrical wire splicing using a spring-loaded lever mechanism.
PCT-SPL-42 Lever Wire Connector (4 IN 2 OUT) – Full Specification
General Specifications
Parameter Specification
Product Name PCT-SPL-42 Lever Wire Connector
Model PCT-SPL-42
Connector Type Spring Lever Wire Connector
Configuration 4 Input × 2 Output (4:2 Pole)
Number of Conductors 6 Conductors
Connection Type Tool-Free Lever Lock
Reusable Yes
Electrical Specifications
Parameter Specification
Rated Voltage 250–400V AC
Maximum Voltage Up to 600V
Rated Current 32A
Maximum Power 7kW
Frequency 50/60Hz
Insulation Resistance ≥100 MΩ
Contact Resistance ≤1 mΩ
Wire Compatibility
Wire Type Supported Size
Solid Copper Wire 0.08–2.5 mm²
Flexible Copper Wire 0.08–4.0 mm²
AWG Range 28–12 AWG
Recommended Strip Length 10–12 mm
Material Specifications
Component Material
Housing Flame-Retardant PA66 (Nylon) / Polycarbonate
Contact Material Tin/Nickel-Plated Copper Alloy
Spring Stainless Steel
Lever High-Strength Engineering Plastic
Mechanical Specifications
Parameter Approximate Value
Length 39–40 mm
Width 22.8–24 mm
Height 14–15 mm
Weight 10–11 g
Color Grey Housing with Orange & Blue Levers
Operating Conditions
Operating Temperature: -40°C to +85°C
Maximum Continuous Service Temperature: 85°C
Suitable for indoor electrical installations
Vibration-resistant spring connection
Maintenance-free operation
Features
Tool-free installation
Quick lever locking mechanism
Reusable design
Secure spring pressure connection
Supports solid, stranded, and flexible copper wires
Flame-retardant insulating housing
Compact and space-saving
High conductivity with low contact resistance
Corrosion-resistant contacts
Easy inspection and maintenance
Applications
LED lighting systems
Electrical junction boxes
Distribution boards
Industrial control panels
Home and commercial wiring
HVAC systems
Automation equipment
Solar PV wiring
Machinery electrical connections
DIY electrical projects
Package Contents
1 × PCT-SPL-42 Lever Wire Connector (4 IN 2 OUT)
Advantages
Fast installation without screws
No soldering or crimping required
Safe and reliable electrical connection
Reusable multiple times
Long service life
Reduces wiring time
Suitable for residential, commercial, and industrial electrical applications
This specification is suitable for use in a Switch Mart India product catalog, e-commerce product page, technical datasheet, or SEO product listing.
