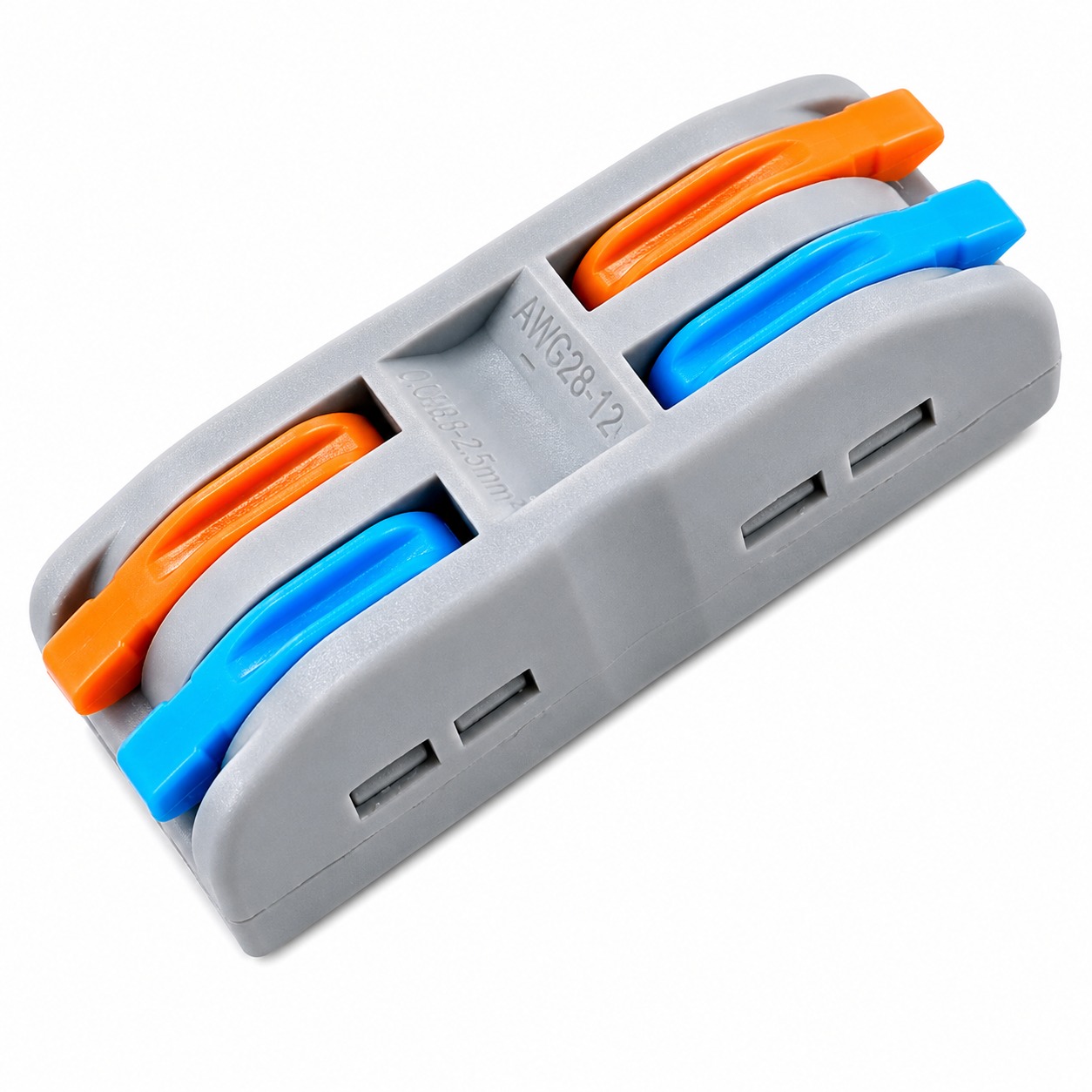

Based on the image, this is a PCT-222 Lever Wire Connector (2 IN 2 OUT), commonly used for quick, tool-free electrical wire connections in lighting, industrial control panels, junction boxes, and building wiring. PCT-222 Lever Wire Connector (2 IN 2 OUT) – Full Specification Product Name PCT-222 Quick Lever Wire Connector (2 IN 2 OUT) Product Type Reusable Lever-Type Wire Connector Configuration 2 Input + 2 Output 4 Conductors Total Dual Lever Locking System Material Housing: Flame-Retardant Polycarbonate (PC) Internal Spring: Stainless Steel Current Bar: Tin-Plated Copper Electrical Specifications Parameter Specification Rated Voltage 250V AC / 400V Max Rated Current 32A Power Rating Up to 7kW (depending on wiring) Frequency 50/60 Hz Insulation Resistance ≥100MΩ Contact Resistance ≤0.05Ω Wire Compatibility Wire Type Size Solid Wire 0.2–4.0 mm² (24–12 AWG) Stranded Wire 0.2–2.5 mm² (24–14 AWG) Flexible Wire 0.2–2.5 mm² Mechanical Specifications Connection Type: Lever Lock Reusable: Yes Tool Required: No Wire Strip Length: 10–12 mm Operating Temperature: -40°C to +105°C Approximate Dimensions Dimension Size Length 39 mm Width 13 mm Height 15 mm Weight 6–8 g Features Fast installation without screws Reusable design Transparent wire inspection window Strong spring clamping force Low contact resistance Vibration-resistant connection Flame-retardant housing Compact size for junction boxes Easy lever operation Maintenance-free Applications LED lighting Ceiling lights Junction boxes Electrical distribution boxes Home wiring Industrial control panels Machinery wiring HVAC systems Automation equipment Solar electrical installations Package Contents 1 × PCT-222 Lever Wire Connector (2 IN 2 OUT) Advantages Saves installation time No twisting or soldering required Safe and secure electrical connection Reusable multiple times Suitable for solid, stranded, and flexible wires Reliable long-term electrical performance Typical Uses Residential electrical wiring Commercial lighting Industrial electrical panels Power distribution systems Automation projects DIY electrical installations This specification is suitable for use in a Switch Mart India product catalog, e-commerce listing, or SEO product page.
