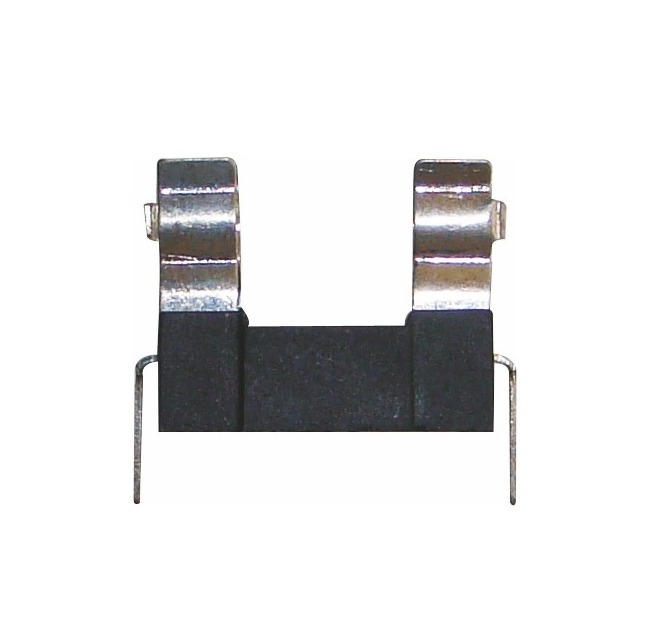

PBF-1 FUSE HOLDER

Rated Voltage: 250 VAC Rated Current: 6 A – 10 A (typical) Contact Resistance: ≤ 10 mΩ Insulation Resistance: ≥ 100 MΩ @ 500 VDC Dielectric Strength: 1500 VAC / 1 minute (Ratings aligned with standard 5×20 mm fuse systems ) 📐 Mechanical Specifications Fuse Size Compatibility: 5 mm × 20 mm Mounting Type: PCB Through-Hole Terminal Pitch: ~22–25 mm (typical) Clip Material: Phosphor bronze / spring steel Plating: Nickel or tin plated Housing Material: Flame-retardant plastic (PA66 / Nylon) Color: Black 🌡️ Environmental Conditions Operating Temperature: –40 °C to +85 °C Storage Temperature: –10 °C to +60 °C Humidity: ≤ 85% RH
