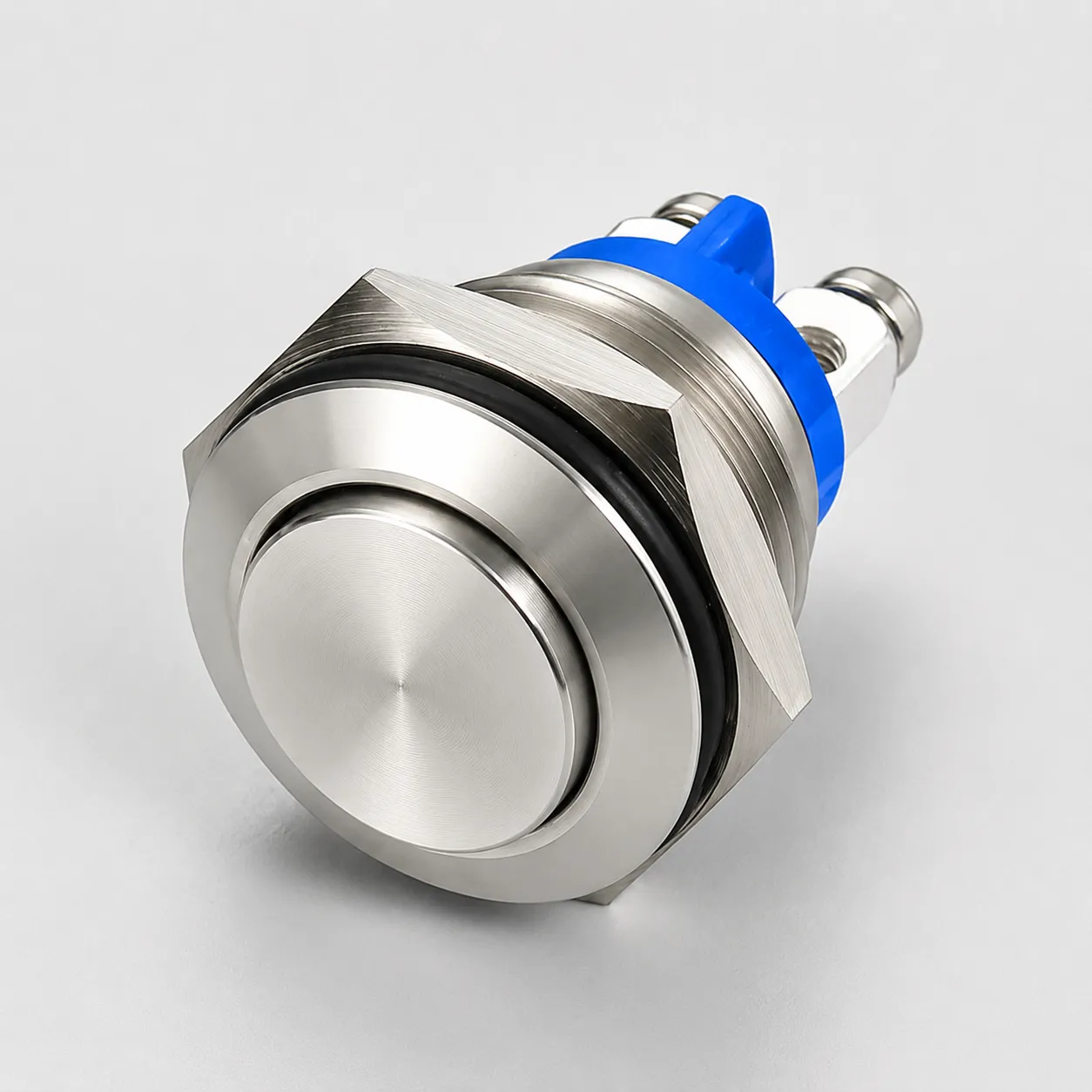

The 16MM Metal 2 Pin Reset Push Button Switch is a high-quality momentary push button designed for industrial control panels, automation equipment, electrical machines, automotive systems, and DIY electronics. The switch returns automatically to its original position after being pressed, making it ideal for reset, start, and trigger applications.
Technical Specifications
Parameter Specification
Product Name 16MM Metal Push Button Switch
Switch Type Momentary (Reset)
Mounting Hole Diameter 16 mm
Contact Configuration SPST (1NO)
Number of Pins 2 Pins
Operation Push ON, Release OFF
Actuator Type Flat Metal Button
Button Material Stainless Steel
Housing Material Nickel-Plated Brass / Stainless Steel
Contact Material Silver Alloy
Contact Resistance ≤50 mΩ
Insulation Resistance ≥100 MΩ @ 500VDC
Rated Voltage 250VAC / 36VDC
Rated Current 2A–3A (depending on model)
Dielectric Strength 1000VAC for 1 Minute
Mechanical Life More than 500, 000 Operations
Electrical Life More than 50, 000 Operations
Operating Temperature -20°C to +55°C
Protection Rating IP65 (Front Panel)
Terminal Type Pin Terminal
Panel Thickness 1–8 mm
Mounting Method Panel Mount with Hex Nut
Body Finish Brushed Stainless Steel
Approximate Dimensions
Dimension Size
Mounting Hole 16 mm
Button Head Diameter 18 mm
Overall Body Diameter 16 mm
Thread Length 12–15 mm
Overall Length 30–35 mm
Terminal Length 6–8 mm
Features
Stainless steel metal construction
Momentary (Reset) operation
Flat metal actuator
2-pin terminal design
IP65 water and dust resistant front
Long mechanical life
Corrosion-resistant body
Easy panel installation
Compact and durable design
Reliable silver alloy contacts
Applications
Industrial Control Panels
Reset Buttons
Automation Systems
CNC Machines
Medical Equipment
Power Supplies
Test Equipment
Automotive Electronics
Battery Chargers
UPS Systems
Security Systems
Robotics Projects
DIY Electronic Projects
Electrical Control Boxes
Package Includes
1 × 16MM Metal Momentary Push Button Switch (2 Pin)
1 × Mounting Nut
1 × Rubber Waterproof O-Ring
This type of 16MM metal reset push button is widely used where a normally open (NO), momentary push-to-make switch is required. It provides excellent durability, reliable electrical performance, and a professional appearance for industrial and commercial equipment.
