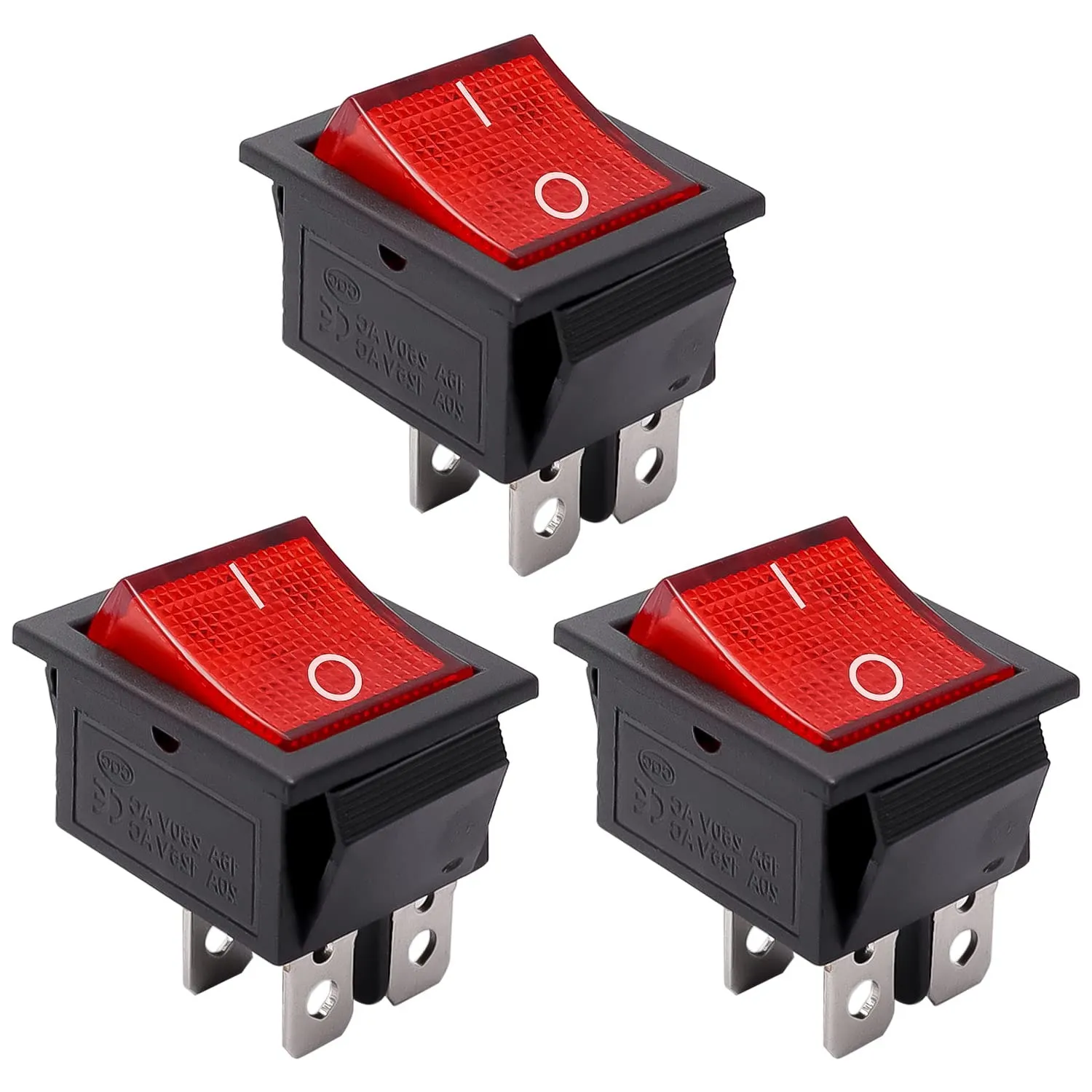

The switch shown is a KCD-4 heavy-duty panel-mount rocker switch. The KCD-4 family is available in several circuit configurations, but the 4-pin ON/OFF version shown is generally a DPST (Double Pole, Single Throw) rocker switch. Typical listings specify 16A at 250VAC and 20A at 125VAC.
General Specifications
Parameter Specification
Product Name KCD-4 Rocker Switch
Switch Type Rocker / Boat Switch
Model KCD-4
Number of Pins 4 Pin
Circuit Configuration DPST
Function ON / OFF
Positions 2 Position
Operation Maintained
Mounting Type Panel Mount / Snap-In
Actuator Rocker
Actuator Color Red
Housing Color Black
Indicator Red Illuminated Type*
Terminal Type Blade / Quick-Connect
Application Power ON/OFF Control
*The exact illumination arrangement depends on the particular KCD-4 variant.
Electrical Specifications
Parameter Typical Rating
Rated Voltage 250 VAC
Rated Current 16 A @ 250 VAC
Rated Current 20 A @ 125 VAC
Switch Configuration DPST
Contact Resistance ≤50 mΩ typical
Insulation Resistance ≥100 MΩ typical
Dielectric Strength ≥1500 VAC typical
Electrical Life Up to 10, 000–50, 000 cycles, variant dependent
Several current product listings confirm 16A/250VAC for KCD-4 4-pin versions; some specify 20A/125VAC as well.
Dimensions
A commonly sold KCD-4 version measures approximately 31–33 mm × 25 mm × 30–34 mm, depending on the housing and terminal/indicator configuration. One listing gives 31 × 25 × 34 mm, while another gives approximately 33 × 25 × 30 mm.
Dimension Approx.
Length 31–33 mm
Width 25 mm
Height 30–34 mm
Panel Cutout Approx. 31 × 22 mm
Number of Terminals 4
Important: KCD-4 dimensions are not completely standardized across manufacturers, so the panel cutout should be checked against the actual supplier drawing before production.
Material Specifications
Component Typical Material
Housing Flame-retardant thermoplastic
Rocker Polycarbonate / thermoplastic
Terminals Brass / copper alloy
Contacts Silver alloy / copper alloy
Terminal Finish Tin plated
Spring Stainless steel / spring steel
4-Pin DPST Working
The 4-pin version has two independent switching poles.
OFF:
Pole 1 → Open
Pole 2 → Open
ON:
Pole 1 → Closed
Pole 2 → Closed
This allows the switch to disconnect two circuits simultaneously, which is useful for switching both sides of a supply where a DPST configuration is required.
Features
Heavy-duty rocker design
4-pin DPST configuration
ON/OFF operation
Red illuminated rocker available
Snap-in panel mounting
No screws or nuts required for standard mounting
High-current switching capability
Easy quick-connect terminal wiring
Clearly marked I / O positions
Suitable for industrial and electrical equipment
Applications
Industrial control panels
Power supplies
Inverters
Motor control equipment
Water dispensers
Electrical appliances
Machinery
Automation equipment
Laboratory equipment
Automotive and DC applications
Electronic instruments
Control cabinets
Operating Temperature
A commonly specified range is approximately -25°C to +85°C.
Product Description for Switch Mart
KCD-4 4 Pin 16A 250V AC Red Illuminated DPST ON/OFF Rocker Switch
The KCD-4 is a heavy-duty panel-mount rocker switch designed for reliable ON/OFF control of electrical equipment. Its 4-pin DPST configuration allows two circuits/poles to be switched simultaneously. The snap-in mounting system provides quick installation, while the red rocker provides clear visual indication of the switch position. Typical KCD-4 versions are rated up to 16A at 250VAC.
SEO Keywords
KCD-4 Rocker Switch, KCD4 4 Pin Rocker Switch, 16A 250V Rocker Switch, DPST Rocker Switch, Heavy Duty Rocker Switch, Red Rocker Switch, Illuminated Rocker Switch, Boat Rocker Switch, Panel Mount Rocker Switch, ON OFF Rocker Switch, 4 Pin Rocker Switch.
General Specifications
Parameter Specification
Product Name KCD-4 Rocker Switch
Switch Type Rocker / Boat Switch
Model KCD-4
Number of Pins 4 Pin
Circuit Configuration DPST
Function ON / OFF
Positions 2 Position
Operation Maintained
Mounting Type Panel Mount / Snap-In
Actuator Rocker
Actuator Color Red
Housing Color Black
Indicator Red Illuminated Type*
Terminal Type Blade / Quick-Connect
Application Power ON/OFF Control
*The exact illumination arrangement depends on the particular KCD-4 variant.
Electrical Specifications
Parameter Typical Rating
Rated Voltage 250 VAC
Rated Current 16 A @ 250 VAC
Rated Current 20 A @ 125 VAC
Switch Configuration DPST
Contact Resistance ≤50 mΩ typical
Insulation Resistance ≥100 MΩ typical
Dielectric Strength ≥1500 VAC typical
Electrical Life Up to 10, 000–50, 000 cycles, variant dependent
Several current product listings confirm 16A/250VAC for KCD-4 4-pin versions; some specify 20A/125VAC as well.
Dimensions
A commonly sold KCD-4 version measures approximately 31–33 mm × 25 mm × 30–34 mm, depending on the housing and terminal/indicator configuration. One listing gives 31 × 25 × 34 mm, while another gives approximately 33 × 25 × 30 mm.
Dimension Approx.
Length 31–33 mm
Width 25 mm
Height 30–34 mm
Panel Cutout Approx. 31 × 22 mm
Number of Terminals 4
Important: KCD-4 dimensions are not completely standardized across manufacturers, so the panel cutout should be checked against the actual supplier drawing before production.
Material Specifications
Component Typical Material
Housing Flame-retardant thermoplastic
Rocker Polycarbonate / thermoplastic
Terminals Brass / copper alloy
Contacts Silver alloy / copper alloy
Terminal Finish Tin plated
Spring Stainless steel / spring steel
4-Pin DPST Working
The 4-pin version has two independent switching poles.
OFF:
Pole 1 → Open
Pole 2 → Open
ON:
Pole 1 → Closed
Pole 2 → Closed
This allows the switch to disconnect two circuits simultaneously, which is useful for switching both sides of a supply where a DPST configuration is required.
Features
Heavy-duty rocker design
4-pin DPST configuration
ON/OFF operation
Red illuminated rocker available
Snap-in panel mounting
No screws or nuts required for standard mounting
High-current switching capability
Easy quick-connect terminal wiring
Clearly marked I / O positions
Suitable for industrial and electrical equipment
Applications
Industrial control panels
Power supplies
Inverters
Motor control equipment
Water dispensers
Electrical appliances
Machinery
Automation equipment
Laboratory equipment
Automotive and DC applications
Electronic instruments
Control cabinets
Operating Temperature
A commonly specified range is approximately -25°C to +85°C.
Product Description for Switch Mart
KCD-4 4 Pin 16A 250V AC Red Illuminated DPST ON/OFF Rocker Switch
The KCD-4 is a heavy-duty panel-mount rocker switch designed for reliable ON/OFF control of electrical equipment. Its 4-pin DPST configuration allows two circuits/poles to be switched simultaneously. The snap-in mounting system provides quick installation, while the red rocker provides clear visual indication of the switch position. Typical KCD-4 versions are rated up to 16A at 250VAC.
