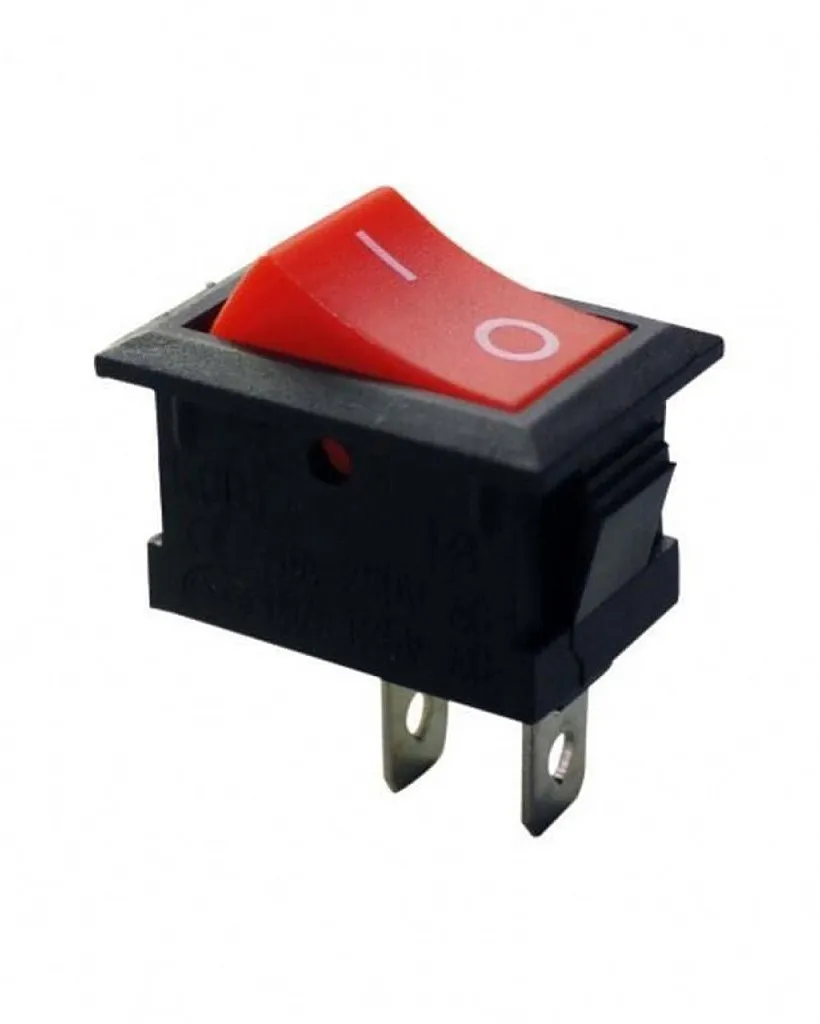

The switch shown is a 2 Pin ON/OFF Rocker Switch, commonly known as a KCD1-101 type boat rocker switch. It is a compact panel-mount switch used for basic ON/OFF control.
General Specifications
Parameter Specification
Product Name 2 Pin Rocker Switch
Type Rocker / Boat Switch
Model Type KCD1-101 Type
Number of Pins 2 Pin
Circuit SPST
Function ON / OFF
Contact Configuration 1NO (Single Pole, Single Throw)
Operation Maintained
Switch Position ON-OFF
Mounting Panel Mount
Termination Quick-Connect Blade Terminals
Actuator Color Red
Housing Color Black
Indicator Without Lamp / Non-Illuminated
Panel Cutout Approx. 19 × 13 mm
Electrical Specifications
Parameter Typical Specification
Rated Voltage 250 VAC
Rated Current 3 A @ 250 VAC
Rated Current 6 A @ 125 VAC
DC Rating Application dependent
Contact Resistance ≤50 mΩ
Insulation Resistance ≥100 MΩ
Dielectric Strength ≥1500 VAC
Electrical Life ≥10, 000 cycles
Note: Exact current/voltage ratings can vary between KCD1-101 manufacturers. Verify the rating printed on the particular switch before using it in a high-current application.
Mechanical Specifications
Parameter Approx. Value
Overall Length 21 mm
Overall Width 15 mm
Overall Height 25 mm
Panel Cutout 19 × 13 mm
Terminal Type 4.8 mm / 6.3 mm blade, depending on version
Mounting Type Snap-in
Number of Terminals 2
Material
Component Material
Housing Nylon / Thermoplastic
Rocker Nylon / Polycarbonate
Terminals Copper Alloy / Brass
Terminal Plating Tin Plated
Contact Material Silver Alloy / Copper Alloy
Environmental Specifications
Parameter Typical Value
Operating Temperature -20°C to +85°C
Storage Temperature -30°C to +85°C
Flame Rating UL94V-2 or better, depending on manufacturer
Humidity ≤95% RH, non-condensing
Features
2-terminal SPST ON/OFF design
Compact boat-style rocker
Red rocker actuator
Black plastic body
Snap-in panel mounting
Easy wiring using blade terminals
Maintained ON/OFF operation
Suitable for AC switching applications
Compact and economical design
Available in illuminated and non-illuminated versions
Terminal Connection
Pin 1 → Supply/Input
Pin 2 → Load/Output
When the rocker is ON, the two terminals are electrically connected. When OFF, the circuit is open.
Applications
Electrical control panels
Power supplies
Industrial equipment
Inverters
Battery-powered equipment
Electronic instruments
Automotive accessories
Home appliances
LED lighting
DIY electronics
Machinery control systems
Product Name for Switch Mart
2 Pin KCD1-101 Red Rocker Switch – SPST ON/OFF Non-Illuminated
Keywords: 2 Pin Rocker Switch, KCD1-101 Rocker Switch, Boat Rocker Switch, SPST Rocker Switch, ON OFF Rocker Switch, Red Rocker Switch, Panel Mount Rocker Switch, 2 Terminal Rocker Switch.
