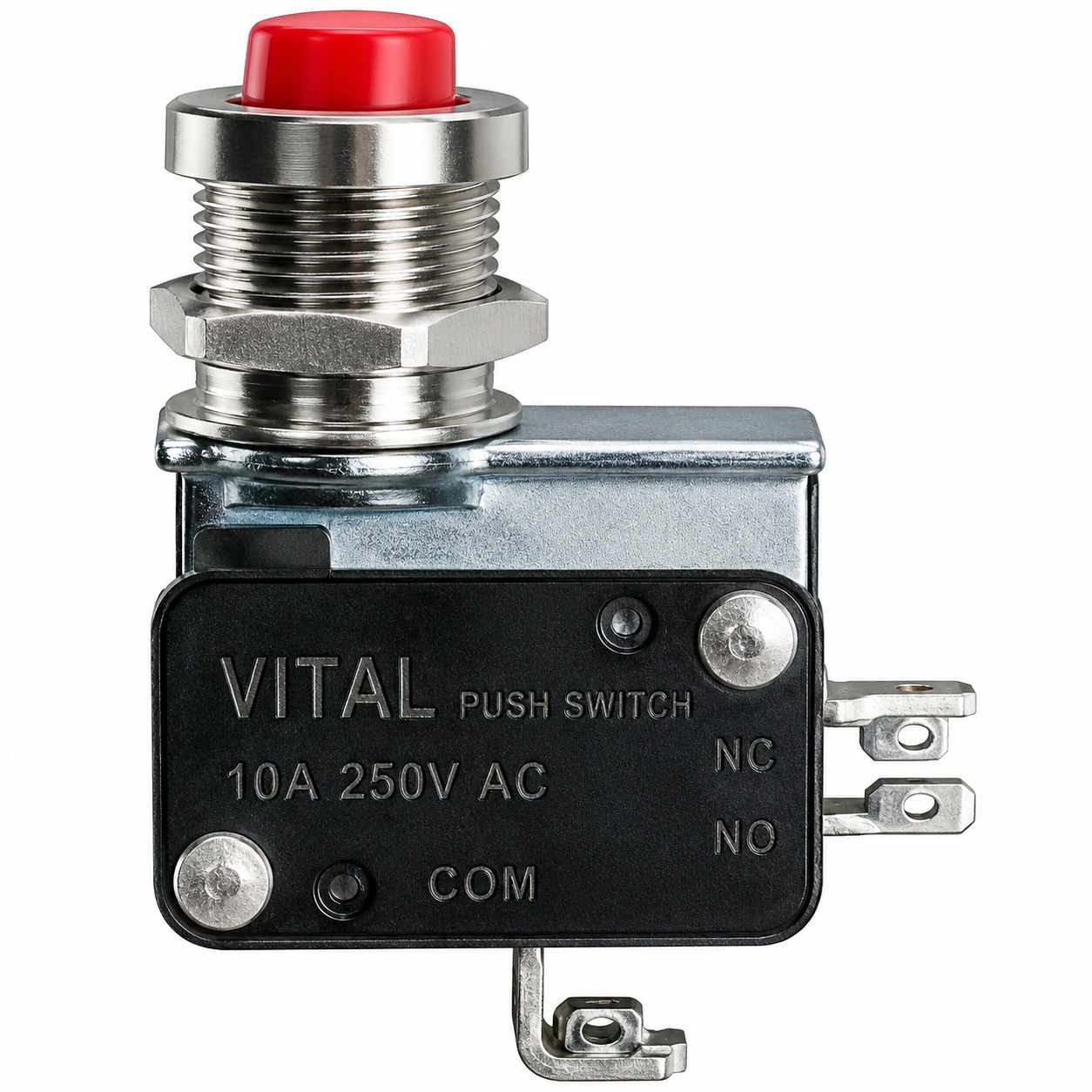

The product shown in the image is a VITAL Finger Push Switch, a heavy-duty momentary limit switch with a red finger push actuator. It is widely used in industrial machines, hoists, cranes, control panels, and automation equipment. Technical Specifications Parameter Specification Product Name VITAL Finger Push Switch Brand VITAL Switch Type Finger Push Limit Switch Actuator Type Red Push Button Operation Momentary (Spring Return) Contact Configuration 1NO + 1NC (SPDT) Terminal Type Quick Connect / Solder Lug Rated Voltage 250 VAC Rated Current 10A Contact Material Silver Alloy Housing Material High-Strength Thermoplastic Cover Material Metal Protective Cover Actuator Material Engineering Plastic Thread Material Nickel-Plated Brass Mounting Type Panel Mount Mounting Hole Diameter 16 mm (Approx.) Thread Size M16 × 1.5 (Approx.) Contact Resistance ≤50 mΩ Insulation Resistance ≥100 MΩ at 500 VDC Dielectric Strength 1500 VAC for 1 Minute Mechanical Life 1, 000, 000 Operations Electrical Life 100, 000 Operations Operating Temperature -25°C to +85°C Protection Rating IP40 (Front Panel, Typical) Compliance RoHS Compliant Contact Diagram Terminal Function COM Common NO Normally Open NC Normally Closed Approximate Dimensions Dimension Size Mounting Hole 16 mm Button Diameter 12 mm Overall Height 55–60 mm Switch Body Width 40 mm Switch Body Height 30 mm Thread Length 20 mm Features Heavy-duty industrial design Smooth finger push operation Momentary spring return mechanism 1NO + 1NC contacts High-quality silver alloy contacts Metal threaded body for secure mounting Long mechanical and electrical life Easy installation Reliable switching performance Corrosion-resistant construction Low contact resistance Suitable for continuous industrial use Applications Industrial Control Panels Electric Hoists Chain Pulley Blocks Cranes Conveyor Systems Packaging Machines CNC Machines Hydraulic Equipment Textile Machinery Power Distribution Panels Automation Systems Safety Interlock Circuits Machine Tools Material Handling Equipment Package Includes 1 × VITAL Finger Push Switch Mounting Nut Pre-installed NO/NC Contact Block SEO Keywords VITAL Finger Push Switch VITAL Push Button Switch Industrial Finger Push Switch 10A 250V AC Push Switch VITAL Momentary Push Switch Red Push Button Limit Switch SPDT Push Switch 1NO 1NC Push Button Switch Panel Mount Finger Push Switch Heavy Duty Industrial Push Switch Note: The image marking shows 10A 250V AC with COM, NO, and NC terminals, indicating a 1NO + 1NC SPDT momentary finger push switch. Actual dimensions may vary slightly depending on the exact VITAL model.
