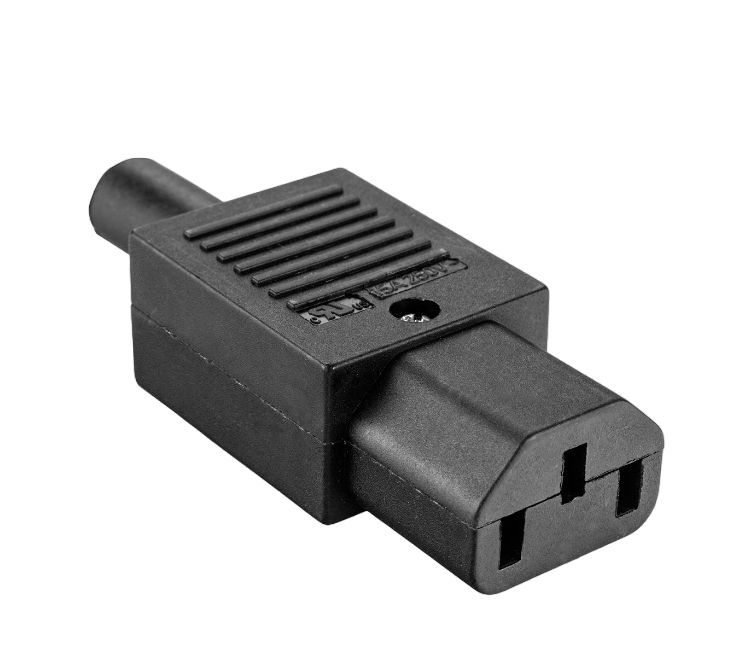

Model: ELCOM EMO-40-X
Type: Rewirable IEC Connector (C13 Female)
Application: Power connection for computers, SMPS, UPS, electronic equipment
⚡ Electrical Specifications
Rated Voltage: 250 VAC
Rated Current:
10A (VDE)
15A (UL)
Contact Resistance: ≤ 10 mΩ
Insulation Resistance: ≥ 100 MΩ @ 500V DC
Dielectric Strength (Hi-Pot): 2 KV AC (1 minute)
🔧 Mechanical / Functional Specifications
Connector Type: Free hanging (inline)
Number of Pins: 3 (L, N, Earth)
Termination Type: Screw / pillar-type wire insertion
Cable Size:
Min: 0.75 sq.mm
Max: 1.0 sq.mm
Screw Torque: 4 kg·cm
Mounting: Cable mount (rewirable)
🌡️ Operating Conditions
Operating Temperature:
0°C to 70°C (VDE)
0°C to 65°C (UL)
Up to 125°C (special version)
🧱 Material Details
Body & Cable Clamp: Nylon-6, Glass Filled (GF 20%), UL94 V-2
Cable Guide: PVC
Contacts/Terminals: Brass with Nickel Plating
Screws: Mild Steel with Zinc Plating
📏 Standards & Approvals
Standards:
IEC 60320-1
IEC 60320-3
UL 498
CSA C22.2 No.182.3
Approvals: VDE, cULus
Compliance: CE, RoHS
