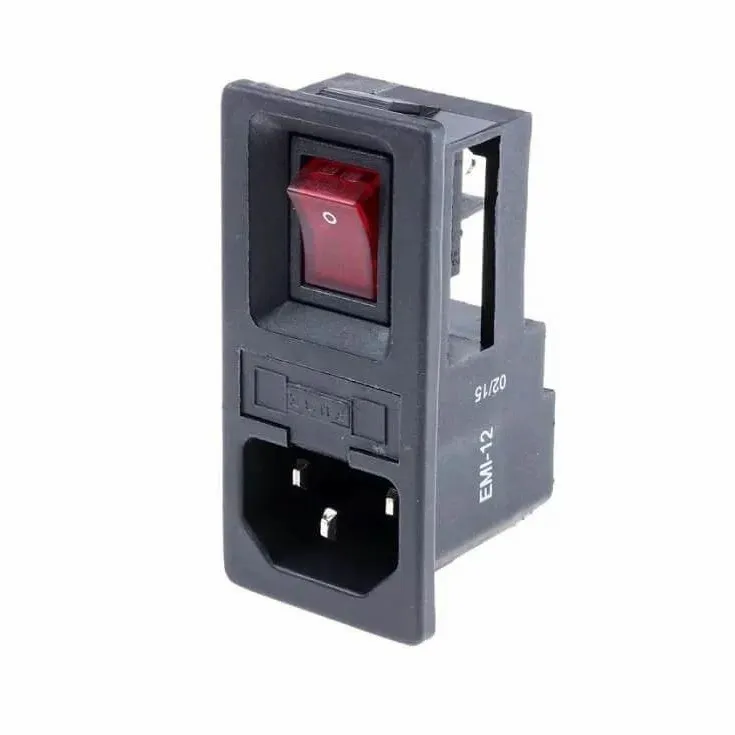

The EMI-12 from ELCOM is a compact IEC C14 Power Entry Module that combines an IEC inlet, illuminated rocker switch, and fuse holder into a single panel-mounted unit. It is widely used in power supplies, industrial control panels, medical equipment, UPS systems, laboratory instruments, and automation equipment.
Technical Specifications
Parameter Specification
Product Name EMI-12 IEC Power Entry Module
Brand ELCOM
IEC Connector Type IEC 60320 C14 Inlet
Rated Voltage 250V AC
Rated Current 10A Maximum
Standard Switch Rating 4A
Optional Switch Ratings 6A / 10A
Fuse Holder 5×20 mm Slow Blow Fuse
Switch Type Illuminated Rocker Switch (DPST)
Mounting Style Snap-in Panel Mount
Panel Thickness 0.8 mm – 2.5 mm
Terminal Type Solder or Fast-on (4.8 mm)
Contact Resistance ≤10 mΩ
Insulation Resistance ≥1000 MΩ @ 500V DC
Dielectric Strength 2 kV AC for 1 Minute
Operating Temperature -25°C to +70°C
Soldering Temperature 270°C for 5 Seconds Max
Housing Material Nylon-6, Glass Filled (GF20%, V-2)
Terminal Material Brass with Tin Plating
Contact Material Brass/Copper Alloy with Silver-Plated Switch Contacts
Certifications CE, RoHS, cCSAus
Reference Standards IEC 60320-1, IEC 61058-1, IEC 60127-6
Features
IEC C14 AC power inlet
Built-in illuminated ON/OFF rocker switch
Integrated fuse holder for circuit protection
Compact 3-in-1 power entry solution
Snap-in panel mounting for quick installation
Low contact resistance for efficient power transfer
High insulation resistance and dielectric strength
Available with solder or Fast-on terminals
Durable flame-retardant nylon housing
Suitable for continuous industrial operation
Applications
Industrial control panels
Medical equipment
Laboratory instruments
UPS systems
Battery chargers
Test & measurement equipment
Power supplies
Audio amplifiers
Automation machines
Telecom equipment
Package Includes
1 × EMI-12 IEC C14 Power Entry Module
Built-in Illuminated Rocker Switch
Integrated 5×20 mm Fuse Holder
(Fuse supplied depending on model/vendor)
