EMI-12 ELCOM IN DELHI NCR

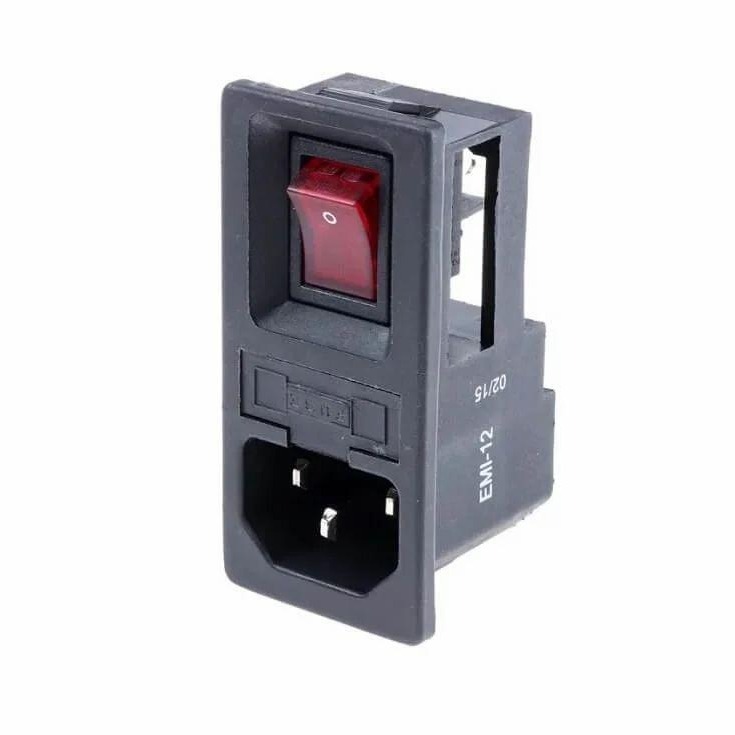

The EMI-12 from ELCOM is a compact IEC C14 Power Entry Module that combines an IEC inlet, illuminated rocker switch, and fuse holder into a single panel-mounted unit. It is widely used in power supplies, industrial control panels, medical equipment, UPS systems, laboratory instruments, and automation equipment. Technical Specifications Parameter Specification Product Name EMI-12 IEC Power Entry Module Brand ELCOM IEC Connector Type IEC 60320 C14 Inlet Rated Voltage 250V AC Rated Current 10A Maximum Standard Switch Rating 4A Optional Switch Ratings 6A / 10A Fuse Holder 5×20 mm Slow Blow Fuse Switch Type Illuminated Rocker Switch (DPST) Mounting Style Snap-in Panel Mount Panel Thickness 0.8 mm – 2.5 mm Terminal Type Solder or Fast-on (4.8 mm) Contact Resistance ≤10 mΩ Insulation Resistance ≥1000 MΩ @ 500V DC Dielectric Strength 2 kV AC for 1 Minute Operating Temperature -25°C to +70°C Soldering Temperature 270°C for 5 Seconds Max Housing Material Nylon-6, Glass Filled (GF20%, V-2) Terminal Material Brass with Tin Plating Contact Material Brass/Copper Alloy with Silver-Plated Switch Contacts Certifications CE, RoHS, cCSAus Reference Standards IEC 60320-1, IEC 61058-1, IEC 60127-6 Features IEC C14 AC power inlet Built-in illuminated ON/OFF rocker switch Integrated fuse holder for circuit protection Compact 3-in-1 power entry solution Snap-in panel mounting for quick installation Low contact resistance for efficient power transfer High insulation resistance and dielectric strength Available with solder or Fast-on terminals Durable flame-retardant nylon housing Suitable for continuous industrial operation Applications Industrial control panels Medical equipment Laboratory instruments UPS systems Battery chargers Test & measurement equipment Power supplies Audio amplifiers Automation machines Telecom equipment Package Includes 1 × EMI-12 IEC C14 Power Entry Module Built-in Illuminated Rocker Switch Integrated 5×20 mm Fuse Holder (Fuse supplied depending on model/vendor) SEO Keywords EMI-12 Power Entry Module ELCOM EMI-12 IEC C14 Power Inlet AC Power Entry Module IEC Inlet with Switch IEC Inlet with Fuse Holder Illuminated Power Entry Module Panel Mount IEC Connector Industrial AC Power Socket Switch Mart India EMI-12 Connector
