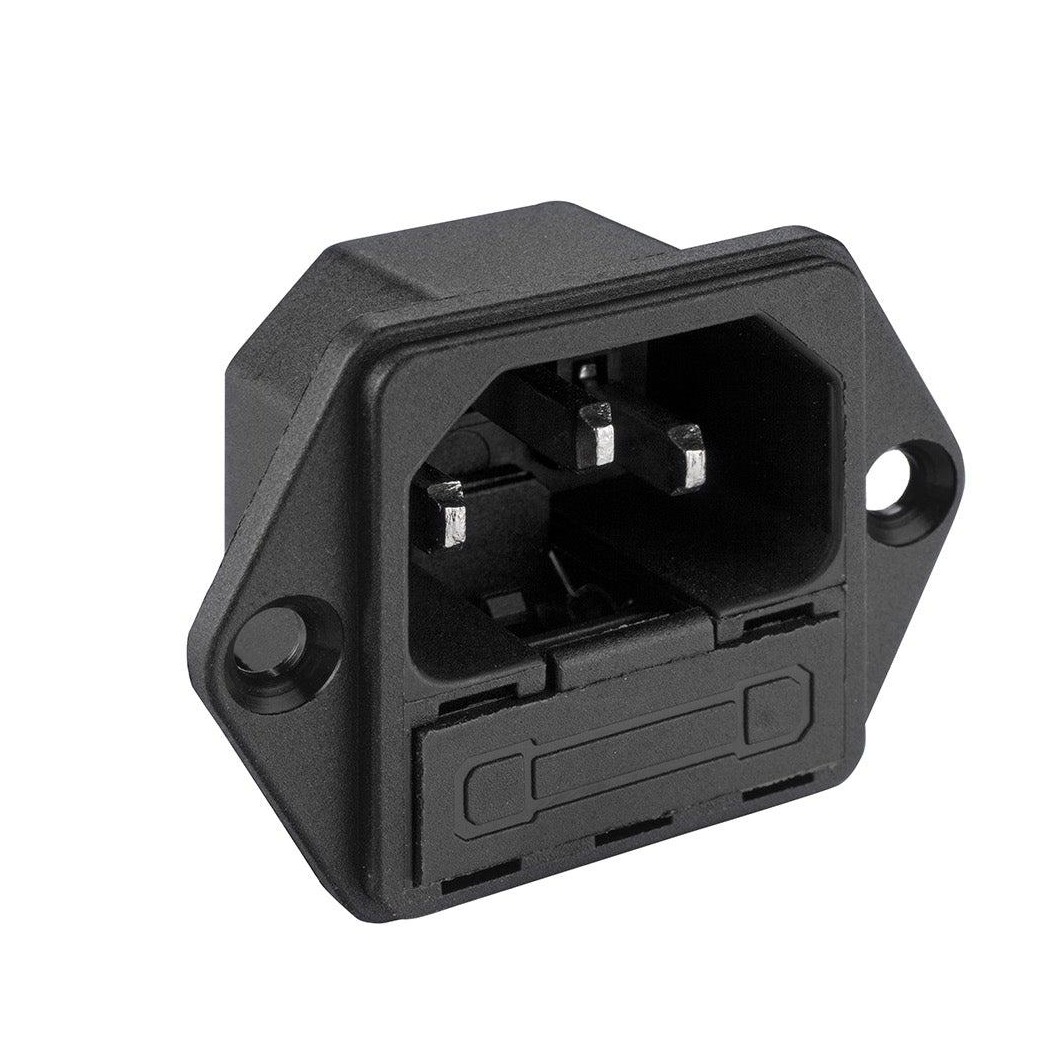

The ELCOM EMI-21 is a panel-mount IEC 60320 C14 Power Entry Inlet designed for AC power input applications. It is widely used in computers, UPS systems, industrial control panels, laboratory instruments, medical equipment, and electronic devices. The inlet provides a secure and reliable mains power connection and is available in versions with fuse holders.
Technical Specifications
Parameter Specification
Product Type IEC Power Entry Inlet
IEC Standard IEC 60320 C14
Rated Voltage 250V AC
Rated Current 10A
Mounting Type Panel Mount, Screw Type
Terminal Type Solder / Fast-On 4.8 mm
Contact Resistance 20 mΩ Max
Insulation Resistance 1000 MΩ Min @ 500V DC
Dielectric Strength 2 KV AC for 1 Minute
Operating Temperature -25°C to +70°C
Soldering Temperature 270°C for 5 Seconds Max
Body Material Nylon-6, GF20%, V-2
Terminal Material Brass, Tin/Nickel Plated
Contact Material Brass/Copper Alloy, Tin/Nickel Plated
Compliance CE, RoHS
Approvals cCSAus
Reference Standards IEC 60320-1, IEC 60127-6, CSA C22.2 No.60320-1-11
Mechanical Dimensions (Typical)
Dimension Size
Overall Length 44.2 mm
Overall Width 31.3 mm
Panel Cutout Length 36.2 mm
Panel Cutout Width 29.0 mm
Mounting Holes 2 Nos. Screw Mounting
Dimensions may vary slightly depending on the terminal configuration.
Features
Standard IEC C14 AC power inlet
Robust screw-mount design
High insulation resistance
Flame-retardant Nylon housing
RoHS compliant
Suitable for industrial and commercial equipment
Available with fuse drawer variants
Reliable electrical performance
Long service life
Easy panel installation
