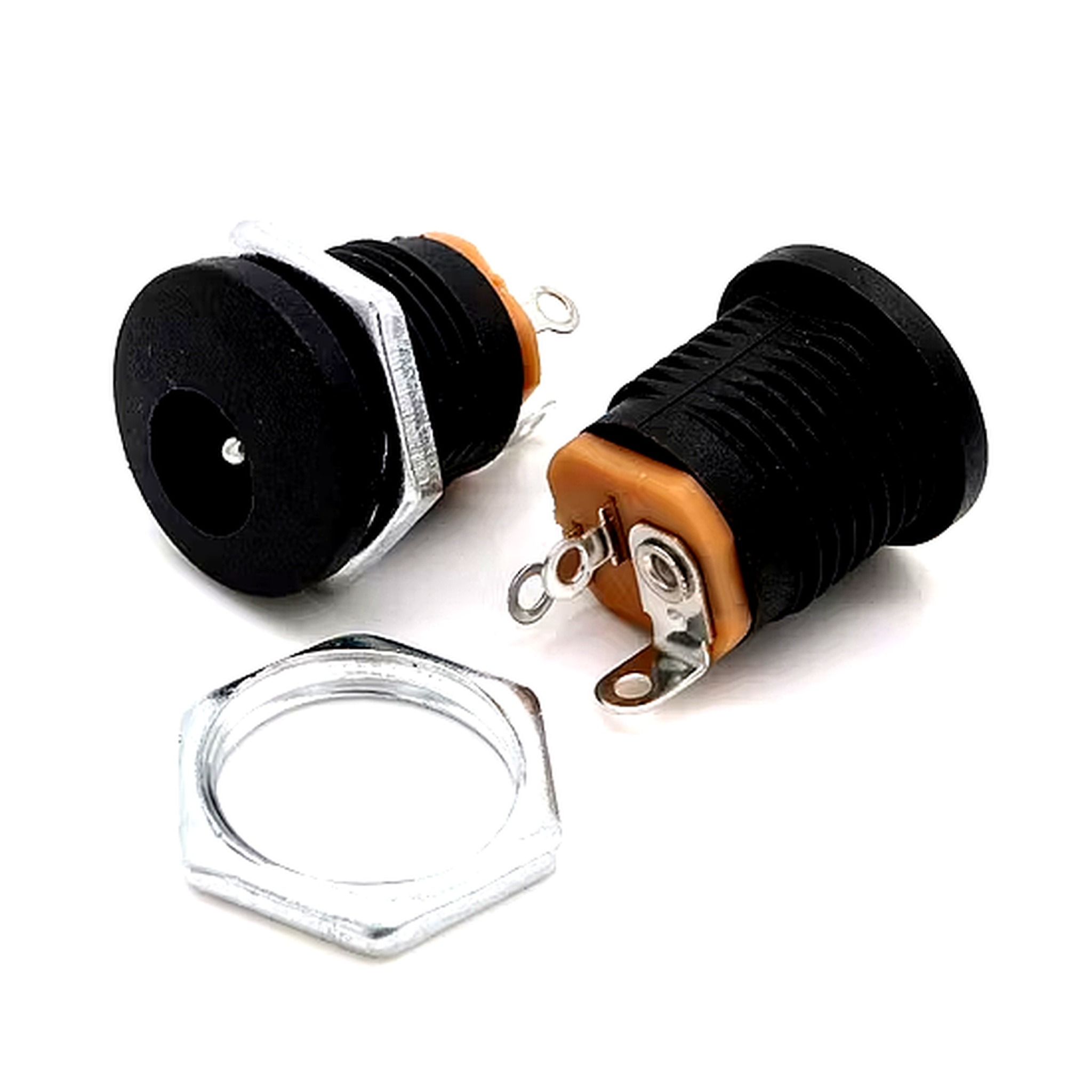

Model: DC-022
Type: DC Power Socket / Female Jack
Mounting Type: Panel Mount (Threaded with nut)
Pin Configuration: 3 Pins (with switch)
⚙️ Electrical Specifications
Rated Voltage: 12V DC (typical)
Rated Current: 3A – 5A
Contact Resistance: ≤ 0.03Ω
Insulation Resistance: ≥ 100MΩ
Withstand Voltage: 500V AC (1 minute)
🔧 Mechanical Specifications
Connector Size:
Outer Diameter: 5.5 mm
Inner Diameter: 2.1 mm / 2.5 mm (depending on variant)
Mounting Hole Diameter: ~ 8 mm
Thread Size: M8 (approx.)
Insertion Force: Moderate (firm plug fit)
Life Cycle: 5, 000 – 10, 000 insertion cycles
🧱 Material
Housing: Plastic (PA66 / Nylon)
Contacts: Copper alloy with nickel plating
Nut & Washer: Metal (Nickel plated)
🔄 Pin Configuration
Pin 1: Positive (+)
Pin 2: Negative (GND)
Pin 3: Switch terminal
