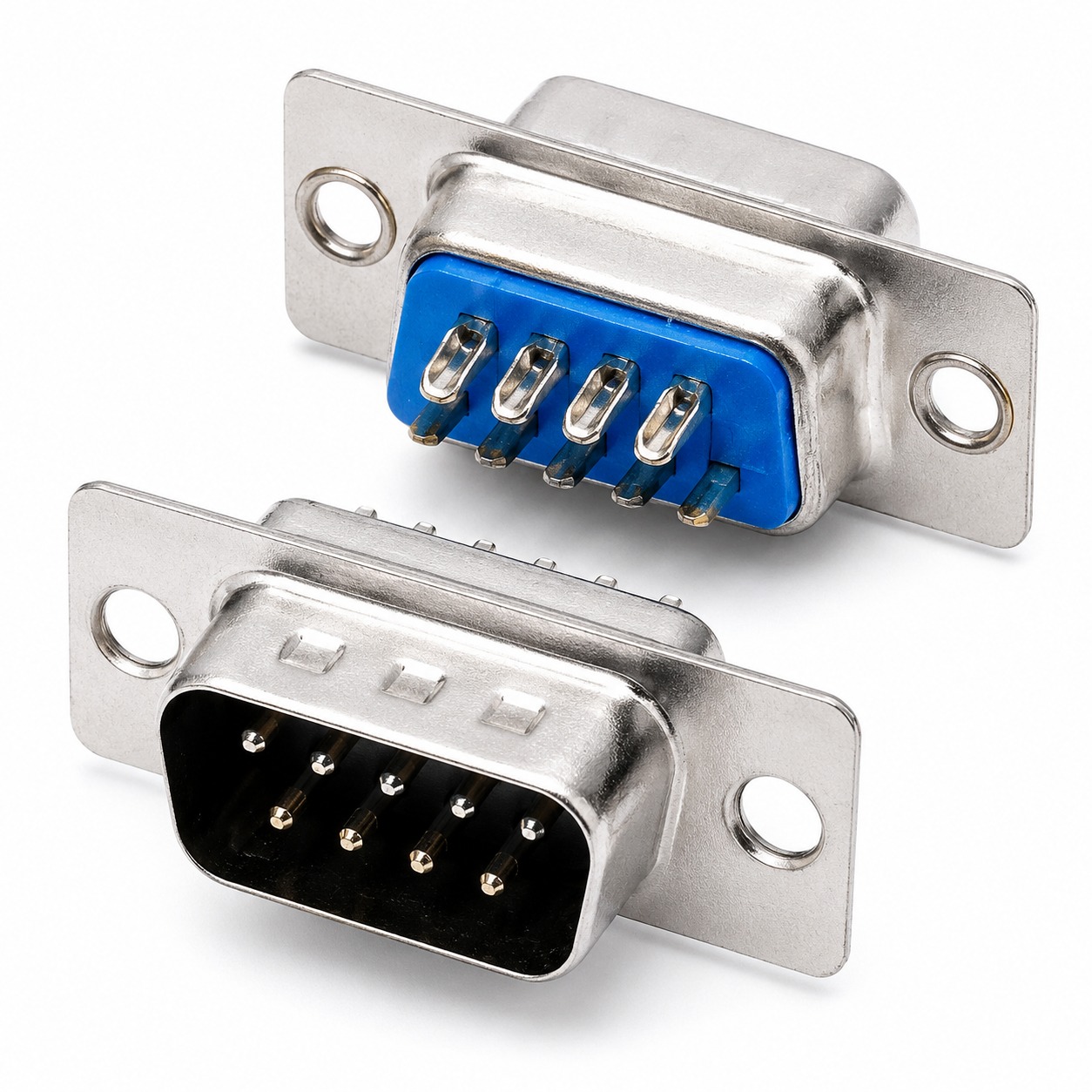

General Information Product Type: DB-9 Male D-Sub Connector Connector Series: D-Subminiature (D-SUB) Gender: Male Number of Pins: 9 Pins Mounting Type: Panel Mount / PCB Mount Orientation: Straight ⚙️ Electrical Specifications Rated Voltage: 250V AC RMS Rated Current: 3A per contact Contact Resistance: ≤ 20mΩ Insulation Resistance: ≥ 1000MΩ at 500V DC Dielectric Strength: 1000V AC for 1 minute 🔩 Mechanical Specifications Connector Type: D-SUB 9 Pin Male Termination Type: Solder Cup / PCB Pin Mounting Style: Flange mount with locking holes Mating Cycles: ≥ 500 insertion cycles Locking System: Standard D-SUB screw lock compatible 🧱 Material Details Shell Material: Steel with nickel plating Contact Material: Copper alloy Contact Finish: Gold flash plated over nickel Insulator Material: PBT / Thermoplastic (Black color)
