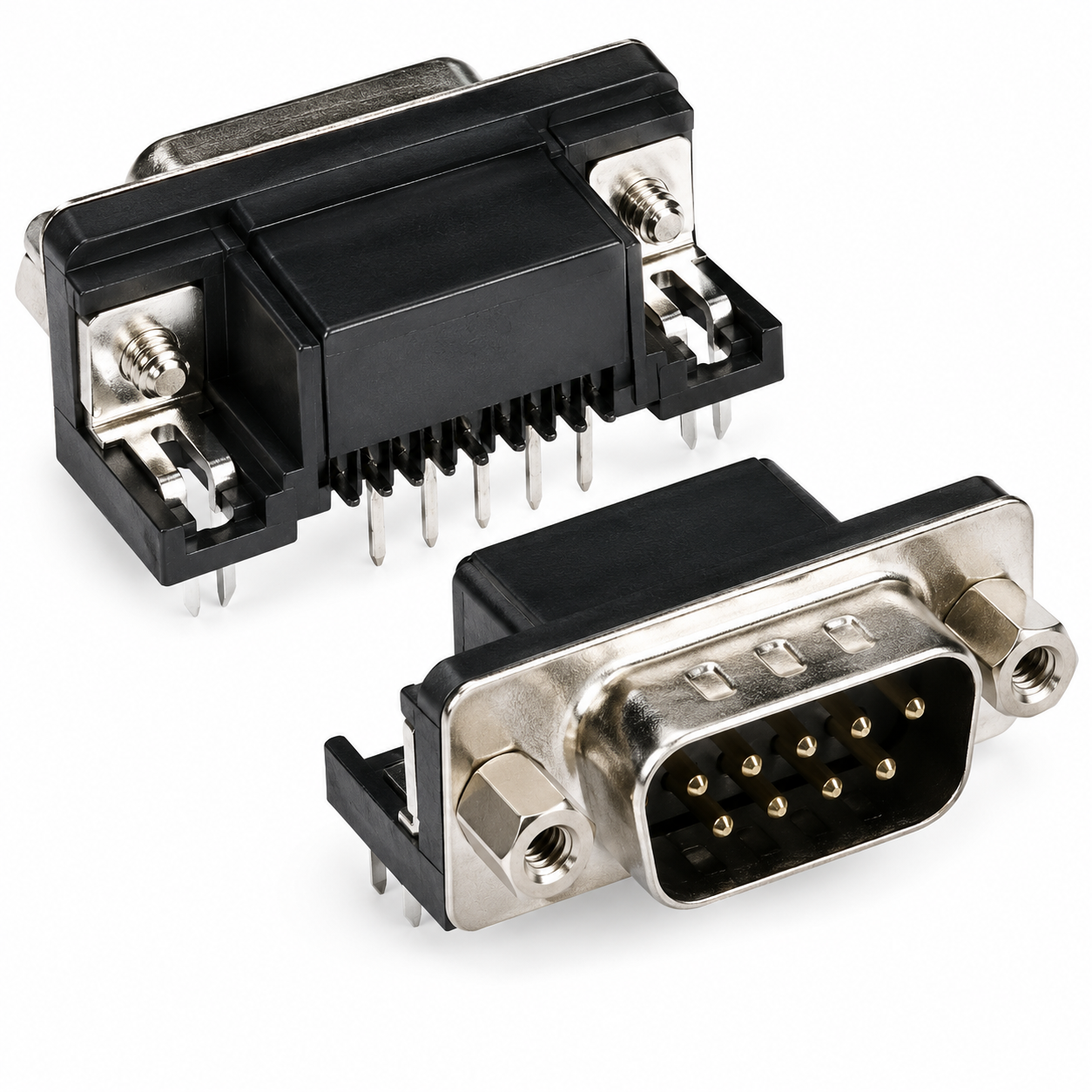

Product Name: DB9 RA Connector
Type: D-Subminiature Connector
Orientation: Right Angle (RA) / 90° PCB Mount
Gender: Male
Number of Pins: 9 Pins
Mounting Type: Through Hole PCB Mount
Connector Series: DB9 / DE-9
Mechanical Specifications
Length: 30 mm
Width: 16 mm
Height: 18 mm
Pitch: 2.77 mm
Shell Material: Nickel-Plated Steel
Insulator Material: PBT / High Temperature Thermoplastic
Contact Material: Copper Alloy
Contact Plating: Gold Plated Pins
Weight: Approx. 6 g
Electrical Specifications
Voltage Rating: 250V AC
Current Rating: 5A
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Dielectric Withstanding Voltage: 1000V AC for 1 Minute
Environmental Specifications
Operating Temperature: -55°C to +125°C
RoHS Compliance: Yes
Flammability Rating: UL94V-0 (Typical)
Features
Right-angle design saves PCB space
Through-hole solder terminals for strong mounting
Integrated screw-lock support
Gold-plated contacts for reliable signal transmission
Suitable for industrial and communication equipment
High durability metal shield construction
Applications
RS232 Serial Communication
Industrial Automation
PLC Interfaces
CNC Controllers
Embedded Systems
Computer Peripheral Devices
Instrumentation Equipment
