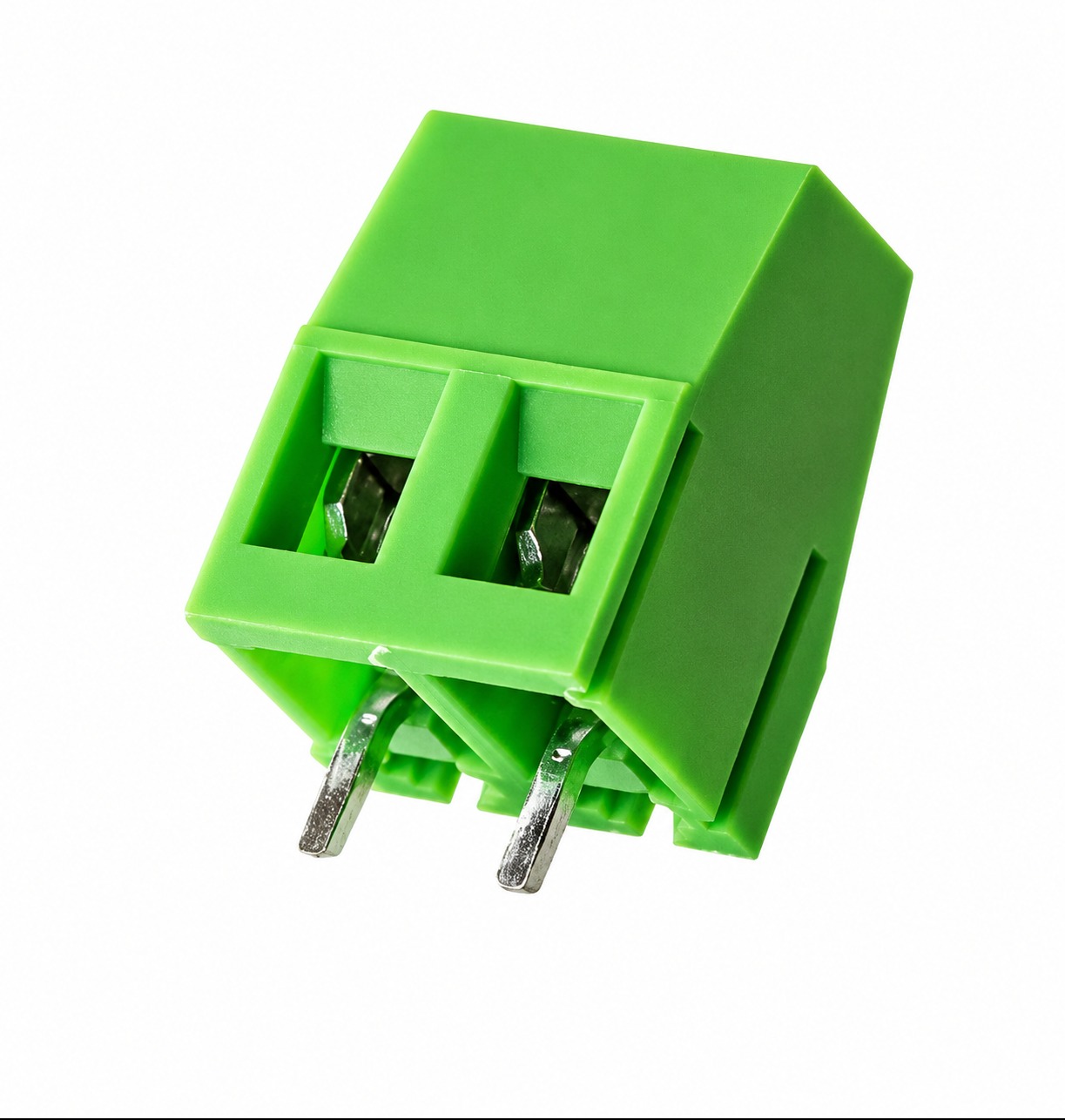

128/2 PIN PCB Terminal Block – Full Specification The 128/2 Pin PCB Terminal Block is a 2-position screw-type terminal block designed for secure wire-to-board connections in power supplies, industrial controls, LED drivers, automation systems, and electronic equipment. General Specifications Parameter Specification Product Name 128/2 Pin PCB Terminal Block Type PCB Mount Screw Terminal Block Number of Positions 2 Pin Pitch 5.08 mm Connection Type Screw Clamp Mounting Type Through Hole PCB Mount Wire Entry Side Entry Reusable Yes Electrical Specifications Parameter Specification Rated Voltage 300V AC Rated Current 10A Insulation Resistance ≥500 MΩ Contact Resistance ≤20 mΩ Withstanding Voltage 2 kV AC for 1 Minute Wire Compatibility Parameter Specification Wire Size 0.5–2.5 mm² AWG Range 24–12 AWG Strip Length 6–7 mm Material Specifications Component Material Housing Flame-Retardant PA66 (UL94V-0) Contact Tin-Plated Brass Screw Zinc-Plated Steel Clamp Copper Alloy Mechanical Specifications Parameter Approximate Value Number of Pins 2 Pitch 5.08 mm Length 10.16 mm Width 8.5 mm Height 10–12 mm Mounting Hole Diameter 1.3 mm Operating Temperature -40°C to +105°C Features Secure screw-clamp wire connection. High current carrying capability. Easy PCB mounting. Flame-retardant housing. Excellent mechanical strength. Reliable electrical contact. Corrosion-resistant terminals. Reusable and maintenance-friendly. Compact design for space-saving applications. Suitable for industrial and commercial electronics. Applications SMPS Power Supplies LED Drivers Industrial Control Panels Automation Equipment Inverters and UPS Systems Battery Chargers Instrumentation Devices PCB Power Distribution Electronic Control Boards Communication Equipment Package Contents 1 × 128/2 Pin PCB Terminal Block Advantages Quick and secure wire termination. Long operational life. Easy installation and maintenance. Excellent vibration resistance. Reliable performance in industrial environments. This specification is suitable for Switch Mart India product listings, catalogs, datasheets, and SEO content. I prefer this response
