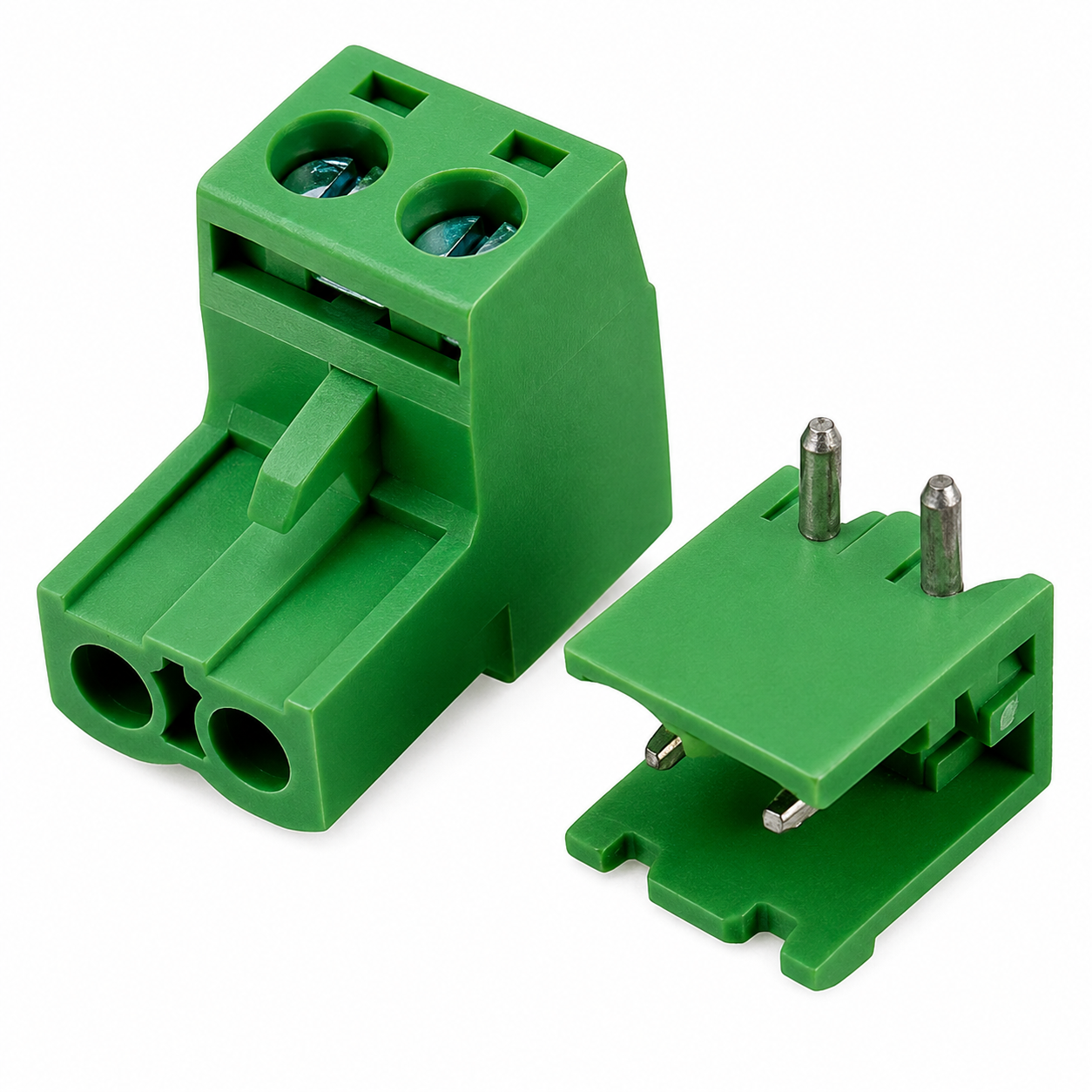

COMBICON Male Female Connector – Full Specification
Parameter Specification
Product Name COMBICON Pluggable Terminal Block
Type Male + Female Plug-in Connector
Number of Poles 2 Pin
Pitch 5.08 mm (Typical)
Connection Method Screw Clamp
Mounting Type PCB Through-Hole
Mating Type Plug & Socket
Rated Voltage 300V AC
Rated Current 10A – 15A
Wire Size 28–12 AWG (0.2–2.5 mm²)
Contact Material Brass
Contact Plating Tin Plated
Insulator Material PA66 Nylon
Flame Class UL94V-0
Insulation Resistance ≥ 5000 MΩ
Withstand Voltage 2000V AC / 1 Minute
Operating Temperature -40°C to +105°C
Color Green
Female Plug Dimensions (Typical)
Parameter Value
Length 10.16 mm
Width 15.0 mm
Height 18.0 mm
Pitch 5.08 mm
Male PCB Header Dimensions (Typical)
Parameter Value
Length 10.16 mm
Width 8.5 mm
Height Above PCB 8–10 mm
Pin Diameter 1.0 mm
Pitch 5.08 mm
Pin Configuration
Female Plug
┌─────────┐
│ 1 2 │
└─────────┘
Male Header
┌─────────┐
│ ● ● │
└─────────┘
1 2
Features
Removable plug-and-socket design
Secure screw-clamp wire termination
Easy maintenance and field replacement
Polarized housing prevents incorrect insertion
High insulation and vibration resistance
Suitable for industrial and power applications
Applications
PLC Systems
Industrial Control Panels
SMPS Power Supplies
Motor Controllers
Automation Equipment
Instrumentation Systems
Security Systems
LED Drivers
Communication Equipment
PCB Footprint (Typical)
Parameter Value
Pin Pitch 5.08 mm
Hole Diameter 1.3 – 1.5 mm
Recommended PCB Thickness 1.6 mm
Common Names: COMBICON Connector, Pluggable Terminal Block, Euroblock Connector, Phoenix-Type Connector, 2-Pin Plug-In Terminal Block (5.08 mm Pitch).
