COMBICON MALE FEMALE CONNECTOR IN DELHI

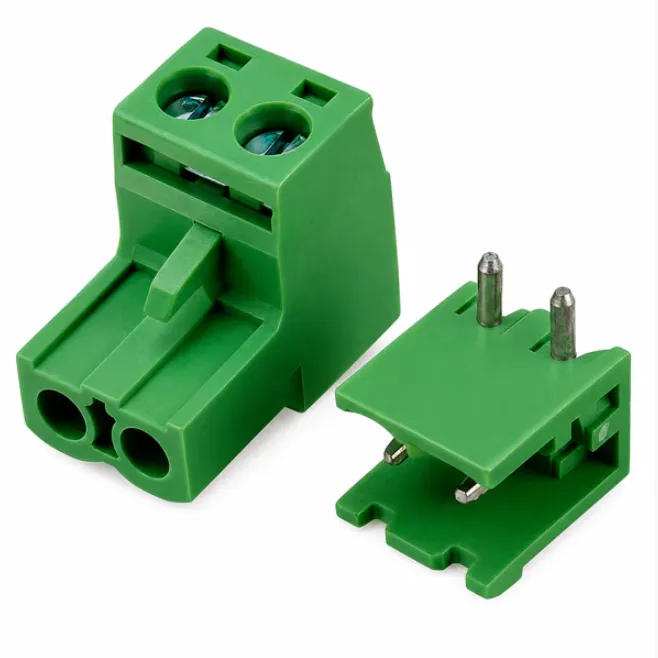

Based on the image, this is a 2 to12-Pin Pluggable COMBICON (Male + Female) PCB Terminal Block Connector, commonly used for removable wire-to-board connections in industrial electronics. 4 COMBICON Male Female Connector – Full Specification Parameter Specification Product Name COMBICON Pluggable Terminal Block Type Male + Female Plug-in Connector Number of Poles 2 Pin Pitch 5.08 mm (Typical) Connection Method Screw Clamp Mounting Type PCB Through-Hole Mating Type Plug & Socket Rated Voltage 300V AC Rated Current 10A – 15A Wire Size 28–12 AWG (0.2–2.5 mm²) Contact Material Brass Contact Plating Tin Plated Insulator Material PA66 Nylon Flame Class UL94V-0 Insulation Resistance ≥ 5000 MΩ Withstand Voltage 2000V AC / 1 Minute Operating Temperature -40°C to +105°C Color Green Female Plug Dimensions (Typical) Parameter Value Length 10.16 mm Width 15.0 mm Height 18.0 mm Pitch 5.08 mm Male PCB Header Dimensions (Typical) Parameter Value Length 10.16 mm Width 8.5 mm Height Above PCB 8–10 mm Pin Diameter 1.0 mm Pitch 5.08 mm Pin Configuration Female Plug
