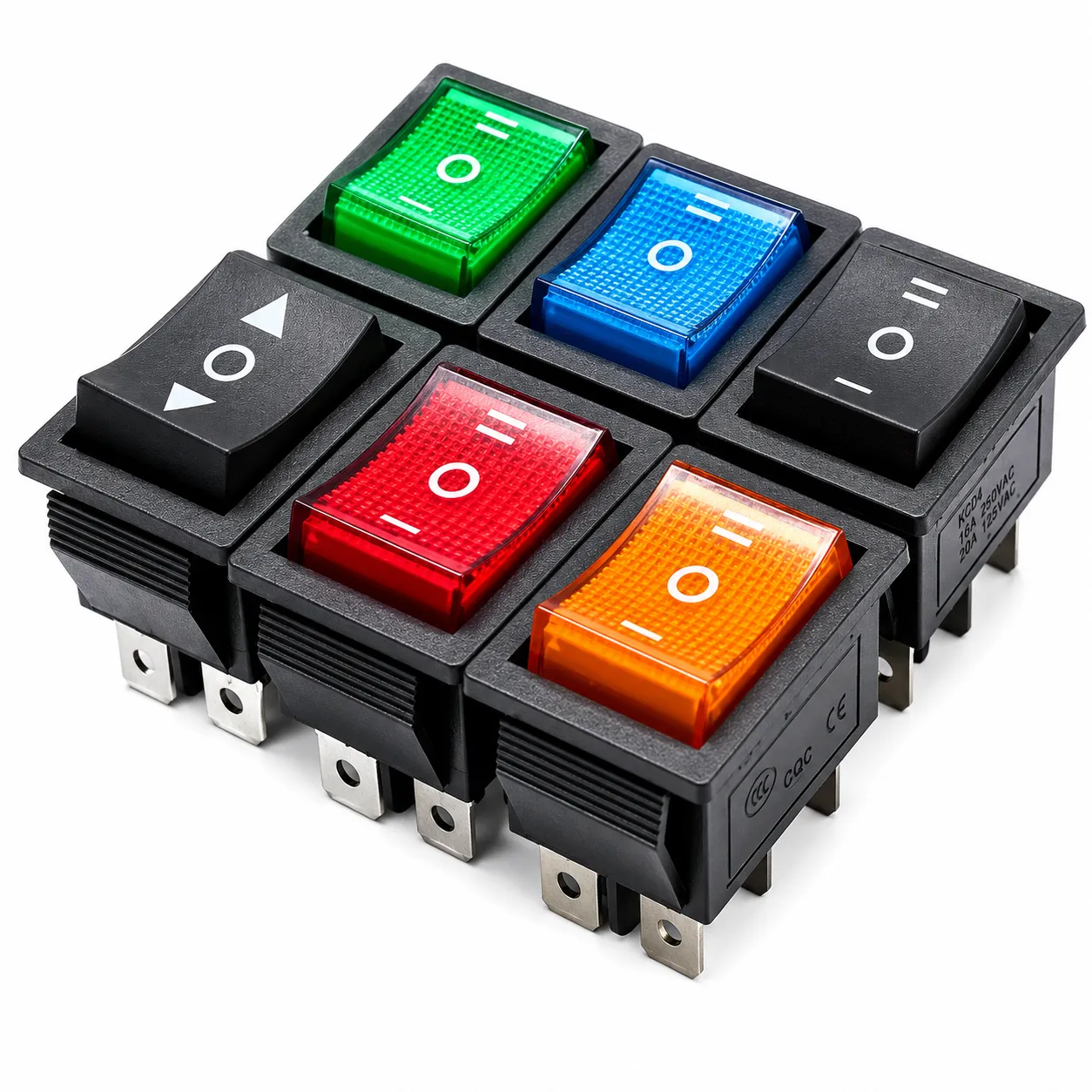

The switches shown in the image are Rectangular Rocker Switches available in illuminated and non-illuminated versions with various actuator colors (Red, Green, Blue, Amber, and Black). These switches are widely used in electrical panels, industrial equipment, power supplies, UPS systems, home appliances, and automation controls.
Technical Specifications
Parameter Specification
Product Name Rectangular Rocker Switch
Series KCD4 / KCD2 (Equivalent)
Switch Type Rocker Switch
Operation ON-OFF / ON-OFF-ON (Model Dependent)
Contact Configuration SPST / SPDT / DPST / DPDT (Depending on Model)
Number of Pins 2 Pin / 3 Pin / 4 Pin / 6 Pin
Illumination LED / Neon / Non-Illuminated
Indicator Colors Red, Green, Blue, Amber (Yellow), Black
Rated Voltage 125VAC / 250VAC
Rated Current 6A, 10A, 16A or 20A (Model Dependent)
Contact Resistance ≤50 mΩ
Insulation Resistance ≥100 MΩ at 500VDC
Dielectric Strength 1500VAC for 1 Minute
Electrical Life 10, 000 Cycles Minimum
Mechanical Life 50, 000–100, 000 Operations
Contact Material Silver Alloy
Terminal Material Tin-Plated Brass
Housing Material Flame Retardant Nylon (PA66)
Actuator Material Polycarbonate (PC)
Mounting Type Snap-in Panel Mount
Terminal Type Quick Connect / Solder Lug
Operating Temperature -25°C to +85°C
Storage Temperature -40°C to +85°C
Protection Rating IP40 (Front Panel)
Compliance CE, RoHS (Model Dependent)
Available Configurations
SPST ON-OFF (2 Pin)
SPST Illuminated (3 Pin)
SPDT ON-OFF-ON (3 Pin)
DPST ON-OFF (4 Pin)
DPDT ON-OFF-ON (6 Pin)
Standard Dimensions (Approx.)
Dimension Size
Overall Length 30 mm
Overall Width 25 mm
Overall Height 33 mm
Panel Cut-out 30 × 22 mm
Actuator Size 22 × 17 mm
Terminal Width 6.3 mm
Terminal Configuration
2 Pin (SPST)
Pin 1 ─── AC Input
Pin 2 ─── AC Output
3 Pin (Illuminated)
Pin 1 ─── Line (Input)
Pin 2 ─── Load (Output)
Pin 3 ─── Lamp Neutral
6 Pin (DPDT)
1 2 3
4 5 6
Suitable for polarity reversal,
motor control and change-over circuits.
Features
Heavy-duty snap-in panel mounting
Long electrical and mechanical life
Illuminated and non-illuminated options
Flame-retardant housing
Silver alloy contacts for reliable switching
Multiple switching configurations
Quick-connect terminals for easy wiring
Available in various actuator colors
Compact and durable construction
Applications
Industrial Control Panels
Power Supplies
UPS Systems
Inverters
Home Appliances
Battery Chargers
Automation Equipment
Medical Equipment
Laboratory Instruments
Audio & Video Equipment
Agricultural Machinery
Automotive Accessories
DIY Electronic Projects
Package Contents
1 × Rectangular Rocker Switch
