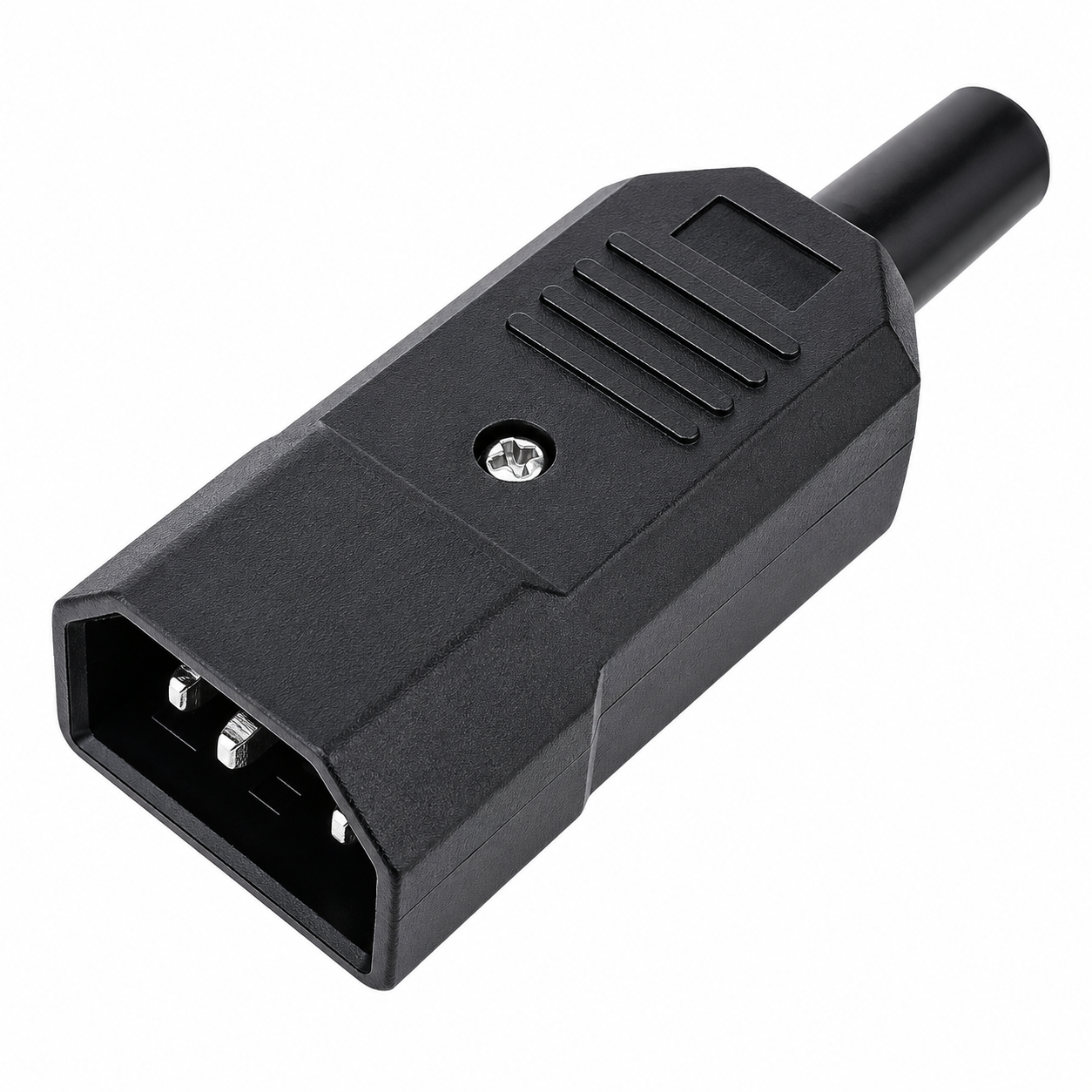

The product shown is an IEC 60320 C14 Male Plug, commonly used as a rewirable power connector for computers, monitors, UPS systems, power supplies, laboratory instruments, and industrial equipment. It mates with an IEC C13 Female Connector and provides a reliable AC power connection.
Technical Specifications
Parameter Specification
Product Name IEC 60320 C14 Male Plug
Connector Type IEC 60320 C14
Gender Male
Number of Pins 3 Pin
Rated Voltage 250V AC
Rated Current 10A
Frequency 50/60 Hz
Contact Resistance ≤ 10 mΩ
Insulation Resistance ≥ 100 MΩ
Dielectric Strength 2000V AC for 1 Minute
Body Material Thermoplastic, UL94 V-0
Contact Material Brass / Copper Alloy, Nickel Plated
Terminal Type Screw Terminal / Solder Terminal
Cable Entry Size 6–10 mm
Operating Temperature -25°C to +85°C
Flammability Rating UL94 V-0
Safety Standard IEC 60320-1
Compliance RoHS Compliant
Mechanical Dimensions (Approx.)
Dimension Size
Overall Length 70 mm
Width 28 mm
Height 23.5 mm
Front Face Height 21.5 mm
Side Profile Height 17 mm
Cable Entry Diameter 6–10 mm
Pin Configuration
Pin Function
L Live
N Neutral
E Earth (Ground)
Features
Standard IEC 60320 C14 male connector
Heavy-duty thermoplastic housing
Nickel-plated brass contacts
Secure screw-terminal wiring
Built-in cable strain relief
Flame-retardant body construction
Long mechanical life
Easy assembly and maintenance
Reliable electrical performance
Applications
Desktop Computers
LCD/LED Monitors
Printers
UPS Systems
PDU Units
SMPS Power Supplies
Industrial Equipment
Medical Devices
Audio/Video Equipment
Laboratory Instruments
Advantages
Universal IEC compatibility
Durable construction
Safe grounding connection
Excellent insulation properties
Suitable for commercial and industrial use
Easy field wiring and replacement
SEO Keywords
IEC 60320 C14 Male Plug, C14 Male Connector, C13 Male Plug, Computer Power Plug, IEC Power Connector, Rewirable C14 Plug, AC Power Plug, UPS Power Connector, IEC C14 Connector, Power Supply Plug, Industrial Power Connector, Switch Mart India.
Product Description
The IEC 60320 C14 Male Plug is a high-quality 3-pin AC power connector rated at 10A 250V AC. Manufactured from flame-retardant thermoplastic material with nickel-plated brass contacts, it ensures safe and reliable power transmission for computers, UPS systems, power supplies, industrial machinery, and electronic equipment. Its robust design, easy screw-terminal wiring, and IEC-standard compatibility make it ideal for professional electrical applications.
