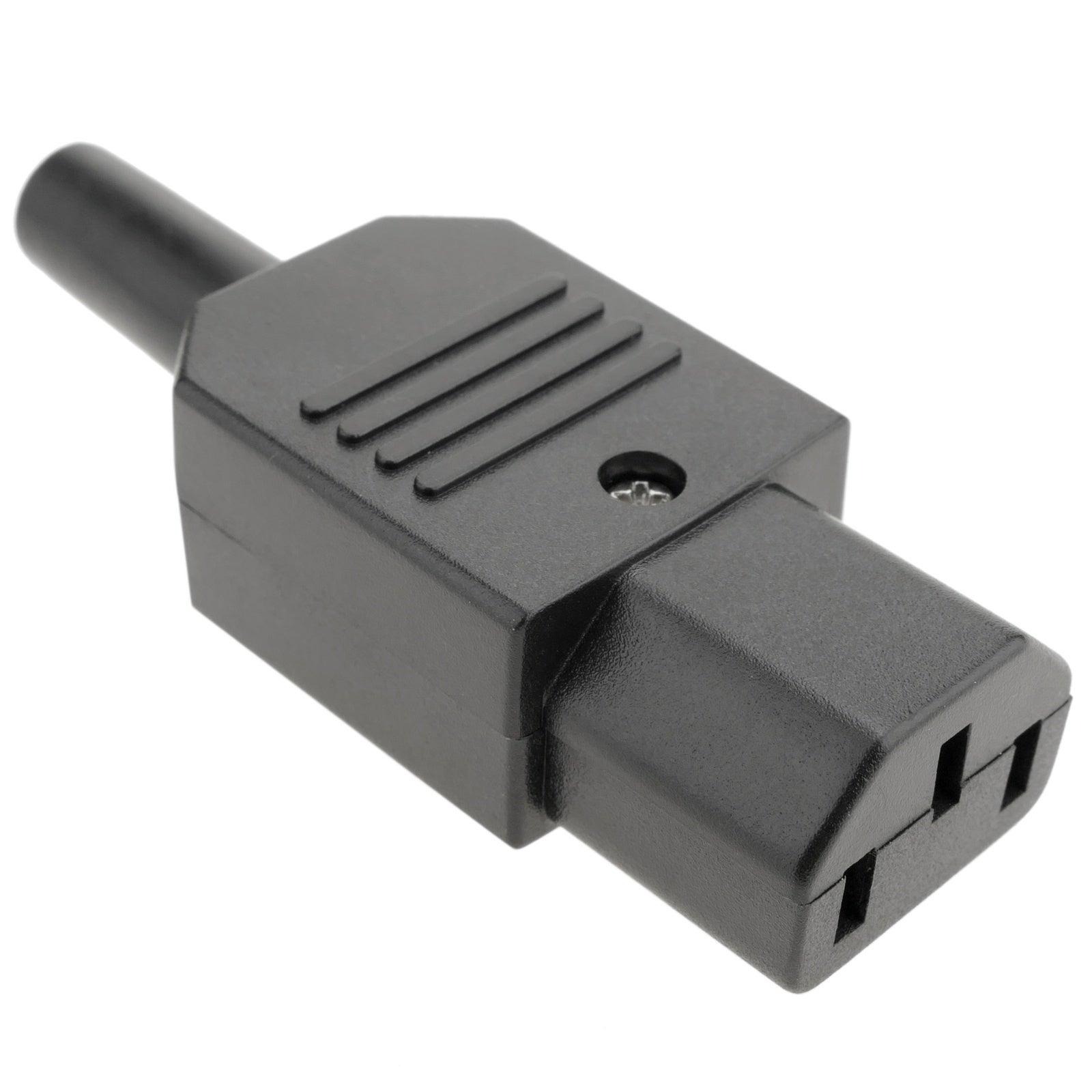

The product shown in the image is an IEC 60320 C13 Female Rewirable Connector, commonly known as a Computer Power Socket Connector or Kettle Lead Connector. It is widely used for power cables of computers, monitors, printers, UPS systems, laboratory equipment, and industrial electronics.
Technical Specifications
Parameter Specification
Connector Type IEC 60320 C13 Female
Gender Female
Number of Pins 3 Pin
Rated Voltage 250V AC
Rated Current 10A
Frequency 50/60 Hz
Contact Resistance ≤10 mΩ
Insulation Resistance ≥100 MΩ
Dielectric Strength 2000V AC for 1 Minute
Operating Temperature -25°C to +65°C
Maximum Pin Temperature 70°C
Housing Material Thermoplastic (UL94 V-2)
Contact Material Brass / Copper Alloy
Terminal Type Screw Terminal
Cable Entry 6–10 mm (Typical)
Mounting Style Cable Mount / Rewirable
Standard IEC 60320 C13
Features
Standard IEC 60320 C13 connector
Rewirable design for easy cable replacement
Built-in strain relief
Heavy-duty thermoplastic housing
Reliable 3-pin connection (Live, Neutral, Earth)
Suitable for industrial and commercial applications
Durable and long service life
Easy screw-terminal wiring
Applications
Desktop Computers
LCD/LED Monitors
UPS Systems
Printers
Medical Equipment
Test & Measurement Instruments
Audio Equipment
Industrial Power Supplies
Networking Equipment
Laboratory Devices
Pin Configuration
Pin Function
L Live
N Neutral
E Earth (Ground)
Approximate Dimensions
Dimension Size
Length 60–70 mm
Width 25–30 mm
Height 20–25 mm
Cable Entry Diameter 6–10 mm
(Dimensions may vary slightly by manufacturer.)
