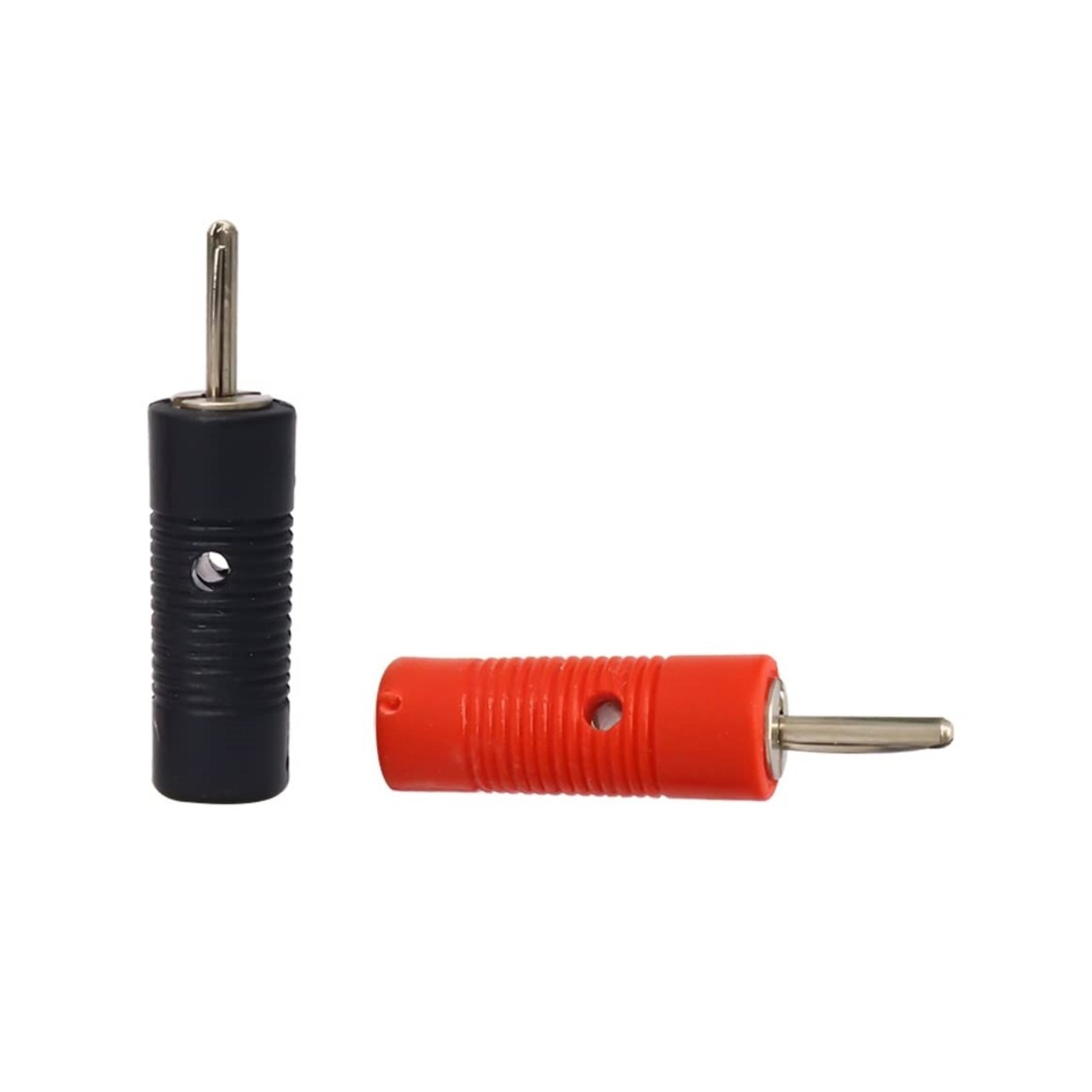

The BTP-2 2mm Banana Plug is a male banana connector designed for use with 2mm banana sockets such as BS-2. The manufacturer listing identifies the BTP-2 as a PRIME series plug rated at 5A/250V AC.
Parameter Specification
Product Name 2mm Banana Plug
Model / Part No. BTP-2
Series BTP-2
Brand PRIME
Connector Type Banana Plug / Male
Plug Diameter 2mm
Rated Current 5A
Rated Voltage 250V AC
Hand-Free Testing Up to 1000V
Body Material Nickel-Plated Brass
Spring Material Nickel-Plated Phosphor Bronze
Insulator Material ABS
Overall Length Approx. 33mm
Connection Type Wire/Solder connection
Standard Colours Red, Black, Green, Blue, Yellow
Typical Available Colours Red & Black
Compatible Socket 2mm Banana Socket / BS-2
Gender Male
Application Electrical & electronic testing
Product Category Banana Plug / Test Connector
The published BTP-2 specification lists a 33mm length, nickel-plated brass body, nickel-plated phosphor-bronze spring and ABS insulator.
Key Features
Compact 2mm banana plug
Strong nickel-plated brass construction
Phosphor-bronze spring for reliable contact
ABS insulated body
Designed for secure connection with 2mm banana sockets
Suitable for test leads and electronic instruments
Available in multiple colours for polarity/circuit identification
Suitable for laboratory and electrical testing applications
Applications
Multimeters and test meters
Laboratory test equipment
DC power supplies
Electronic testing panels
Educational electronics projects
Test leads and measurement equipment
Electrical and instrumentation applications
Product Listing Description
BTP-2 2MM Banana Plug is a compact male banana connector designed for reliable electrical testing and measurement applications. It features a nickel-plated brass body, nickel-plated phosphor-bronze spring and ABS insulation, providing good mechanical strength and electrical contact. The plug has a 2mm diameter, approximately 33mm overall length, and is rated 5A/250V AC, with hand-free testing capability up to 1000V according to the published PRIME specification.
Suggested Switch Mart product title:
BTP-2 2MM Banana Plug – 5A 250V AC, Nickel Plated Brass, ABS Insulated
Parameter Specification
Product Name 2mm Banana Plug
Model / Part No. BTP-2
Series BTP-2
Brand PRIME
Connector Type Banana Plug / Male
Plug Diameter 2mm
Rated Current 5A
Rated Voltage 250V AC
Hand-Free Testing Up to 1000V
Body Material Nickel-Plated Brass
Spring Material Nickel-Plated Phosphor Bronze
Insulator Material ABS
Overall Length Approx. 33mm
Connection Type Wire/Solder connection
Standard Colours Red, Black, Green, Blue, Yellow
Typical Available Colours Red & Black
Compatible Socket 2mm Banana Socket / BS-2
Gender Male
Application Electrical & electronic testing
Product Category Banana Plug / Test Connector
The published BTP-2 specification lists a 33mm length, nickel-plated brass body, nickel-plated phosphor-bronze spring and ABS insulator.
Key Features
Compact 2mm banana plug
Strong nickel-plated brass construction
Phosphor-bronze spring for reliable contact
ABS insulated body
Designed for secure connection with 2mm banana sockets
Suitable for test leads and electronic instruments
Available in multiple colours for polarity/circuit identification
Suitable for laboratory and electrical testing applications
Applications
Multimeters and test meters
Laboratory test equipment
DC power supplies
Electronic testing panels
Educational electronics projects
Test leads and measurement equipment
Electrical and instrumentation applications
Product Listing Description
BTP-2 2MM Banana Plug is a compact male banana connector designed for reliable electrical testing and measurement applications. It features a nickel-plated brass body, nickel-plated phosphor-bronze spring and ABS insulation, providing good mechanical strength and electrical contact. The plug has a 2mm diameter, approximately 33mm overall length, and is rated 5A/250V AC, with hand-free testing capability up to 1000V according to the published PRIME specification.
Suggested Switch Mart product title:
BTP-2 2MM Banana Plug – 5A 250V AC, Nickel Plated Brass, ABS Insulated
