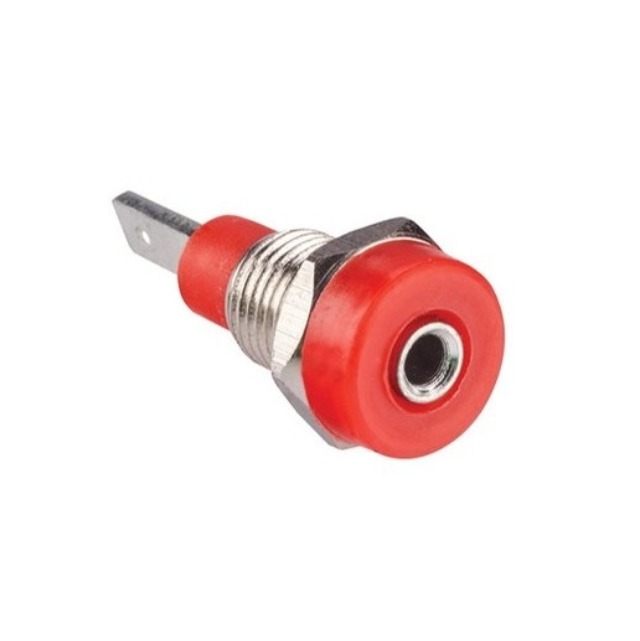

The BS-2 2mm Banana Socket is a female panel-mount connector designed for connecting standard 2mm banana plugs. Specifications vary slightly by manufacturer; the ratings below are based on published BS-2 specifications from Indian suppliers.
Parameter Specification
Product Name 2mm Banana Socket
Model / Part No. BS-2
Connector Type Banana Socket / Female Jack
Socket Size 2mm
Mounting Type Panel Mount
Connection Type Solder Type
Rated Current 5A
Rated Voltage 250V AC
Contact Material Brass / Copper Alloy
Contact Plating Nickel / Tin plated, depending on make
Body Material ABS / Insulating plastic
Insulation Insulated
Contact Resistance Up to 10 mΩ max. for some BS-2 versions
Available Colours Red, Black, Green, Blue, Yellow
Compatible Plug 2mm Male Banana Plug
Terminal Type Solder / panel terminal
Application Test equipment, laboratory instruments, electronic panels, educational kits and electrical testing
Country of Origin India
Product Category Banana Plug & Socket / Electrical Connector
A published BS-2 specification from Prime lists 5A/250V AC, 2mm plug size and five standard colors.
Dimensions
Common 2mm panel-mount versions are approximately 22–24 mm overall length and require about a 6–6.5 mm mounting hole, although dimensions can vary by manufacturer.
Key Features
Compact 2mm female banana socket
Suitable for 2mm banana plugs
Panel-mount construction
Insulated body for electrical protection
Brass conductive contact
Durable and corrosion-resistant plated contact
Available in multiple identification colors
Suitable for solder-wire connection
Useful for electrical and electronic testing applications
Applications
Laboratory testing equipment
Multimeters and test instruments
Electronic project panels
Power supply units
Educational electronics kits
Control and instrumentation panels
Electrical testing and measurement equipment
Product listing title:
BS-2 2MM Banana Socket – Panel Mount, 5A 250V AC, Solder Type
Note: If your BS-2 is a specific Prime / ELCOM / Switch Mart make, the exact dimensions, insulation resistance and breakdown voltage should be taken from that manufacturer's datasheet rather than assumed from another BS-2 version.
