BARRIER TERMINAL BLOCK

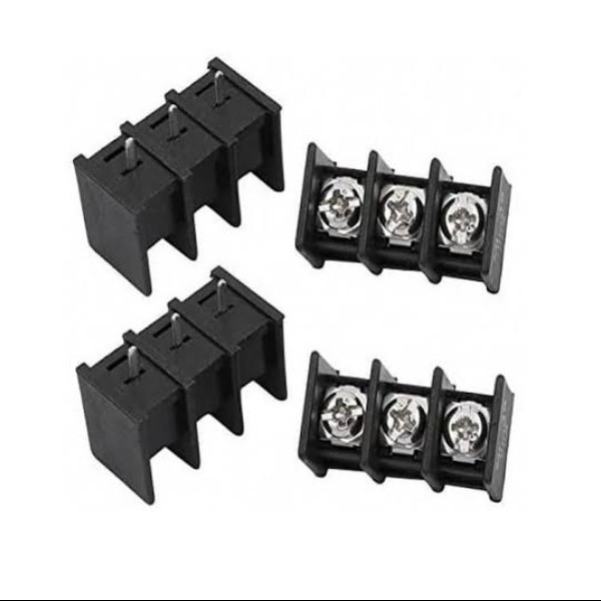

The product shown in the image is a 3-Pole Barrier Terminal Block (Screw Type Terminal Block / Barrier Strip Connector), commonly used for secure power and signal wire connections in industrial control panels, power supplies, machinery, and electrical equipment. 3-Pole Barrier Terminal Block – Full Specification Parameter Specification Product Name 3-Pole Barrier Terminal Block Type Screw Clamp Barrier Terminal Block Number of Poles 3 Pole Mounting Type Panel Mount / Chassis Mount Connection Type Screw Terminal Housing Material Flame-Retardant Thermoplastic (PA66/PBT or PC) Contact Material Brass Screw Material Zinc-Plated Steel Contact Plating Nickel Plated Housing Color Black Terminal Pitch 10–12 mm (depending on model) Rated Voltage Up to 600 VAC Rated Current 15A–35A (model dependent) Wire Size 0.5–10 mm² (AWG 20–8, depending on rating) Tightening Screw M3 or M4 Insulation Resistance ≥100 MΩ at 500 VDC Dielectric Strength 2500–3000 VAC for 1 minute Operating Temperature -40°C to +110°C Flammability Rating UL94 V-0 or UL94 V-2 Mounting Hole Panel Screw Mount RoHS Compliance Yes Typical Dimensions (35A Version) Parameter Size Length 56 mm Width 30 mm Height 19.5 mm Pole Pitch 12 mm Screw Size M4 These dimensions correspond to a common 35A, 3-pole barrier terminal block. Features High-current screw clamp connection Excellent electrical insulation Barrier walls prevent accidental short circuits Strong brass terminals for long service life Easy panel mounting Suitable for stranded and solid wires Corrosion-resistant plated contacts Vibration-resistant screw connection Reusable and maintenance-friendly RoHS compliant Applications Industrial Control Panels Power Distribution Units Power Supplies (SMPS) UPS Systems Battery Chargers Motor Controllers CNC Machines Automation Equipment Electrical Panels Inverters Generator Control Panels HVAC Equipment Lighting Control Systems Package Includes 1 × 3-Pole Barrier Terminal Block Screw terminals pre-installed This specification is suitable for use in a Switch Mart India product listing or catalog. Actual current rating, dimensions, and wire capacity may vary slightly depending on the specific manufacturer and model.
