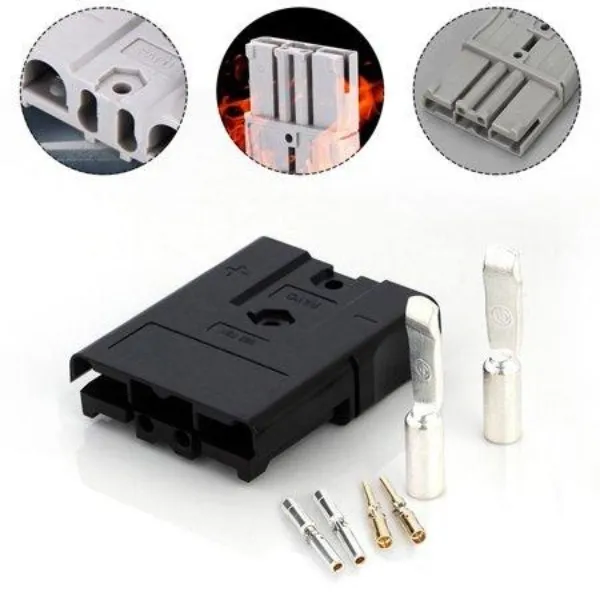

The SB-75 Connector is a heavy-duty, genderless DC power connector designed for high-current applications. It is commonly used in battery systems, solar power, UPS systems, electric vehicles, forklifts, battery chargers, and industrial equipment. The connector provides a reliable, low-resistance connection and allows quick connect/disconnect without concern for male or female orientation.
Technical Specifications
Parameter Specification
Product Name SB-75 Anderson Type Connector
Connector Type 2 Pole (2 Pin)
Rated Current 75 Amps Continuous
Rated Voltage Up to 600V AC/DC
Contact Material Silver-Plated Copper
Housing Material High-Impact Polycarbonate / PBT Blend
Contact Resistance Very Low (<100 µΩ typical)
Insulation Resistance ≥1000 MΩ
Operating Temperature -20°C to +105°C
Mounting Type Cable Mount
Connection Method Crimp Terminal
Connector Design Genderless (mates with identical connector)
Wire Size 16 AWG to 6 AWG (1.3–13.3 mm²)
Color Options Red, Black, Grey, Blue, Yellow (voltage keying)
Mating Cycles Up to 10, 000
Compliance UL Rated, RoHS Compliant
Features
Rated for 75A continuous current
600V AC/DC insulation rating
Genderless design eliminates male/female connector confusion
Silver-plated copper contacts for low resistance and excellent conductivity
Rugged impact-resistant housing
Vibration-resistant connection
Quick connect and disconnect
Color-coded housings help prevent mismatched voltage systems
Long service life with up to 10, 000 mating cycles
Applications
Solar power systems
Battery chargers
UPS and inverter systems
Electric vehicles (EVs)
Forklifts and pallet trucks
Battery banks
Industrial power distribution
Winches
Emergency power systems
Material handling equipment
Package Includes
1 × SB-75 Housing
2 × Silver-Plated Copper Crimp Contacts
