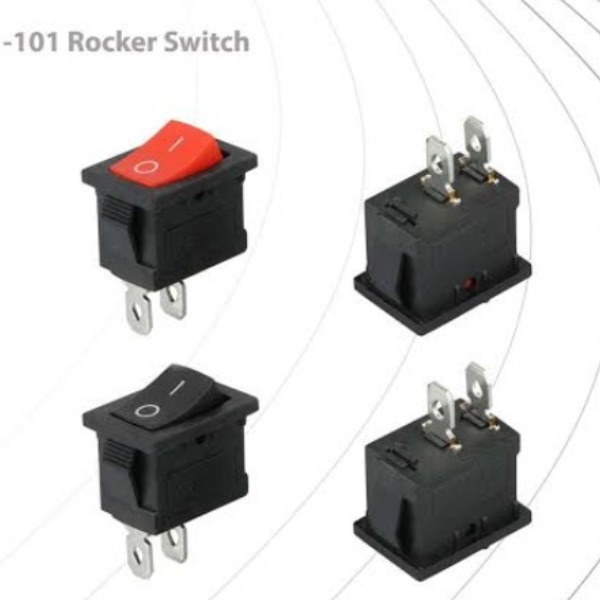

The switch shown is a 2 Pin ON/OFF Rocker Switch, commonly known as a KCD1-101 type boat rocker switch. It is a compact panel-mount switch used for basic ON/OFF control. General Specifications Parameter Specification Product Name 2 Pin Rocker Switch Type Rocker / Boat Switch Model Type KCD1-101 Type Number of Pins 2 Pin Circuit SPST Function ON / OFF Contact Configuration 1NO (Single Pole, Single Throw) Operation Maintained Switch Position ON-OFF Mounting Panel Mount Termination Quick-Connect Blade Terminals Actuator Color Red Housing Color Black Indicator Without Lamp / Non-Illuminated Panel Cutout Approx. 19 × 13 mm Electrical Specifications Parameter Typical Specification Rated Voltage 250 VAC Rated Current 3 A @ 250 VAC Rated Current 6 A @ 125 VAC DC Rating Application dependent Contact Resistance ≤50 mΩ Insulation Resistance ≥100 MΩ Dielectric Strength ≥1500 VAC Electrical Life ≥10, 000 cycles Note: Exact current/voltage ratings can vary between KCD1-101 manufacturers. Verify the rating printed on the particular switch before using it in a high-current application. Mechanical Specifications Parameter Approx. Value Overall Length 21 mm Overall Width 15 mm Overall Height 25 mm Panel Cutout 19 × 13 mm Terminal Type 4.8 mm / 6.3 mm blade, depending on version Mounting Type Snap-in Number of Terminals 2 Material Component Material Housing Nylon / Thermoplastic Rocker Nylon / Polycarbonate Terminals Copper Alloy / Brass Terminal Plating Tin Plated Contact Material Silver Alloy / Copper Alloy Environmental Specifications Parameter Typical Value Operating Temperature -20°C to +85°C Storage Temperature -30°C to +85°C Flame Rating UL94V-2 or better, depending on manufacturer Humidity ≤95% RH, non-condensing Features 2-terminal SPST ON/OFF design Compact boat-style rocker Red rocker actuator Black plastic body Snap-in panel mounting Easy wiring using blade terminals Maintained ON/OFF operation Suitable for AC switching applications Compact and economical design Available in illuminated and non-illuminated versions Terminal Connection Pin 1 → Supply/Input Pin 2 → Load/Output When the rocker is ON, the two terminals are electrically connected. When OFF, the circuit is open. Applications Electrical control panels Power supplies Industrial equipment Inverters Battery-powered equipment Electronic instruments Automotive accessories Home appliances LED lighting DIY electronics Machinery control systems Product Name for Switch Mart 2 Pin KCD1-101 Red Rocker Switch – SPST ON/OFF Non-Illuminated Keywords: 2 Pin Rocker Switch, KCD1-101 Rocker Switch, Boat Rocker Switch, SPST Rocker Switch, ON OFF Rocker Switch, Red Rocker Switch, Panel Mount Rocker Switch, 2 Terminal Rocker Switch.
