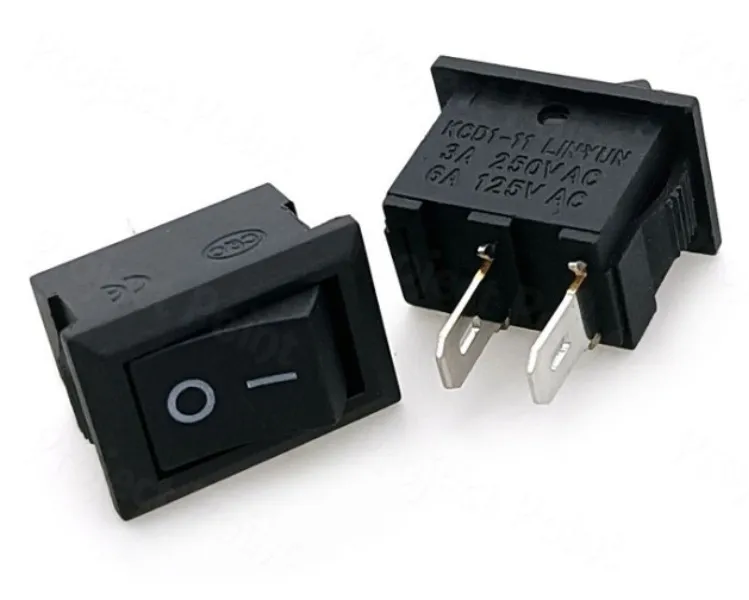

The switch shown in the image is a KCD1-101 Mini Rocker Switch, a 2-pin, SPST ON/OFF, non-illuminated panel-mount rocker switch commonly used in electrical and electronic equipment. The body marking in your image indicates 3A 250VAC / 6A 125VAC.
Technical Specifications
Parameter Specification
Product Name Mini Rocker Switch
Model KCD1-101
Switch Type Rocker Switch
Operation ON / OFF
Contact Configuration SPST (Single Pole Single Throw)
Number of Pins 2 Pin
Illumination Non-Illuminated
Rated Current 3A @ 250VAC, 6A @ 125VAC (as marked on the switch)
Rated Voltage 125VAC / 250VAC
Contact Resistance ≤30 mΩ
Insulation Resistance ≥100 MΩ at 500VDC
Dielectric Strength 1500VAC for 1 minute
Electrical Life ≥10, 000 switching cycles
Mechanical Life Up to 100, 000 operations (typical)
Contact Material Silver Alloy
Terminal Material Tin-plated Brass/Copper
Housing Material Flame-retardant Nylon PA66
Actuator Material Nylon / Polyamide
Operating Temperature -25°C to +85°C
Mounting Type Snap-in Panel Mount
Panel Cut-out Approximately 19.2 × 13 mm
Overall Size Approximately 21 × 15 mm
Terminal Width 4.8 mm Quick Connect
Protection Rating IP40 (typical)
Color Black
Dimensions (Approx.)
Dimension Size
Overall Length 21 mm
Overall Width 15 mm
Overall Height 24 mm
Panel Cut-out 19.2 × 13 mm
Terminal Width 4.8 mm
Terminal Configuration
ON
┌─────────┐
│ I O │
└─────────┘
Pin 1 ───── Input (Live)
Pin 2 ───── Output (Load)
Features
Compact rectangular design
SPST ON/OFF switching
Snap-in panel installation
Silver alloy contacts for reliable conductivity
Low contact resistance
Long mechanical and electrical life
Durable flame-retardant housing
Easy 2-pin wiring
Applications
Power supplies
Home appliances
Battery chargers
UPS systems
Industrial control panels
Electronic equipment
Audio amplifiers
Instrumentation
DIY electronics
Small machinery
Package Includes
1 × KCD1-101 Mini Rocker Switch (2-Pin, Non-Illuminated)
