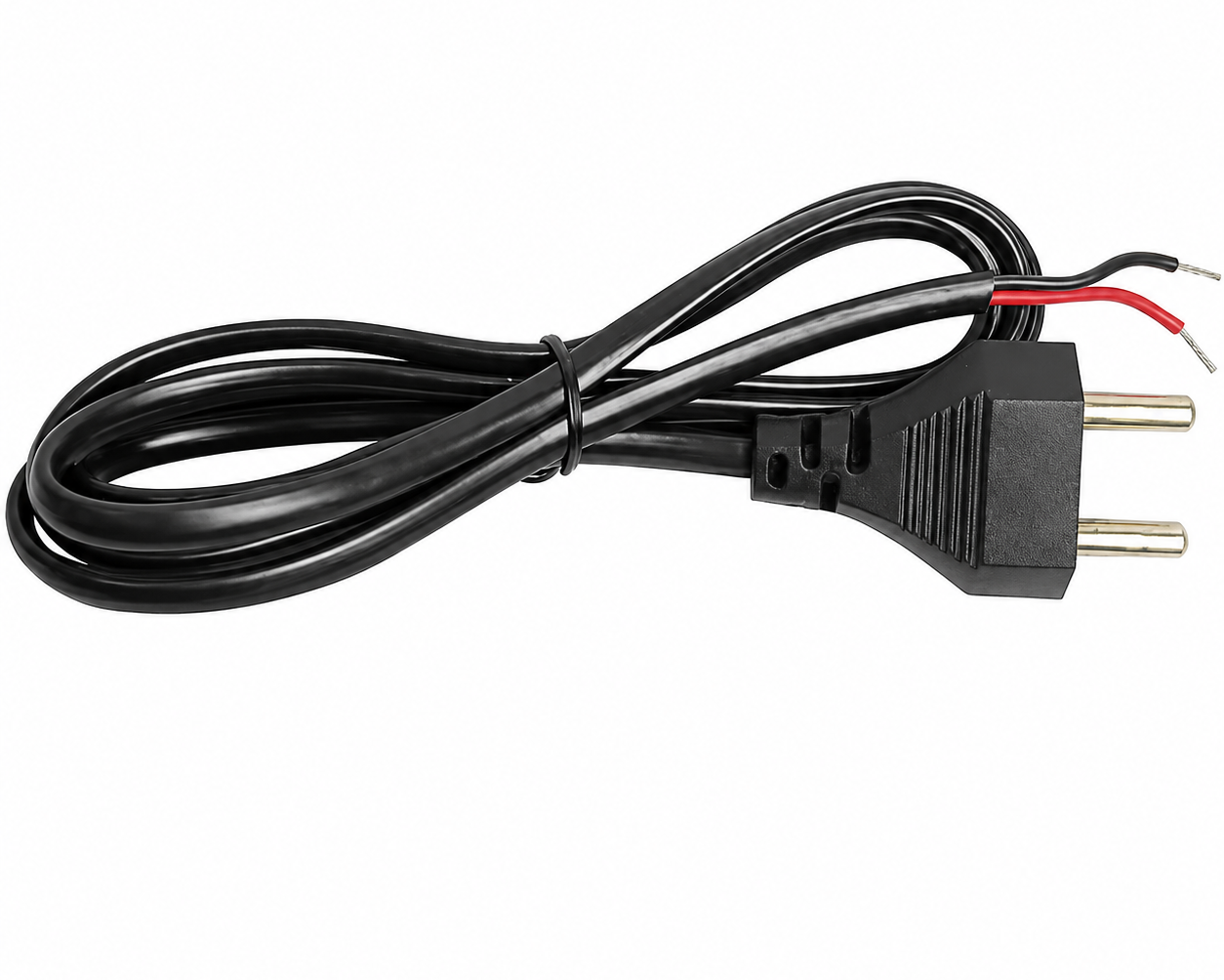

A 2 Pin Main Power Cord is a durable AC power cable designed with a 2-pin plug on one end and stripped open wire leads on the other end for direct connection to electrical devices. It is widely used in home appliances, LED lighting, industrial equipment, electronic products, and DIY electrical applications.
Technical Specifications
Parameter Specification
Product Name 2 Pin Main Power Cord
Type AC Power Cord with Open End
Plug Type 2 Pin Plug
Number of Pins 2
Cable Type Twin Core PVC Insulated Cable
Conductor Material Copper
Insulation Material PVC
Jacket Material PVC
Cable Color Black
Wire End Open End (Stripped)
Rated Voltage 250V AC
Rated Current 2.5A–6A (Depending on Wire Gauge)
Frequency 50/60 Hz
Conductor Size 0.5 mm² / 0.75 mm² (Model Dependent)
Cable Length 1 Meter / 1.5 Meter / 2 Meter (Optional)
Operating Temperature -10°C to +70°C
Plug Housing Material Flame-Retardant PVC
Earthing No (2 Pin)
Standard RoHS Compliant (Model Dependent)
Physical Dimensions
Parameter Approximate Size
Cable Length 1 m (Standard)
Cable Diameter 3.5–5.5 mm
Plug Width 35 mm
Plug Length 55 mm
Stripped Wire Length 8–10 mm
Features
High-quality copper conductor
Durable PVC insulation
Flexible cable for easy installation
Flame-retardant plug body
Low power loss
Excellent electrical conductivity
Easy open-end wire termination
Long service life
Reliable insulation
Lightweight and compact
Suitable for indoor electrical applications
Easy plug-and-play installation
Applications
LED Power Supplies
LED Strip Lights
Small Home Appliances
Electronic Equipment
Audio Equipment
Battery Chargers
DIY Electrical Projects
Industrial Control Panels
Test Equipment
Power Adapters
Electronic Instruments
Laboratory Equipment
Educational Projects
Electrical Characteristics
Property Value
Rated Voltage 250V AC
Rated Frequency 50/60 Hz
Rated Current Up to 6A
Insulation Resistance ≥100 MΩ
Dielectric Strength 1500V AC for 1 Minute
Package Contents
1 × 2 Pin Main Power Cord with Open End
Advantages
High flexibility
Strong mechanical strength
Excellent conductivity
Easy to install
Long-lasting performance
Safe and reliable operation
Cost-effective solution
Suitable for various electronic devices
Common Applications
LED Drivers
SMPS Power Supplies
Electronic Instruments
Home Appliances
DIY Electronics
CCTV Power Supplies
Industrial Equipment
Power Distribution Units
Consumer Electronics
