1. General Information

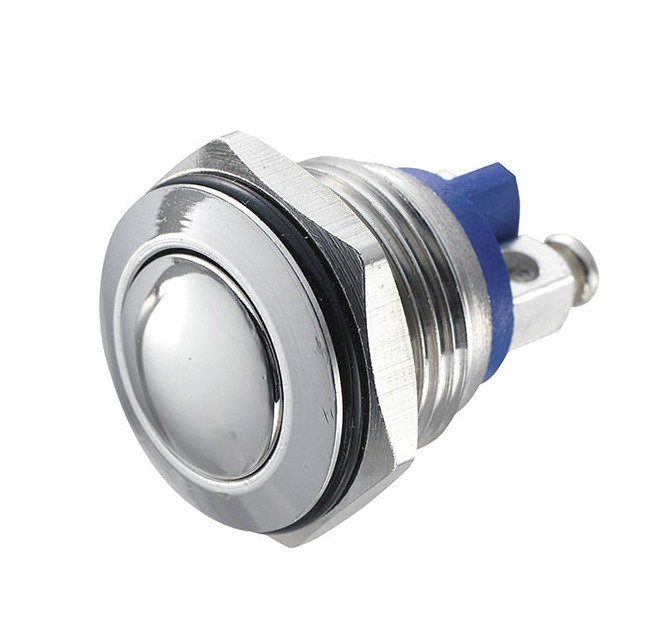

Product Type: Metal Push Button Switch (Anti-vandal type)
Mounting Size: 16mm panel cut-out
Operation Type:
Momentary (push & release)
Latching (push ON / push OFF)
Contact Type: SPST / SPDT (1NO / 1NC options)
Mounting: Panel mount with threaded body & nut
2. Electrical Specifications
Rated Voltage: Up to 250V AC / 36V DC
Rated Current: 2A – 5A (depending on model)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ – 1000MΩ
Dielectric Strength: ~1500V – 2000V
3. Mechanical Specifications
Mechanical Life:
200, 000 to 500, 000 cycles
Electrical Life:
50, 000 to 100, 000 cycles
Operating Force: 2.5N – 4.5N
Travel Distance: ~2–3 mm
4. Material Details
Body Material:
Stainless Steel / Nickel plated brass / Zinc alloy
Actuator (Button): Stainless steel
Contact Material: Silver alloy / Copper alloy
Insulation: High-grade engineering plastic (PA66)
Seal Ring: Silicone rubber (waterproof sealing)
5. Protection & Safety
Waterproof Rating: IP65 – IP67
Impact Resistance: IK08 – IK10 (anti-vandal)
Flame Resistance: High (industrial grade materials)
Certifications: CE, RoHS, UL (varies by model)
6. Temperature Range
Operating Temperature: -25°C to +85°C
Storage Temperature: -40°C to +85°C
7. LED (Optional Feature)
LED Colors: Red, Green, Blue, Yellow, White
LED Voltage Options:
3V / 6V / 12V / 24V / 220V
LED Current: ≤ 20mA
8. Terminal Type
Pin terminals / solder terminals / screw terminals
Compatible with quick-connect (2.8mm spade)
9. Key Features
✔ Waterproof & dustproof design
✔ Strong metal body (anti-rust & anti-vandal)
✔ Long mechanical life
✔ Compact and panel-friendly
✔ Available in illuminated & non-illuminated versions
✔ Reliable ON/OFF switching
10. Applications
Industrial control panels
Automation systems
Power supply units
Automotive dashboards
DIY electronics projects
